HTTP Load Balancer
Objective
This guide provides instructions on how to create an HTTP load balancer in F5® Distributed Cloud Console (Console) using guided configuration. This includes configuring the required objects for the virtual host. To learn more about virtual hosts, see Virtual Host.
Using guided creation for HTTP load balancer, you can create the following types of load balancers:
- HTTP load balancer
- HTTPS load balancer with your own TLS certificate
- HTTPS load balancer with automatic TLS certificate (minted by F5® Distributed Cloud Services)
Using the instructions provided in this guide, you can perform the following:
- Create and advertise an HTTP load balancer
- Create and advertise an HTTPS load balancer with your TLS certificate or with the certificate minted by Distributed Cloud Services
Note: Distributed Cloud Services support automatic certificate generation and management. You can either let Distributed Cloud Services DNS manage your zone (see Create Primary Zone), or you can add the CNAME record to your DNS records. See Automatic Certificate Generation for certificates managed by Distributed Cloud Services.
Prerequisites
The following prerequisites apply:
-
A Distributed Cloud Services Account. If you do not have an account, see Create an Account.
-
A valid DNS domain managed by Distributed Cloud DNS in case you want Distributed Cloud Services to act as domain name server (DNS) or a CNAME entry in your DNS zone file. For instructions on how to set up Distributed Cloud DNS for your domain to Distributed Cloud Services, see Create Primary Zone.
-
A Distributed Cloud Services Customer Edge (CE) site in case of deploying your applications. If you do not have a site, create a site using the instructions provided in the Site Management guides. See the vK8s Deployment guide for deploying your applications on the Distributed Cloud Services network cloud or edge cloud.
Configuration
The following video shows a tutorial for HTTP load balancer creation:
The configuration option to create the HTTP load balancer guides you through the steps for required configuration. This document covers each guided step and explains the required actions to be performed for each step.
Step 1: Log into Console and create new load balancer.
-
Log into Console.
-
Click
Multi-Cloud App Connect
.
Figure: Console Homepage
- Select
Manage
>Load Balancers
>HTTP Load Balancers
.
Figure: Load Balancers
-
Confirm the correct namespace is selected.
-
Click
Add HTTP Load Balancer
.
Step 2: Configure metadata, domains, and load balancer type.
-
In the
Name
field, enter a name for the new load balancer. -
Optionally, select a label and enter a description.
Figure: Load Balancer Form
-
In the
Domains
field, enter a domain name. You can use wildcards to catch prefixes and suffixes. -
Click
Add item
to add more domains, if needed. -
From the
Load Balancer Type
drop-down menu, select an option. The following options are supported:-
Select
HTTP
to create the HTTP load balancer. -
Select
HTTPS with Automatic Certificate
to create the HTTPS load balancer with an automatic TLS certificate. -
Select
HTTPS with Custom Certificate
to create the HTTPS load balancer with your custom TLS certificate.
-
Note: Do not add both wildcard and top level domains (for example,
*.example.com
andexample.com
) if you are using an automatic certificate for different load balancers.
Note: When looking at the
Status
orGlobal Status
for a load balancer,statusObject
is visible only when the certificate is of type automatic certification.
-
If you select
HTTP
, then select whether to have Distributed Cloud Services manage your DNS records withAutomatically Manage DNS Records
. This option requires you to have a primary zone set up in Distributed Cloud DNS. -
If you select
HTTPS with Automatic Certificate
orHTTPS with Custom Certificate
, then optionally, selectHTTP Redirect to HTTPS
andAdd HSTS Header
checkboxes. -
For all load balancer types, use the
HTTP Listen Port Choice
to select between using a single port or a range of ports, and then enter the port number(s). For a range of ports, enter a list of non-overlapping port ranges with a maximum of 64 ports in the list, e.g.443,100-120,8080,9080-9089
. -
If you are using
HTTPS with Automatic Certificate
, use theTLS Security Level
drop-down menu to select the TLS level you want to use. -
If you are using the
HTTPS with Custom Certificate
option:-
Use the
TLS Configuration
drop-down menu to choose betweenTLS Certificates
orInline Certificate (legacy)
options, and then clickConfigure
. -
From the
TLS Security Level
drop-down menu, select the desired level. -
For each certificate you want to add, select
Add Item
from theCertificates
drop-down menu to see theTLS Certificate
form.
Figure: TLS Certificate Form
-
Enter a name and optionally labels and a description.
-
Click
Import from File
to see the sliding import panel. ClickUpload File
and select your file using the system file browser. Then clickImport
.
Note: If you would prefer to paste your certificate in rather than import from file, see Enable TLS on a Load Balancer.
-
From the
OCSP Stapling
choice drop-down menu, select an OCSP stapling choice. -
If you have an intermediate chain, select
Add Item
from theIntermediate Certificate Chain
drop-down menu. Then upload the intermediate chain the same way you uploaded the certificate.
Note: You can add more than one certificate using the
Add Item
option. However, only one certificate per encryption type (such as RSA and EC-DSA) is supported. -
-
If you are using the
HTTPS with Automatic Certificate
option:
Note: If you created a DNS Zone for a domain for a deployed AWS customer edge (CE) site, and advertise that site using a virtual IP address (Internet VIP), an automatic certificate is generated. This is not available on other types of deployed sites.
-
Enable the
Show Advanced Fields
option. -
From the
Mutual TLS
drop-down menu, selectEnable
orDisable
for mutual TLS encryption:-
Copy the CA certificate information into the Box using the
PEM
orBase64
option. -
From the
Verify client certificate with CR
menu, selectCRL
to have the client certificate verified against the CRL, and then select theCRL
. -
From the
Add X-Forwarded-Client-Cert Header
menu, enable the adding of an X-Forwarded-Client-Cert (XFCC) proxy header to send client certificate details to the origin. You can choose to send the entire certificate, a single field, or multiple fields using the following:By
,Hash
,Cert
,Chain
,Subject
,URI
, andDNS
.
-
-
From the
Server Response Header
drop-down menu, select an option for the server response header. The following options are supported:-
Default
: Specifies that the response header name isserver
, and the value isvolt-adc
. -
Modify header value
: Specifies that a custom value be added to the existing server header. This will overwrite existing values, if any, in the server header. -
Append header value
: Specifies that a custom value be added to the server header if no value is present. If there is an existing server header value, this option does not overwrite the value. Enter a header value in theAppend header value
field. -
Do not modify
: Specifies that the existing server header is passed as is. If no server header is present, a new header is not appended.
-
-
From the
Path Normalization
menu, select an option.
Step 3: Configure origin pools.
-
In the
Origins
section, clickAdd Item
to create an origin pool. -
From the
Select Origin Pool Method
menu, select an option for a simple origin pool or a custom cluster:-
Origin Pool
: From theOrigin Pool
drop-down menu, select an origin pool. To create a new origin pool, clickAdd Item
. Follow the instructions at Origin Pools. -
Custom Cluster
: From theCustom Cluster
menu, select the cluster to use.
-
-
In the
Weight
field, set the numeric value. -
In the
Priority
field, set the numeric value. -
Click
Apply
.
Figure: Origin Pool Configuration
Step 3.1: Optionally, configure origin server subset rules.
Origin server subset rules provide the ability to create match conditions on incoming source traffic to the HTTP load balancer using country, ASN, regional edge (RE), IP address, or client label selectors for subset selection of destination (origin servers).
As prerequisites, (1) create a label (key-value pair), (2) in origin pool configuration, add labels to one or more origin servers, (3) and then in the Other Settings
subsection, select Enable Subset Load Balancing
. Add one or more keys to origin server subset classes. Choose a setting for subset fallback policy. The default option is to select any origin server.
-
Enable the
Show Advanced Fields
option. -
Under
Origin Server Subset Rules
, clickConfigure
.
Figure: Origin Server Subset
-
Click
Add Item
. -
In the
Name
field, enter a name for the rule.
Figure: Origin Server Subset Rule Configuration
-
From the
Action
field, clickAdd Label
and select the same label(s) that you assigned to origin servers in the origin pool configuration. -
Optionally, select a country from the
Country Codes List
menu. -
From the
Client Selector Match
menu, select an option to match on label selectors. -
From the
Source IPv4 Match
menu, select an option to match on client IP address. -
From the
Source ASN Match
menu, select an option to match on client ASN. -
In the
Regions Edges
section, clickAdd Item
to select an RE to match traffic to. -
After you finish, click
Apply
.
Step 4: Optionally, configure routes.
-
In the
Routes
section, clickConfigure
. -
Click
Add Item
.
Figure: Optional Routes Configuration
-
From the
Select Type of Route
menu, select an option. -
Simple Route
: matches a path and/or HTTP methods to forward the matching traffic to origin pools configured:-
Select a method for
HTTP Method
. -
Select the type of path match for the
Path Match
field. -
Add a path prefix in the
Prefix
field. You can also configure specific origin pools and/or headers for this using theAdd Item
options in theOrigin Pools
andHeaders
sections. -
From the
Select Host Rewrite Method
menu, select an option to specify how the host header can be modified during forwarding. -
In the
Advanced Options
field, clickConfigure
to configure advanced settings for each route.
-
-
Redirect Route
: matches a path and/or HTTP methods to redirect the matching traffic to another URL:-
Select method for
HTTP Method
and a path for thePath Match
field. -
Add a path prefix in the
Prefix
field. -
Configure the
Redirect Parameters
forProtocol
,Host
,Redirect Path
for redirect URL, andResponse Code
. -
Select an option from the
Query Parameters
drop-down menu.
-
-
Direct Response Route
: matches a path and/or HTTP methods to send the response directly to the matching traffic:-
Select method for
HTTP Method
and a path for thePath Match
field. -
Add a path prefix in the
Prefix
field. -
Click the
Configure
option in theDirect Response
field. Enter a response code, enter response body, and then clickApply
.
-
-
Custom Route Object
: uses an existing custom route object:- Select a route object in the
Reference to Custom Route
drop-down menu. For information on how to create a custom route, see How to setup path-based routing or application load balancing.
- Select a route object in the
-
To configure additional options per route:
-
Under
Advanced Options
, clickConfigure
. -
From the
Hash Policy Choice
menu, select an option to configure. -
Optionally, configure
Origin Servers Subsets
option. -
Under
CSRF Policy
, clickConfigure
. From theAllowed Domains (Source Origin)
menu, select an option. ForSpecified domains
, enter the specific domain name. ClickApply
.
-
-
Click
Apply
to add the route.
Note: You can click
Add Item
to add more routes per your requirements.
- To setup path-based routing, see How to Setup Custom Routing.
Step 5: Optionally, set security configuration.
Step 5.1: Configure WAF and corresponding security features.
You can choose to disable WAF application (default setting) or you can select a WAF that was previously created, configured, and apply it in your load balancer security settings. In addition, you can also create and enable a new WAF and have your load balancer configured to exclude specific WAF rules from processing certain requests.
-
Go to the
Web Application Firewall
section. -
From the
Web Application Firewall (WAF)
drop-down menu, select whether to enable the WAF for this HTTP load balancer.Disable
is the default value. -
If you select
Enable
, use theEnable
drop-down menu to select your WAF to apply to this load balancer.
Figure: Add App Firewall
Note: You can also add App Firewall per route. In the route configuration, for
Simple Route
, go to advanced options configuration, go to security section, and selectApp Firewall
for theWeb Application Firewall (WAF)
field. Select an App Firewall object. By default, the route inherits the App Firewall configured for the load balancer.
-
To add exclusion rules for the WAF, follow the instructions at Create WAF Exclusion Rules.
-
Select
Configure
in theData Guard Rules
section and follow the instructions listed in Configure Data Guard to set data guard rules. -
Select
Configure
for theCross-Site Request Forgery Protection
option. Specify allowed domains in theAllowed Domains (Source Origin)
field in the CSRF protection page, and selectApply
. You can either configure to allow all load balancer domains or set specific domains to the allow list.
Note: You can verify the CSRF mitigation in the load balancer security monitoring page. The CSRF mitigation event is displayed as a
Service Policy
event. Expand the security event's JSON view. Thesec_event_name
field with valueCSRF Policy Violation
indicates that CSRF mitigation is active. For more information on load balancer monitoring, see Monitor HTTP Load Balancer.
-
To configure the settings for GraphQL inspection, perform the following:
-
Under the
GraphQL Inspection
section, clickConfigure
. -
Click
Add Item
. -
In the
Name
field, enter a name for this rule. -
From the
Domain
drop-down menu, select an option that corresponds to your domain setting. Default value isAny Domain
. You can choose an option match byExact Value
orSuffix Value
. -
From the
Path
drop-down menu, select an option for the location of your GraphQL server endpoint. Default value is/graphql
. -
From the
HTTP Method
drop-down menu, select an option that specifies the method used to access the GraphQL endpoint server. -
In the
GraphQL Settings
section, perform the following:-
From the
Maximum Total Length
menu, enter a value to specify the maximum total length in bytes for a query. -
From the
Maximum Structure Depth
menu, enter a value to specify the maximum depth for a query. -
From the
Maximum Batched Queries
menu, enter a value to specify the maximum number of single batch queries. -
From the
Introspection Queries
menu, select whether to enable introspection of GraphQL schema.
-
-
Click
Apply
to save settings. -
Click
Apply
to apply settings to load balancer configuration.
-
-
Optionally, in the
Cookie Protection
field, clickConfigure
to add attributes to an HTTP Response cookie that is sent to the client:-
Click
Add Item
. -
In the
Cookie Name
field, enter a name for this cookie.
-
Note: Wildcards and regular expressions (regex) are not supported. You must use the exact cookie name.
-
From the
SameSite
menu, select if or how the new cookie is sent with same-site and cross-site requests. You can select from the following:Ignore
Strict
Lax
None
-
From the
Secure
menu, select whether this new cookie is sent only over an HTTPS encrypted connection to the server. Default option isIgnore
. -
From the
HttpOnly
menu, select whether this new cookie is inaccessible to JavaScript Document.cookie API. Default option isIgnore
. SelectAdd
to ensure the cookie is inaccessible. -
Select
Enable
for theCookie Tampering Protection
field to enable cookie tampering protection. This prevents attackers from modifying the values of session cookies. -
Click
Apply
to save settings. -
Click
Apply
to apply settings to load balancer configuration.
Step 5.2: Configure Bot Protection.
Note: You need to have
Bot Defense
enabled in your tenant as a service prior to configuring it for your load balancer.
-
Go to the
Bot Protection
section. From theBot Defense
menu, select an option to configure bot defense. The following options are available:-
Disable
: No bot defense configuration is applied to the load balancer. -
Enable
: Specifies a bot defense configuration for you to apply to the load balancer. Follow the instructions listed in the Configure Bot Defense guide to set Bot defense protection for your load balancer.
-
Step 5.3: Configure API protection.
Go to API Protection
section and do the following:
-
From the
API Definition
menu, select whether to use an API definition. The default value isDisable
, meaning an API definition is not used for this load balancer. -
If you select
Enable
:-
From the
API Definition
menu, select the API definition. -
To create a new definition, click
Add item
.
-
Figure: Enable API Definition
-
From the
Validation
menu, select an option to perform OpenAPI specification validation. Following are the options:-
Disabled
: Default option. No validation is performed. -
All Endpoints
: Validate all endpoints listed in the OpenAPI specification file. Any other endpoints not listed will act according toFall Through Mode
. -
Custom List
: Define API groups, base path, or API endpoints and their validation modes. Any other endpoints not listed will act according toFall Through Mode
.
-
Figure: API Validation Options
Note: OpenAPI Validation is a feature that ensures API traffic complies with the specified schema and can block or report non-compliant traffic. Validation can be configured on a per-endpoint, per-group, or per-base-path basis. The
Fall Through Mode
allows for identifying and handling Shadow APIs by either blocking, reporting, or allowing them. Allowed IPs list can be created to pass OpenAPI Validation by specific IP addresses.
-
From the
OpenAPI Validation Processing Mode
menu, select whether toValidate
orSkip
. -
From the
Validation Enforcement Type
menu, select an option to specify the type of enforcement. -
From the
Request Validation Properties
menu, select one or multiple options from the following:-
Query Parameters
: The incoming requests are validated against the query parameters specified in the API definition. -
Path Parameters
: The incoming requests are validated against the path parameters specified in the API definition. -
Content-type
: The incoming requests are validated against the content-types specified in the API definition. -
Cookie Parameters
: The incoming requests are validated against the cookie parameters specified in the API definition. -
HTTP Headers
: The incoming requests are validated against the HTTP headers specified in the API definition. -
HTTP Body
: The incoming requests are validated against the HTTP body specified in the API definition.
-
Figure: Request Validation Properties
-
From the
Fall Through Mode
menu, select an action for every request that targets endpoints which are not in validation list. -
Select
Configure
in theAPI Protection Rules
field. See the Configure API Protection Rules guide for more instructions. -
Under
JWT Validation
, clickConfigure
. -
From the
Target
menu, select whether to perform validation on all endpoints, specific API groups, or a specific path. -
Target location(Bearer)
will look for the JWT token in the Authorization HTTP header with Bearer authentication scheme. -
From the
Action
menu, select whether to block or report if the JWT is not valid. See the following options:-
Report action: In monitoring mode, the request is allowed to pass through, and the security event is logged.
-
Block action: The request will be blocked, a 401 Unauthorized error will be returned, and the security event is logged.
-
-

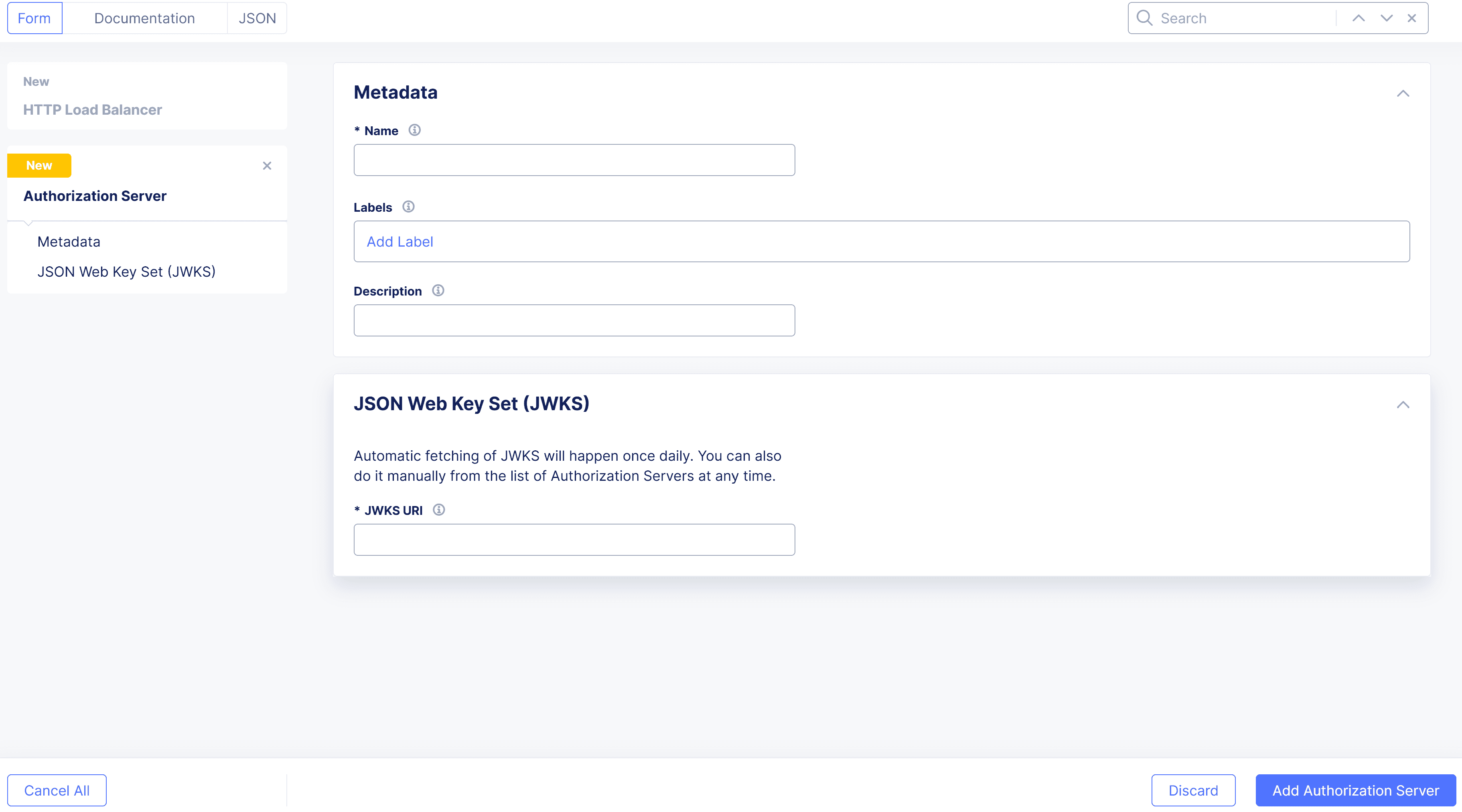

Under
JSON Web Key Set (JWKS)
, clickConfigure
. -
In the text box, copy and paste the JSON Web Key Set (JWKS) used for authorization with the server. JWKS should be in JSON format.
-
Click
Apply
. -
In the
Reserved Claims Validation
section, perform the following:-
From the
Issuer (iss)
menu, select whether to match exactly the issuer’s reserved claim, or to disable this functionality. If you choose to match exactly, provide the exact match value in the corresponding field. -
From the
Audience (aud)
menu, select whether to match exactly the JWT pre-configured value, or to disable this functionality. If you choose to match exactly, provide the exact match value in the corresponding field. You can add more than one value to match for usingAdd Item
. -
From the
Validation Period
menu, selectEnable
(default value) orDisable
. Enable selection will validate the JWT expiration and not before (nbf
) values (if present in the request token). Disable selection will not perform validation against these fields. After you finish with configuration, clickApply
.
-
-
In the
Mandatory Claims
section, perform the following:- Click
Add Item
. Enter the name of the claim. It must match the claim already present in the payload, in the JWT. After you finish with configuration, clickApply
. If you need to delete a claim, click...
and then clickDelete
.
- Click
-
From the
API Discovery
menu, selectEnable
to enable API discovery. -
From the
Purge Duration for Inactive Discovered APIs
menu, enter a number to represent the number of days worth of inactive Discovered APIs to purge. -
To manage rules for sensitive data detection, click
Configure
and perform the following:-
To disable specific data types from detection, click
Add Item
under theDisabled Built-In Sensitive Data Types
section. Then select the data type from the menu list. You can select more than one option. -
To define custom rules for data types to detect, click
Add Item
under theDefined Custom Sensitive Data Types
section: -
Enter a name for this new custom rule.
-
From the
Type
menu, enter a value for the type of sensitive data. -
From the
Rule's Target
menu, select if this rule applies to all detected endpoints or a specific endpoint. If specific only, select theAPI Endpoint
andMethods
. -
From the
Section
menu, select where to apply the rule during the search process. You can choose the default value to search all requests and responses header sections, only request, only responses, or a custom search. For custom, select your options to search from the header sections. You can choose more than one option from theCustom Sections
menu. -
From the
Pattern Choice
menu, select how to search for the sensitive data. You can search byKey Pattern
,Value Pattern
, orKey-Value Pattern
. For each of these options, you can search by exact value or using regular expressions (regex) using the menu options provided. -
Click
Apply
to complete rule creation. -
Click
Apply
to add the new rule to the configuration.
-
Note: For more information, see Import Swagger to Define and Control API Groups.
Step 5.4: Configure DoS Protection.
-
From the
L7 DDoS Auto Mitigation
menu, select an option:-
Default
: This option blocks traffic from suspicious sources. No JavaScript challenge is returned. -
Block
: This option blocks traffic from suspicious sources. No JavaScript challenge is returned. -
JavaScript Challenge
: This option serves a JavaScript challenge to all traffic from suspicious sources. ClickView Configuration
to change the default settings and message for the JavaScript challenge.
-
-
Under
DDoS Mitigation Rules
, selectConfigure
to open the rules list page. UseAdd Item
to add a rule:-
In the
DDoS Mitigation Rule
page, set a name for the rule. -
Select a choice for the
Mitigation Choice
menu. The mitigation choice can be either a list of IP addresses or combination of ASN, Region, and TLS Fingerprinting. -
Click
Apply
to add the rule to the list of rules. -
Click
Apply
to add the rules list to the DDoS protection configuration.
-
-
From the
Slow DDoS Mitigation
menu, select an option:- For the
Custom
option, enterRequest Headers Timeout
andTotal Request Timeout
values.
- For the
Note: See the
Explore Security Monitoring
section in the Monitor HTTP Load balancer guide to learn more about observing and reacting to an active DDoS attack.
Step 5.5: Configure Client-Side Defense.
Ensure that this service is enabled for your tenant. See Client-Side Defense for more information and configuration instructions.
Step 5.6: Configure Service Policies.
Go to Common Security Controls
section and perform the following:
Figure: Service Policy Configuration
-
From the
Service Policies
menu, select an option to apply the service policy. The following options are available:-
Apply Namespace Service Policies
: This option applies the service policy to an entire namespace. -
Do Not Apply Service Policies
: This option does not apply any service policy. -
Apply Specified Service Policies
: This option applies a service policy to a specified load balancer, not the entire namespace.
-
-
To apply a specific service policy, select
Apply Specified Service Policies
, and perform the following:- Click
Configure
.
- Click
Figure: Apply Specific Service Policy
- From the
Policies
menu, select a service policy, and then clickApply
.
Figure: Select Specific Service Policy
Step 5.7: Configure IP Reputation service.
The IP reputation service analyzes IP threats and publishes a dynamic data set of millions of high-risk IP addresses, to protect users from inbound traffic from malicious IPs. IP threat categories include Spam Sources, Windows Exploits, Web Attacks, BotNets, Scanners, Denial of Service, Reputation, Phishing, Proxy, Mobile Threats, and TOR Proxy.
For more information, see Deny Malicious IPs Using IP Threat Categories.
Step 5.8: Configure Threat Mesh.
Threat Mesh provides F5 Distributed Cloud customers with an additional layer of protection against web application attacks. Threat Mesh leverages cross-customer correlation (i.e. correlation of client attacks across different customers) to identify malicious intent of a client. Whenever a client is flagged due to a malicious intent by our WAAP decisions engines, that client will be added to the ThreatDB.
Enabling Threat Mesh
means that requests coming into an application from an IP that is in the ThreatDB will be automatically blocked by the load balancer.
Requests that are blocked due to Threat Mesh
can be seen and evaluated in the Web App & API Protection
service on the Overview
> Security
> Security Analytics
tab for a specific load balancer and the Multi-Cloud App Connect
service on the Overview
> Applications
> Security Analytics
tab for a specific load balancer. Blocked requests will show as a Service Policy
violation in the Event Type
column with Threat Mesh
in the Threat Name
column. For more information, see Load Balancer Security Monitoring in the Security Analytics
section.
From the Threat Mesh
drop-down menu, select the Enable
or Disable
for the feature.
Step 5.9: Configure User Identification.
Select a user identifier for rate limiting and malicious user mitigation.
-
From the
User Identifier
drop-down menu, select the method for user identification:-
Select
Client IP Address
to use the user's IP address. -
Select
User Identification Policy
to use the object to evaluate the identity. To create a new user ID, clickAdd item
from theUser Identification Policy
menu.
-
Figure: User ID Policy
Note: For more information, see Configure Rate Limiting per User.
Step 5.10: Configure Malicious User Detection.
Malicious User Detection performs user behavior analysis and assigns a risk score and threat level of low, medium or high based on the suspicious activity of the user. The risk score of the user is decayed over time, if no further suspicious activity is noticed. The feature can be configured also via external app_type and labeling this HTTP Load Balancer. In this case, the external app_type configuration overrides the internally disabled feature. Enabling the feature internally is allowed only when there is no labeling to an external app_type.
From the Malicious User Detection
drop-down menu, select Enable
.
Step 5.11: Configure Malicious User Mitigation And Challenges.
-
In the
Common Security Controls
section, enable theShow Advanced Fields
option. -
From the
Malicious User Mitigation And Challenges
drop-down menu, selectEnable
. This option enables you to configure a challenge for users detected as malicious.
Note: For the
JavaScript Challenge
,Captcha Challenge
, andPolicy Based Challenge
options, you can enable a challenge for all users and/or requests matching specific conditions. For any of these options, clickView Configuration
to create that challenge for users/requests that meet specific criteria.
-
From the
Malicious User Mitigation Settings
menu, select an option for malicious users at different threat levels:-
Default
: Applies low, medium, and high levels. -
Custom
: Defines different levels and actions to take. Select an option from theCustom
menu. Or clickAdd Item
to create a custom option.
-
-
From the
JavaScript Challenge Parameters
menu, select the type of JavaScript challenge to enable:-
JavaScript Challenge Parameters
: This option enables you to configure a custom JavaScript challenge for this load balancer. ClickConfigure
. Set the delay value, cookie expiration value, and custom message to use. After you finish, clickApply
. For more information, see Configure JavaScript Challenge. -
Use Default Parameters
: This option sets the default challenge with no customization.
-
-
From the
Captcha Challenge Parameters
menu, select the type of captcha challenge to enable:-
Use Default Parameters
: This option takes the default settings and applies them. -
Captcha Challenge Parameters
: This option enables you to define the challenge parameters. ClickConfigure
. Set the cookie expiration value and the custom message to use. After you finish, clickApply
.
-
Policy Based Challenge
-
If you selected
Policy Based Challenge
, perform the following:-
Click
View Configuration
. -
Configure the JavaScript, captcha, and malicious user settings.
-
Select a challenge type.
-
-
In the
Rules
section:-
Click
Configure
. -
Click
Add Item
. -
Enter a
Name
value and an optional description. -
In the
Challenge Rule Specification
field, selectView Configuration
. -
From the
Select Challenge Action Type
drop-down menu, select the challenge action to take.Disable challenge
is the default setting. The two options includeEnable javascript challenge
andEnable captcha challenge
. -
From the
Source IP Match
drop-down menu, select the source IP to match the requests. The options include:-
Any Source IP
: This option enables any source IP to match requests. -
IP Prefix List
: This option provides a list of prefix values. You must provide a list of IP prefixes. -
IP Prefix Sets
: This option provides a list of references to IP prefix set objects. You must create the prefix set.
-
-
From the
Source ASN Match
drop-down menu, select an option for the origin Autonomous System Number (ASN) to match requests:-
Any Source ASN
: This option matches any source ASN. -
ASN List
: This option provides a list of ASN values to match requests. You must enter the ASN values. -
BGP ASN Sets
: This option provides a list of references for Border Gateway Protocol (BGP) ASN objects to match requests. You must create the ASN set.
-
-
From the
Client Selection
drop-down menu, select how the clients will match the challenge rules. The options include:-
Any Client
: This option is for all clients to match the challenge rules. -
Group of Clients by Label Selector
: This option provides a label selector for the set of clients. You must select the expression from the list.
-
-
To configure the TLS fingerprint matcher, select
Configure
:-
From the
TLS fingerprint classes
drop-down menu, select a class. -
Optionally, you can add an exact value or exclude a value with
Add item
. -
Click
Apply
. -
Optionally, you can set the parameters for the request matching from the
Request Match
section, and you can set an optionalExpiration Timestamp
from theAdvanced Match
section. -
Click
Apply
.
-
-
Click
Apply
.
-
-
Click
Apply
. -
Click
Apply
.
Step 5.12: Configure Rate Limiting.
Rate Limiting allows you to control the rate of requests sent to your origin servers and protect against API traffic surge and denial of services attacks.
-
To configure rate limiting, select an option from the list:
-
Disable
: Default option. No rate limiting enabled for this load balancer. -
API Rate Limit
: Set rate limiting for specific API endpoints. -
Custom Rate Limiting Parameters
: Allows you to set custom parameters to rate limit.
-
Note: For detailed instruction to set up rate limiting, see Configure API Rate Limiting.
Step 5.13: Configure Trusted Client Rules.
These rules define specific clients for which WAF processing and Bot Defense will be skipped. Add rules to allow trusted clients based on the match conditions configured. You can skip WAF, skip bot processing, or both. The match conditions include IP prefix, AS number, and HTTP headers to identify specific clients.
-
To configure the
Trusted Client Rules
option:-
Click
Configure
, and then clickAdd Item
. -
Complete the configuration process to add rules to allow trusted clients and to prevent the WAF from applying the block rules you previously configured.
-
Click
Apply
. -
Select the newly created rules option and then click
Apply
.
-
Step 5.14: Configure Client Blocking Rules.
You can choose match condition rules, such as IP prefix, AS number, and HTTP headers to identify specific clients to block from accessing your applications.
-
To configure the
Client Blocking Rules
option:-
Click
Configure
, and then clickAdd Item
. -
Complete the configuration process to add rules to block specific clients from making requests.
-
Click
Apply
. -
Select the newly created rules option, and then click
Apply
.
-
Step 5.15: Configure CORS Policy.
The Cross-Origin Resource Sharing (CORS) policy is an HTTP-header based mechanism that allows a server to indicate any origins (domain, scheme, or port) other than its own from which a browser should permit loading resources.
-
In the
CORS Policy
field, clickConfigure
. -
To enable a specific origin server, click
Add item
under theAllow Origin
field. -
To enable origin servers by regex, click
Add item
under theAllow Origin Regex
field. -
In the
Allow Methods
field, enter information to be used for theaccess-control-allow-methods
header. -
In the
Allow Headers
field, enter information to be used for theaccess-control-allow-headers
header. -
In the
Expose Headers
field, enter information to be used for theaccess-control-expose-headers
header.
Figure: CORS Policy
-
In the
Maximum Age
field, enter information in seconds to cache the headers. -
After you finish, click
Apply
.
Step 6: Optionally, set other settings.
In the Other Settings
section, perform additional configuration.
Step 6.1: Configure VIP advertisement.
From the VIP Advertisement
drop-down menu, select from one of the options available:
-
Select
Internet
to advertise the default VIP on the public network. -
Select
Internet (Specified VIP)
and enter an IP address in thePublic IP
field to advertise that IP as VIP on a public network. -
Select
Custom
. ClickConfigure
in theAdvertise Custom
field, and then clickAdd Item
for each site you want to advertise. Perform the configuration per the following guidelines for each site:-
From the
Select Where to Advertise
menu, select an option for where a load balancer should be advertised.-
Choose
Site
:- From the
Network
drop-down menu, choose a network type to be used on the site. - Select a
Site Reference
object from the drop-down menu. - Optionally enable the
Show Advanced Fields
option and enter an IPv4 and/or an IPv6 to be used as the VIP on the site.
- From the
-
Choose
Virtual Site
:- From the
Network
drop-down menu, choose a network type to be used on the site. - Select a
Site Reference
object from the drop-down menu.
- From the
-
Choose
vK8s Service Network on RE
:- Select
RE
orVirtual Site Reference
from the drop-down menu. - Select a reference (RE or virtual site) from the associated
Reference
drop-down menu.
- Select
-
Choose
Virtual Network
:- Select a network reference from the
Network
drop-down menu. - Select
Default V4 VIP
orSpecific V4 VIP
from theSelect V4 VIP
drop-down menu. If you select a specific one, then enter the specific V4 VIP. - Select
Default V6 VIP
orSpecific V4 VIP
from theSelect V6 VIP
drop-down menu. If you select a specific one, then enter the specific V6 VIP.
- Select a network reference from the
-
Choose
Segment on Site
:- Select a segment from the
Segment
drop-down menu. - Select a site from the
Site
drop-down menu. - Enter the IPv4 address of the VIP on the site.
- Enter the IPv6 address of the VIP on the site.
- Select a segment from the
-
Choose
Segment on Virtual Site
:- Select a segment from the
Segment
drop-down menu. - Select a virtual site from the
Virtual Site Reference
drop-down menu. - Enter the IPv4 address of the VIP on the virtual site.
- Enter the IPv6 address of the VIP on the virtual site.
- Select a segment from the
-
Choose
Segment on Cloud Edge
:- Select a segment from the
Segment
drop-down menu. - Select a cloud edge from the
Cloud Edge
drop-down menu. - Enter the IPv4 address of the VIP on the cloud edge.
- Enter the IPv6 address of the VIP on the cloud edge.
- Select a segment from the
-
-
Configure a TCP listener port or select a default option for the
TCP Listen Port Choice
field. The default option sets port 80 for the HTTP load balancer and 443 for the HTTPS load balancer. -
Click
Apply
to save the site to advertise to the list. Then clickApply
to save the list of sites to advertise.
-
-
Select
Do Not Advertise
to disable VIP advertisement.
Note: If you have enabled Internet VIP on the AWS cloud site to allow clients to access Load Balancer VIP directly from the internet, set the
VIP Advertisement
selection toCustom
, and then configure the custom VIP advertisement to advertise on aSite
orVirtual Site
withSite Network
set to eitherOutside Network with internet VIP
orInside and Outside Network with internet VIP
. For more information, see Create AWS Site.
Note: The following ports are not supported for advertising on a Distributed Cloud Services site:
- K8s node port range 28000-32767
- Distributed Cloud Services port range 65000-65535
- 10249
- 10250
- 10251
- 10252
- 10256
- 10257
- 10259
- 1067
- 18091
- 18092
- 18093
- 18095
- 22
- 22222
- 2379
- 23790
- 23791
- 2380
- 23801
- 23802
- 323
- 4500
- 500
- 53
- 5355
- 6443
- 68
- 8005
- 8007
- 8087
- 8443
- 8444
- 8505
- 8507
- 9007
- 9090
- 9153
- 9999
Step 6.2: Configure load balancer control and requests.
-
From the
Load Balancing Algorithm
menu, set how the HTTP/HTTPS requests are load balanced. The options include:-
Round Robin
: This option sends requests to all eligible servers in a round robin fashion. -
Least Active Request
: This option sends requests to an origin server that has least active requests set. -
Random
: This option sends requests to all origin servers randomly. -
Source IP Stickiness
: This option sends requests to all origin servers using the hash value of the source IP. -
Cookie Based Stickiness
: This option sends requests to all origin servers using the hash value of the cookie. The cookie can be passive or generated. The consistent hashing algorithm, ring hash, is used to select the origin server. Requires you to further configure the parameters. -
Ring Hash Policy
: This option sends requests to all origin servers using the hash value of the request. Requires you to further configure the parameters.
-
Figure: Load Balancer Control
-
If you select
Cookie Based Stickiness
:-
In the
Name
field, enter a name for the cookie. -
Optionally, set a TTL value in milliseconds and set a path name value.
-
-
If you select
Ring Hash Policy
:-
Click
Configure
to specify a list of hash policies to use. -
Click
Add Item
. -
From the
Hash Policy Specifier
drop-down menu, select what to apply the hash policy to. The options include:-
Cookie
: Hash policies are applied to a cookie. -
Header Name
: Hash policies are applied to the name of key of the request header used to obtain the hash key. -
Source IP
: Hash policies are applied to the source IP address.
-
-
In the
Name
field, enter a name for the cookie that is used to obtain the hash key. -
To apply the hash policy as a terminal policy, select the
Terminal
option. -
Click
Apply
. -
Select the newly created hash policy, and then click
Apply
.
-
Step 6.3: Configure trusted client IP headers.
- Select the
Enable
from theTrusted Client IP Headers
drop-down menu. - Use
Add Item
button to add one or more headers. The headers are processed in the numerical order they are added, as shown on the page.
When trusted client headers are enabled, system uses real client IP address as the source IP, instead of the proxy's IP address. The following apply when configuring trusted client IP headers:
- When multiple headers are configured, F5 Distributed Cloud platform follows top to bottom precedence. This means initially first header is considered and system checks for its availability in the request. If not present in the request, system proceeds to check for the second header, and so on, until one of the listed headers is found.
- When none of the configured headers exists, or the value of the configured header is not an IP address, then the source IP of the packet is used.
- When multiple IP addresses are available in header value, system reads the rightmost IP address, and considers it as real Client IP address. However, when using the
X-Forwarded-For
header, and if multiple IPs are available in value, the system reads the rightmost-1 IP address, and considers it as real client IP address.
Note: See Overview of Trusted Client IP Headers in F5 Distributed Cloud Platform for more information.
Step 6.4: Configure additional settings.
- Select the
Add Location
checkbox to specify the regional edge (RE) site name in the header responses.
Figure: Enable RE Site Header Responses
-
Click
Configure
in theMore Options
field and perform the configuration per the following guidelines:-
In the
Header Options
section, clickAdd Item
and add details in each of the request headers and response headers fields to specify add and remove headers accordingly. -
In the
Configure Error Response Options
section, clickConfigure
to customize error responses. -
In the
Miscellaneous Options
section, clickConfigure
. Complete the configuration options.
-
-
Click
Apply
.
Step 7: Complete creating the load balancer.
Click Save and Exit
.
Step 8: Verify the load balancer status.
Note: If the load balancer is of type
HTTP
, then it is reachable by configured domains as well as automatically generated CNAME.
Distributed Cloud DNS Managed Domain:
- Wait for the
DNS Info
andCertificate status
to display theVIRTUAL_HOST_READY
andCertificate status
Valid
values.
Figure: Load Balancer Created
- Verify that the requests to your virtual host domain are processed and load balanced between the configured origin servers.
Note: The
Certificate expiration date
column displays the expiration date for the certificates. Certificates managed by F5 Distributed Cloud Services are issued for 90 days and auto-renewed after 75 days from the date of issuance.
Domain with other DNS management:
-
Verify that the
Certificate status
field showsDomain Challenge Pending
. -
Click
>
to view the load balancer information in JSON format. -
Verify that ACME challenge record exists under
get_spec
>auto_cert_info
>dns_records
field in the JSON. The record name starts with_acme-challenge
and the value is the name of the TXT record created by Distributed Cloud Services. -
Create a CNAME record with the obtained ACME challenge name and value in your DNS server.
-
Verify that the
Certificate status
field value changes toCertificate Valid
. -
Verify that the
Certificate expiration date
field value displays the expiration date for the certificates.
Note: Some client browsers can employ a performance optimization known as "connection coalescing." In this optimization, if two host names resolve to the same IP address and are present in the same TLS certificate, the HTTP/2 connection will be reused between them. This can land the HTTP request in the wrong load balancer and results in a
404
error. See HTTP2 RFC for more information.
