Replace a Node in Site
Objective
This guide provides instructions on how to replace a node in a F5® Distributed Cloud multi-node cluster site and a single-node site. To know more about sites and nodes, see Distributed Cloud Site.
In case you need to replace a Distributed Cloud node in your site due to reasons such as a hardware failure or any other issues, use the instructions provided in this document to perform the replacement.
Prerequisites
- F5 Distributed Cloud Account is required.
Note: In case you do not have an account, see Create an Account.
-
The Distributed Cloud site should be registered and running.
-
Resources required per node: Minimum 4 vCPUs and 14 GB RAM.
Configuration

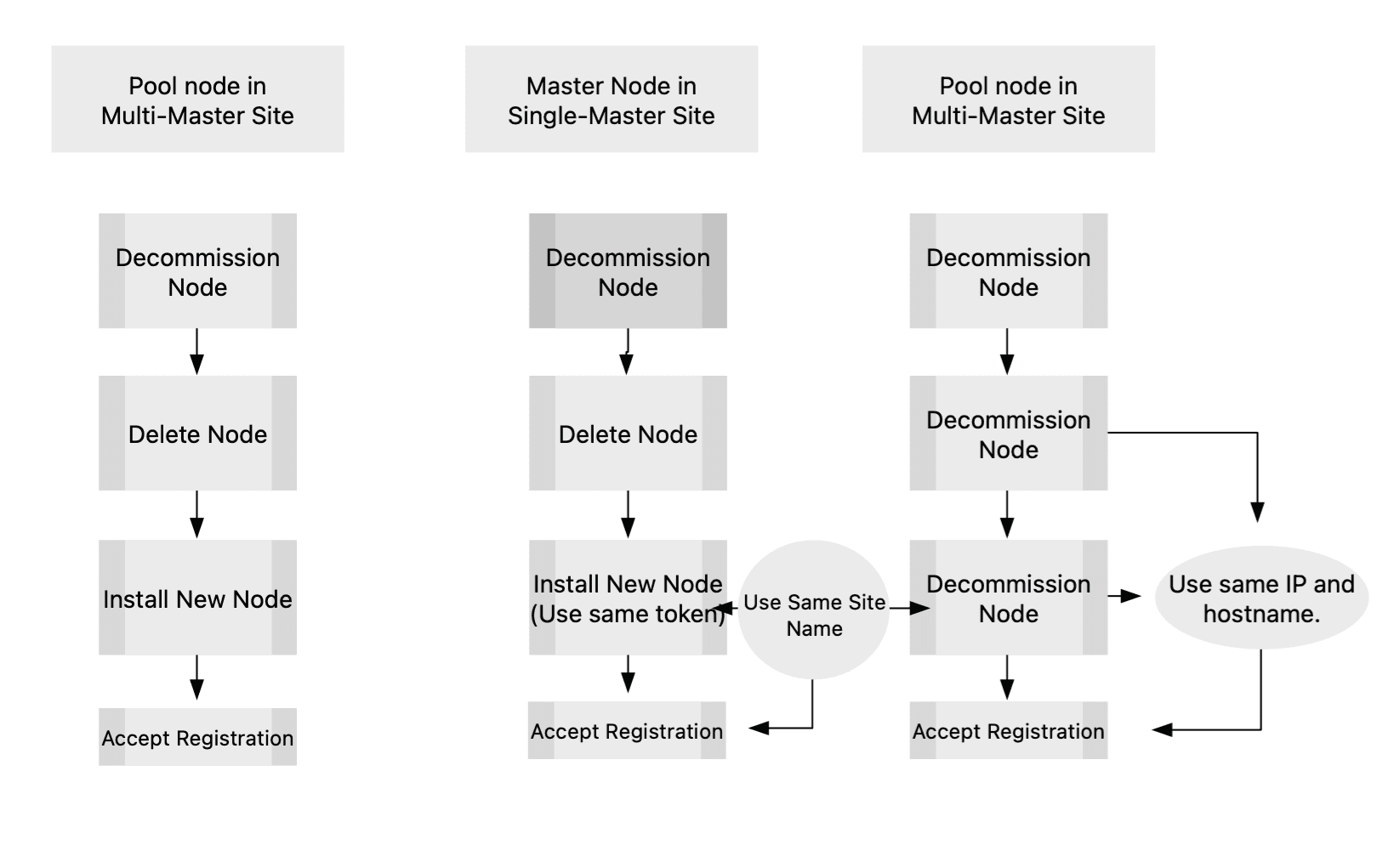

The following figure shows the sequence of steps in replacing a pool node and a master node.
Figure: Node Replacement Workflow
Configuration Sequence
Node replacement for pool or master node includes performing the following sequence of actions:
Phase | Description |
---|---|
Remove Node | Removal of Node includes powering off and handling physical connections if it is a hardware node. |
Install Node | Replacing a node requires installing another Distributed Cloud Node on the same site. |
Update the Node | Add the replaced node to the existing cluster. |
Note: Procedure to replace pool node is different to that of master node. However, the sequence of actions is same.
Replace Pool Node in a Multi-Node Site
Perform the following steps to replace a pool node.
Step 1: Navigate to the registrations page.
-
Select the
Multi-Cloud Network Connect
service. -
Navigate to
Manage
>Site Management
>Registrations
.

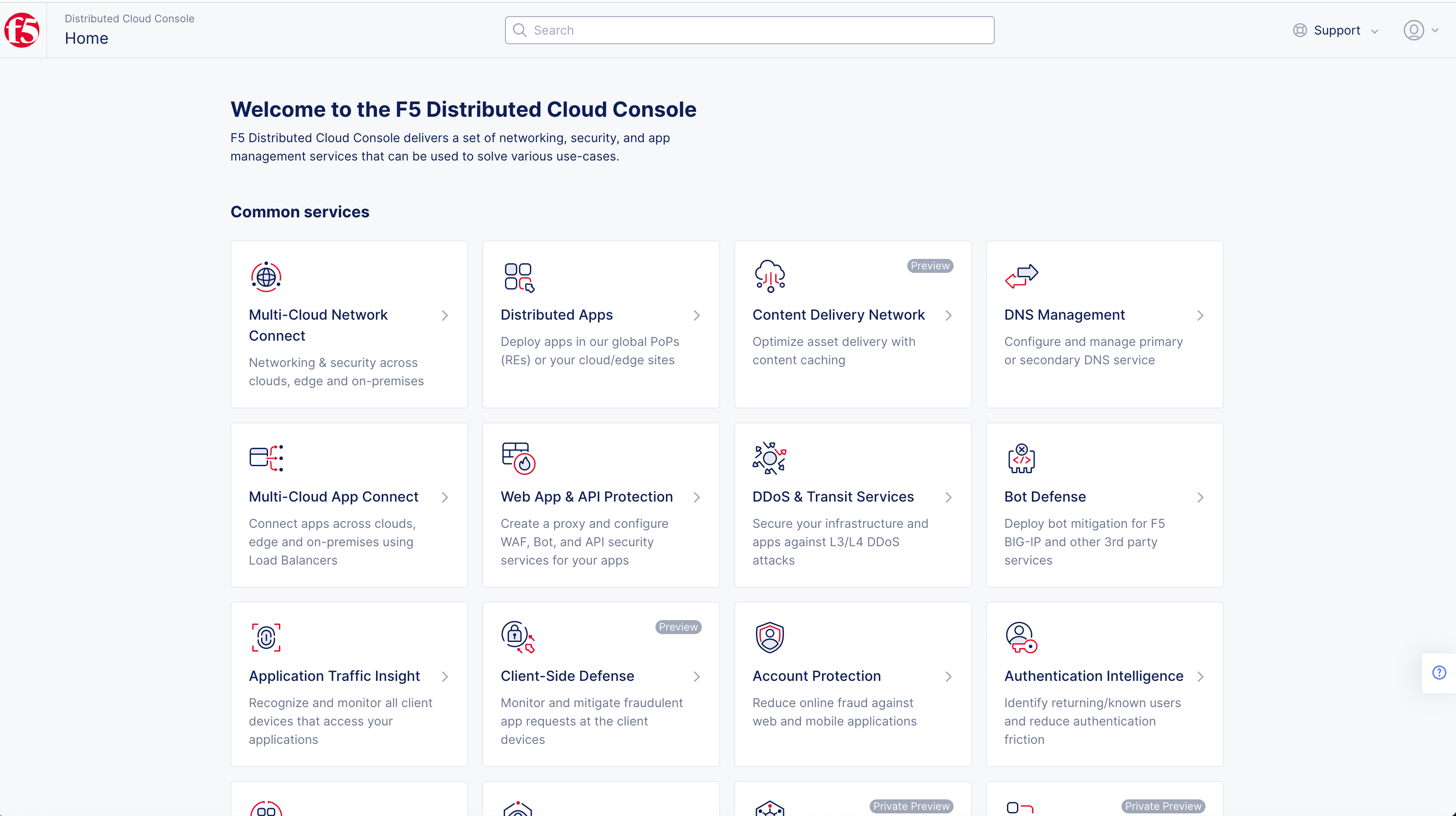

Figure: F5 Distributed Cloud Homepage
Step 2: Decommission the node to be replaced.
-
Select
Other Registrations
option at top ofRegistrations
page. -
Find
Cluster Name
for pool node. -
Select
...
inActions
column. -
Select
Decommission
option for pool node. -
Select
Decommission
in pop-up confirmation window.

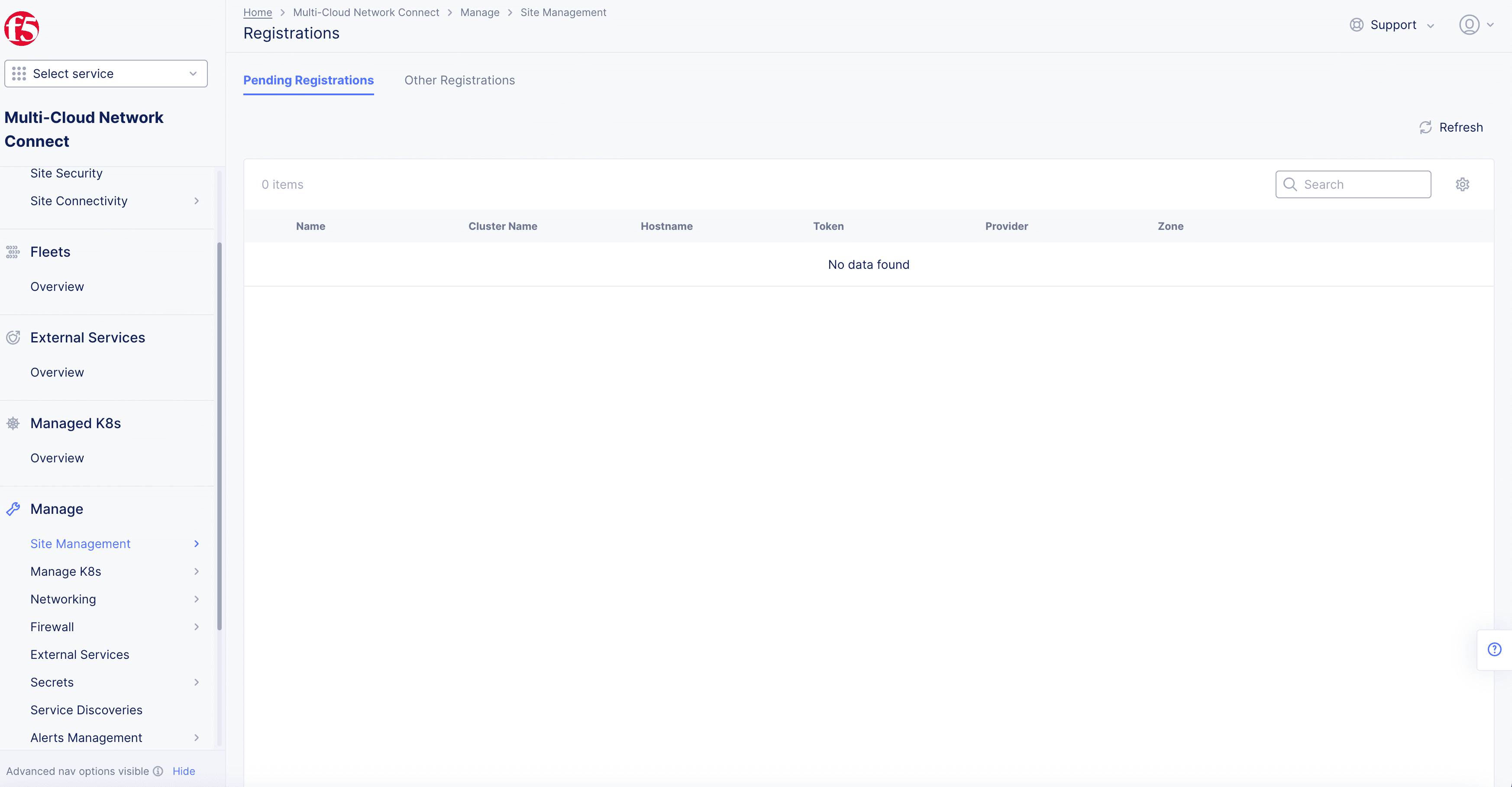

Figure: De-register the Node
Note: User should wait until registration is deleted (it is first RETIRED and then deleted from the list of registration).
Step 3: Delete the pool node from your public cloud location or enterprise locations per your setup.
Note: In the case of physical hardware, you may have to power-off the node as part of decommissioning.
Note: You can also use Distributed Cloud terraform to destroy the node. See the Destroy chapter for Azure or AWS in the create site documents.
Step 4: Install the replacement node.
-
Install another Distributed Cloud Node depending on the type of your setup.
-
Once the installation is complete, accept the registration from the console.
Note: During registration, ensure that the cluster name and size are same as that of the other nodes in the cluster. Also, ensure that the same image is used in case of certified hardware.
Replace Master Node in a Single-Node Site
Perform the following steps to replace a master node in a single-node site.
Note: Same IP and hostname must be used even in single master scenario when any pool node is present.
Step 1: Navigate to the Site List page.
-
Select the
Multi-Cloud Network Connect
service. -
Navigate to
Sites
>Site List
.
Step 2: Reregister your master node.
- Select your site from the displayed list.
Note: Master node is a physical non-cloud site. Registration is done automatically by system.
- Select
...
>Reregister
andReregister
again in the confirmation window.
Note: Confirm that the site shows up with the
WAITINGNODES
state. It can take more than 10 minutes per node to do finish.
Step 3: Shutdown and delete the node.
Note: Depending on the type of node, physical decommissioning may be required.
Step 4: Install the replacement master node.
-
Use the same image as that of the replaced node in case of certified hardware.
-
Configure the same site token as that of the node that is decommissioned.
-
Set the site name the same as that of the node that is decommissioned.
Step 5: Complete site registration.
Log in to the F5 Distributed Cloud Console with your tenant credentials to complete site registration of the new node.
Replace Master Node in a Multi-Node Site
Perform the following steps to replace a master node in a multi-node site.
Step 1: Shutdown the master node you want to replace.
Note: Depending on the type of node, you may need to additionally perform physical activities such as hardware removal.
Step 2: Navigate to the registrations page.
-
Select the
Multi-Cloud Network Connect
service. -
Navigate to
Manage
>Site Management
>Registrations
.
Step 3: Decommission the master node.
-
Select
Other Registrations
option at top ofRegistrations
page. -
Find
Cluster Name
for pool node. -
Select
...
inActions
column. -
Select
Decommission
option for pool node. -
Select
Decommission
in pop-up confirmation window.
Note: Confirm that the de-registered node shows up with the
RETIRED
state in theOther Registrations
tab.
Step 4: Install the replacement master node.
-
Use the same image as that of the replaced node in case of certified hardware.
-
Configure the same site token as that of the node that is decommissioned.
-
User can use DHCP with static IP address assignment (by mac address or duid).
-
Set the cluster name and hostname to the same as that of the replaced node.
Step 5: Complete site registration.
Log into Console with your tenant credentials to complete site registration of the new node.
