Deploy Site in Azure (ClickOps)
Objective
This guide provides instructions on how to create a customer edge (CE) site using the Microsoft Azure Console and deploy to an Azure VNet. For more information on sites, see F5® Distributed Cloud Site.
This guide will show you how to create a single-node mesh site with dual interfaces (ingress/egress gateway). However, this guide will also incorporate the differences that you can successfully deploy an Azure CE Site using both Mesh or App Stack and in any supported combination of nodes and interfaces.
Site Types and Scenarios
The scenarios below in the table have been tested successfully. The Network Address Translation Gateway (NAT GW) device in Table 1 references the Azure NAT Gateway. However, technically this should also work with third-party firewalls.
Note: In the
Number of Nodes
column,1/3
indicates 1 or 3 nodes.IGW
references Internet Gateway.
Provider | Site Type | Number of Nodes | Gateway Type | Interfaces | Scenario |
---|---|---|---|---|---|
Azure | Mesh | 1/3 | Ingress/Egress | 2 | Behind IGW |
Azure | Mesh | 1/3 | Ingress | 1 | Behind IGW |
Azure | App Stack | 1/3 | - | 1 | Behind IGW |
Azure | Mesh | 1/3 | Ingress/Egress | 2 | Behind NAT GW |
Azure | Mesh | 1/3 | Ingress | 1 | Behind NAT GW |
Azure | App Stack | 1/3 | - | 1 | Behind NAT GW |
Considerations for Sites Behind NAT Gateway
In a regular deployment, each CE node has a Public IP associated with the SLO interface and the Azure system routes, direct the outgoing traffic via the Internet Gateway using the Public IP as the NAT IP.
But for scenarios where there is a requirement to have the CE site deployed without a Public IP address, you can place the CE behind a NAT Gateway. This can be the Azure NAT gateway or any third-party instance, like a firewall used as a NAT gateway.
For scenarios where there is a requirement to have the CE site deployed without a public IP address, you can place the CE behind a NAT Gateway.
If you are deploying a site in this scenario, there are a few differences to note:
-
There is no public IP association with the CE(s).
-
You must ensure the CE can get to the Internet through its SLO interface.
-
From the Azure side, ensure that the routing table from the SLO subnet has a default route 0.0.0.0/0 that points to the NAT Gateway.
-
The NAT Gateway is a zonal object. In other words, it belongs to one availability zone. Therefore, in the case of a three-node CE cluster, you might want to deploy additional NAT Gateways for high availability.
Prerequisites
The following prerequisites apply:
-
A Distributed Cloud Services Account. If you do not have an account, see Create an Account.
-
An account with Microsoft Azure. See Required Access Policies for permissions needed to deploy site. To create a cloud credentials object, see Cloud Credentials.
-
Resources required per node: Minimum 4 vCPUs, 14 GB RAM, and 80 GB disk storage. However, to deploy an F5® Distributed Cloud App Stack Site, 100 GB is the recommended minimum amount of storage. For a full listing of the resources required, see the Customer Edge Site Sizing Reference guide. All the nodes in a given CE Site should have the same resources regarding the compute, memory, and disk storage. When deploying in cloud environments, these nodes should use the same instance flavor.
-
Allow traffic from and to the Distributed Cloud public IP addresses to your network and allowlist related domain names. See Firewall and Proxy Server Allowlist Reference guide for the list of IP addresses and domain names.
-
F5 assumes that the resource group exists with a virtual network, including a minimum of two subnets: one for the Site Local Outside (SLO) and one for the Site Local Inside (SLI). The CE generally references the SLO interface as
eth0
and the SLI interface aseth1
. -
For a single-NIC deployment (ingress gateway/Mesh or App Stack), only a single subnet (SLO) is required.
-
Internet Control Message Protocol (ICMP) needs to be opened between the CE nodes on the Site Local Outside (SLO) interfaces. This is needed to ensure intra-cluster communication checks.
Important: After you deploy the CE Site, the IP address for the SLO interface cannot be changed. Also, the MAC address cannot be changed.
Procedure
This procedure provides instructions for creating a Secure Mesh Site with two interfaces (ingress/egress) on an Azure VNet using Azure Console. Most of the objects and configurations are the same for single-node and multi-node sites.
The steps differ only for the node instance and IP address creation, where you must repeat the steps for each node in a multi-node site.
Create External Network Security Group
The CE site’s instance security is internally managed by the CE data path. Therefore, you must configure a Network Security Group with allow all rules for both inbound and outbound traffic to be used with the site deployment.

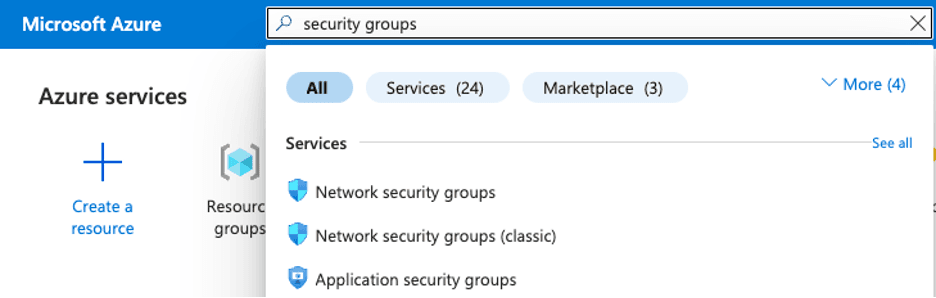

Step 1: Navigate to security group creation page.
- In Azure Console, navigate to the
Network security groups
service.

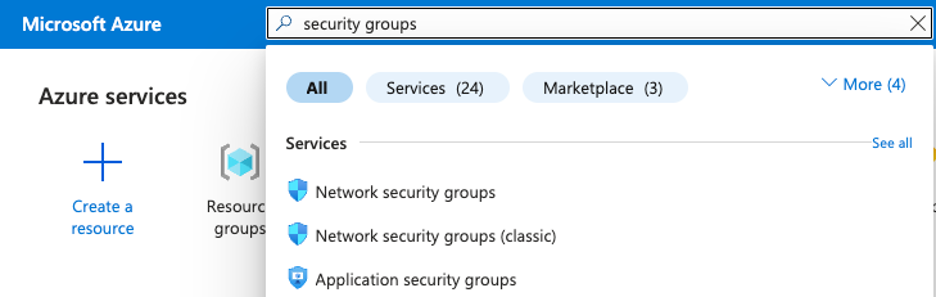

Figure: Search for Network Security Group
Step 2: Create and configure security group policy.
-
Click
Create
. -
Assign the new security group to your resource group. This procedure uses
f5-ce-resource-group
as an example. -
Give the network security group an indicative name. In this procedure, it is
f5-ce-external-network-security-group
. -
Click
Review + create
. -
After you create the network security group, click on it to set up the inbound and outbound rules.

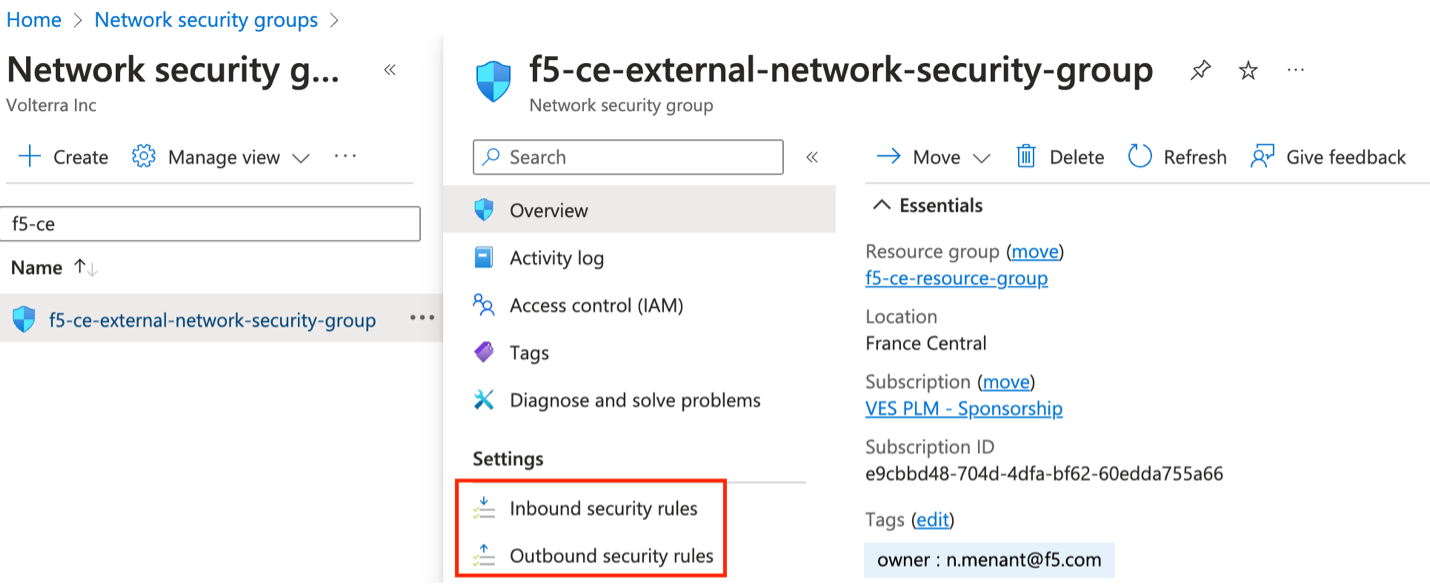

Figure: Select Network Security Group

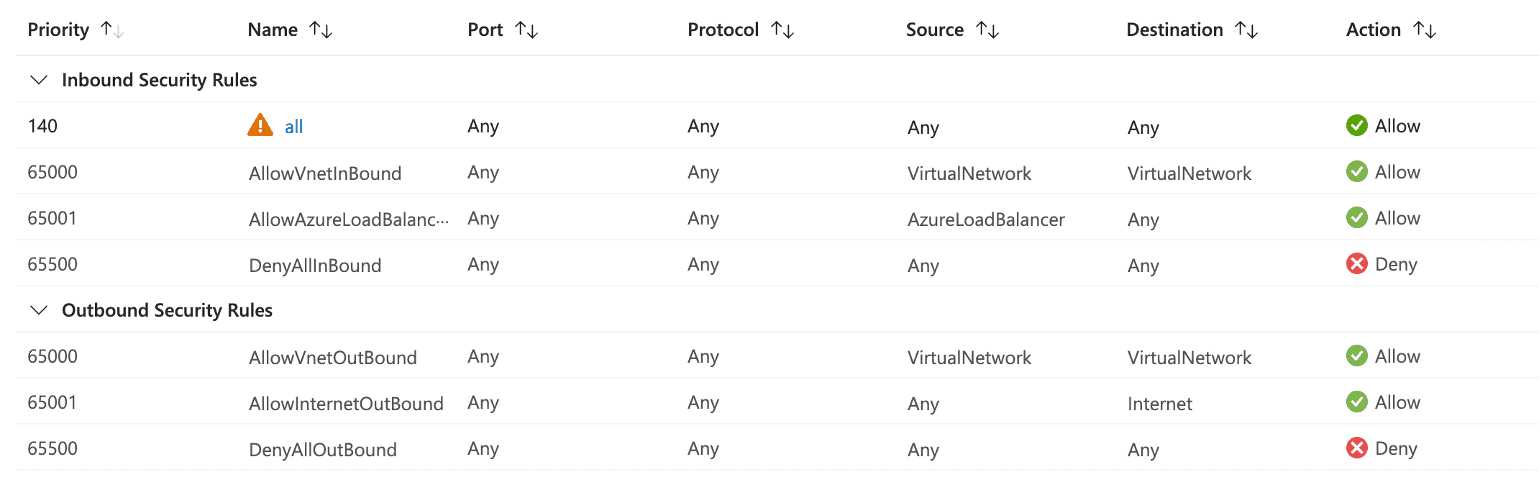

Step 2.1: Add rule to inbound traffic.
Add an allow all rule to the inbound security rules. The default outbound rules already allow Internet traffic, so there is no need to change anything.
Figure: Inbound and Outbound Rules
Step 3: Verify rules created.

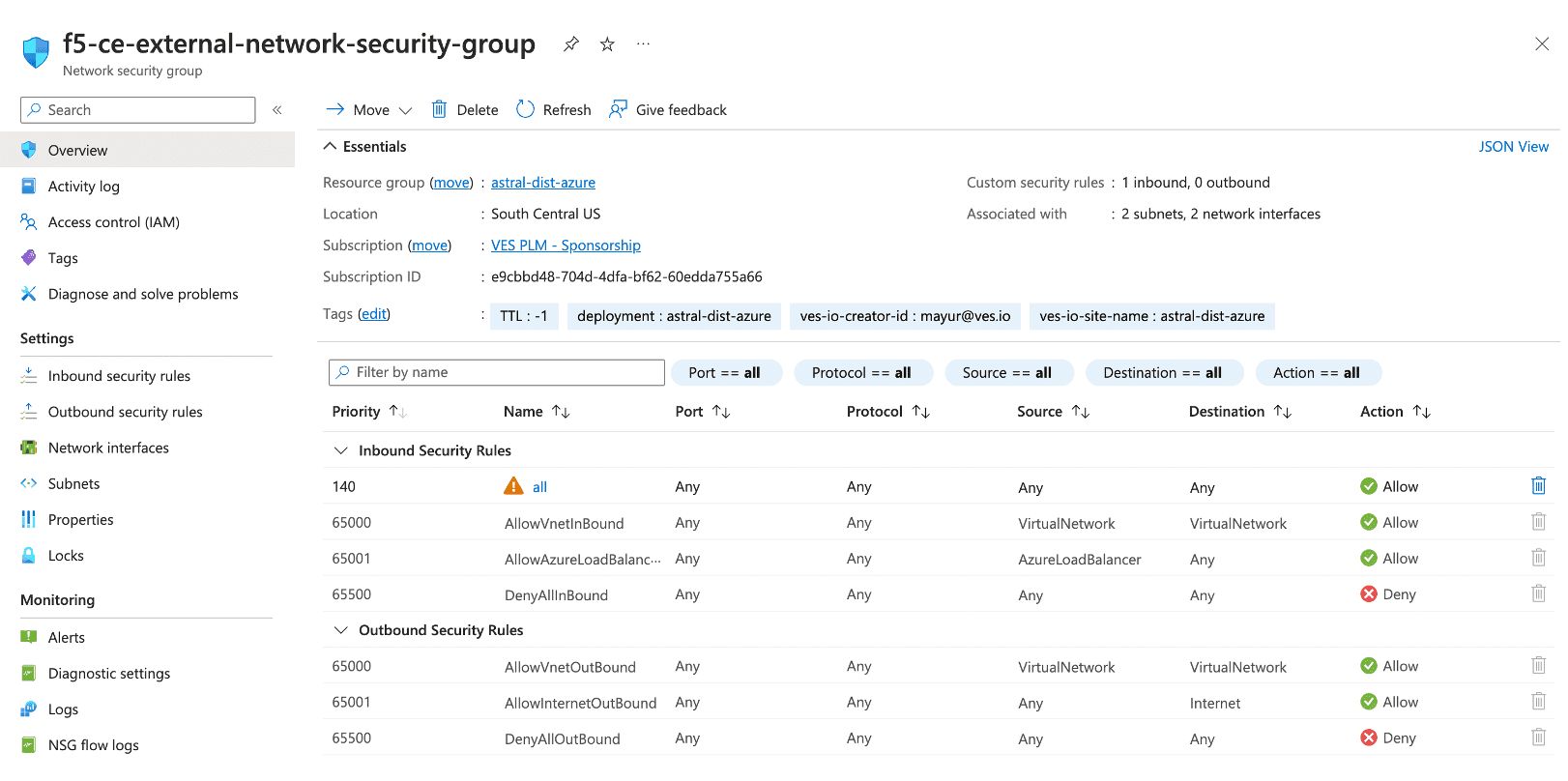

In the overview section for your network security group, you can see all the rules that have been created. Confirm the rules are as desired.
Figure: Verify Rules
Create SSH Key Pairs
You need to create key pairs for SSH login into the virtual machine for troubleshooting purposes.
Step 1: Navigate to SSH key creation page.
-
In Azure Console, navigate to the
SSH keys
service. -
Click
Create
.

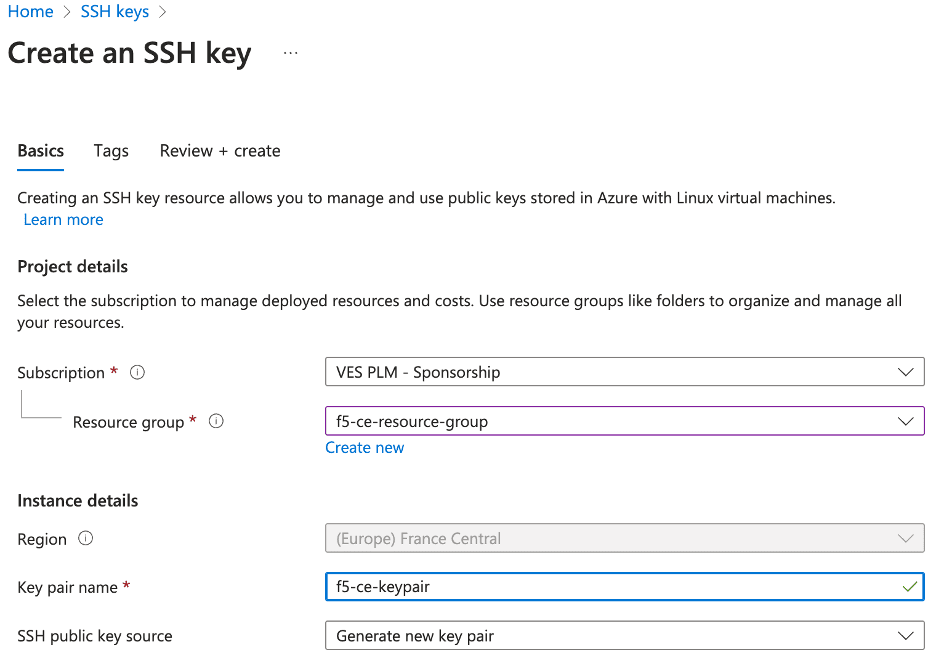

Step 2: Configure SSH key pairs.
-
Verify the
Subscription
andResource group
are correctly selected. -
In the
Key pair name
field, enter a name. -
Click
Review + create
.

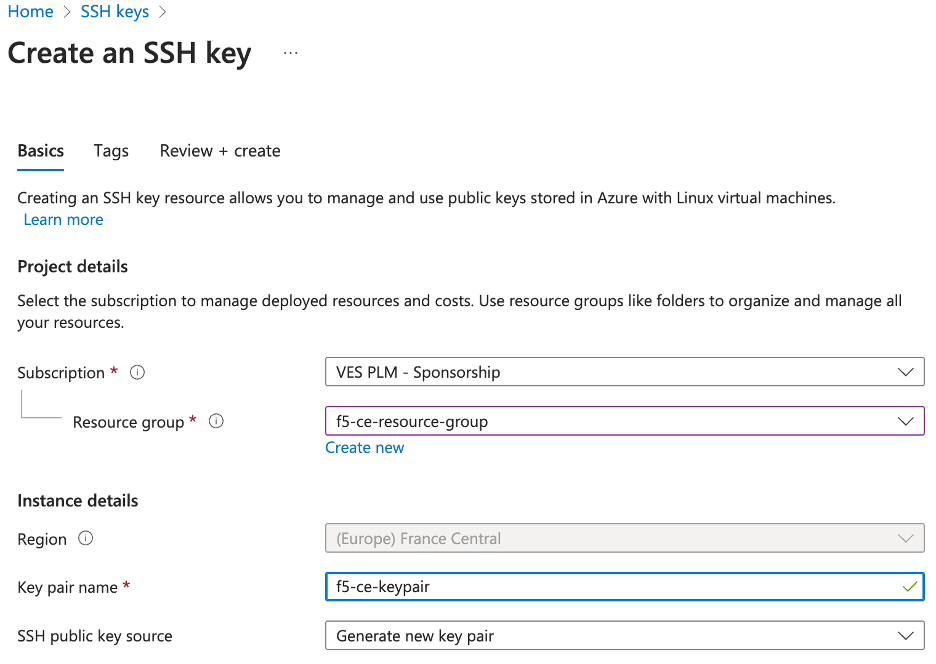

Figure: Create SSH Key Pairs
-

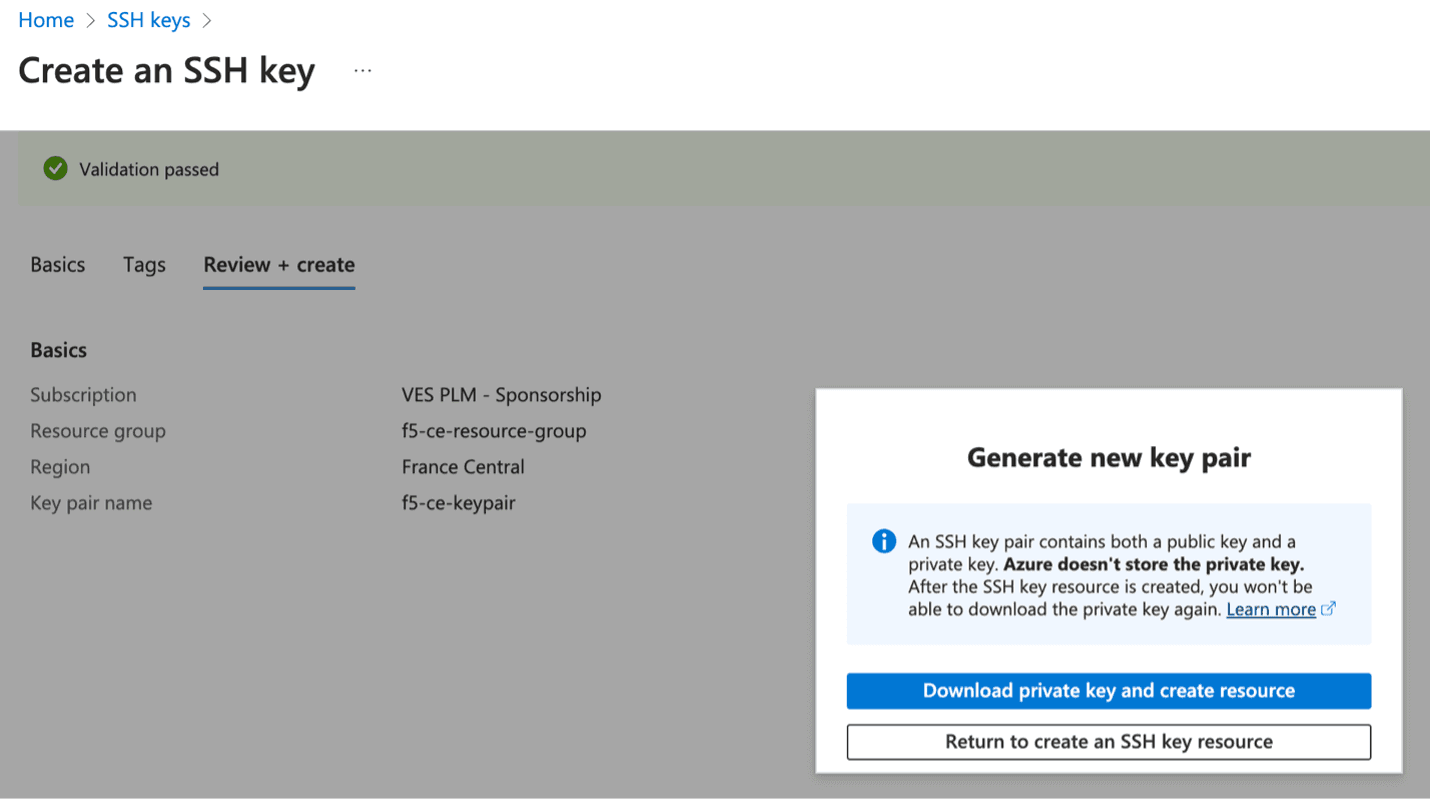

After successful validation, click
Create
. -
Click
Download private key and create resource
to download the key pair locally to your machine since the pair will not be saved in Azure. You will need the key pair to log into the CE node. The private key pair file is namedf5-ce-keypair.pem
as an example.

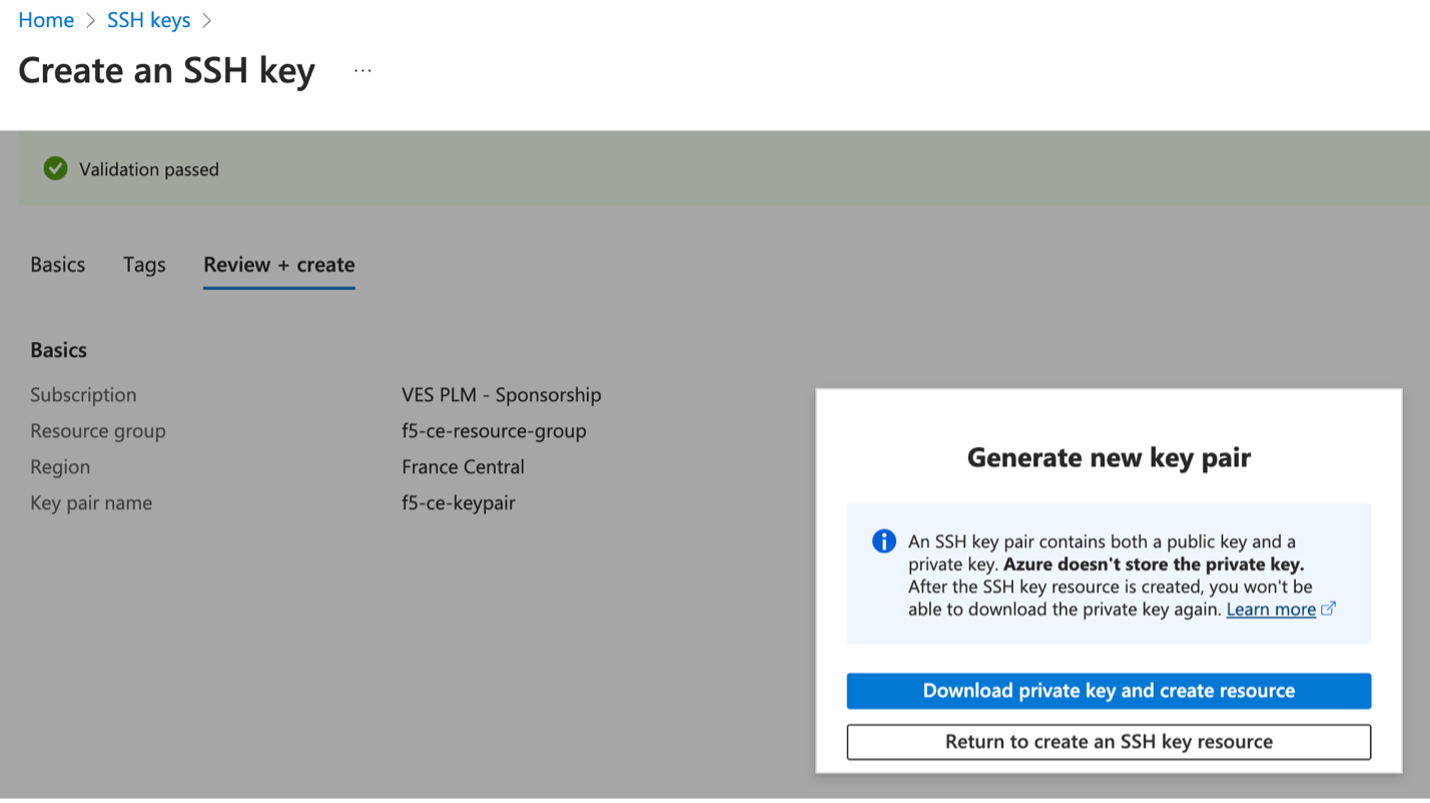

Figure: Download SSH Key Pairs
Existing Resource Group Details
In this procedure, we are deploying dual interface single-node and multi-node CE sites. Therefore, we need two subnets: SLI (Site Local Inside) and SLO (Site Local Outside). Note that workload subnets are generally used but are not a requirement to deploy a CE site.
Note: Azure subnets are not zonal constructs, so the same subnets can be used for deploying nodes in different AZs for a multi-node site.

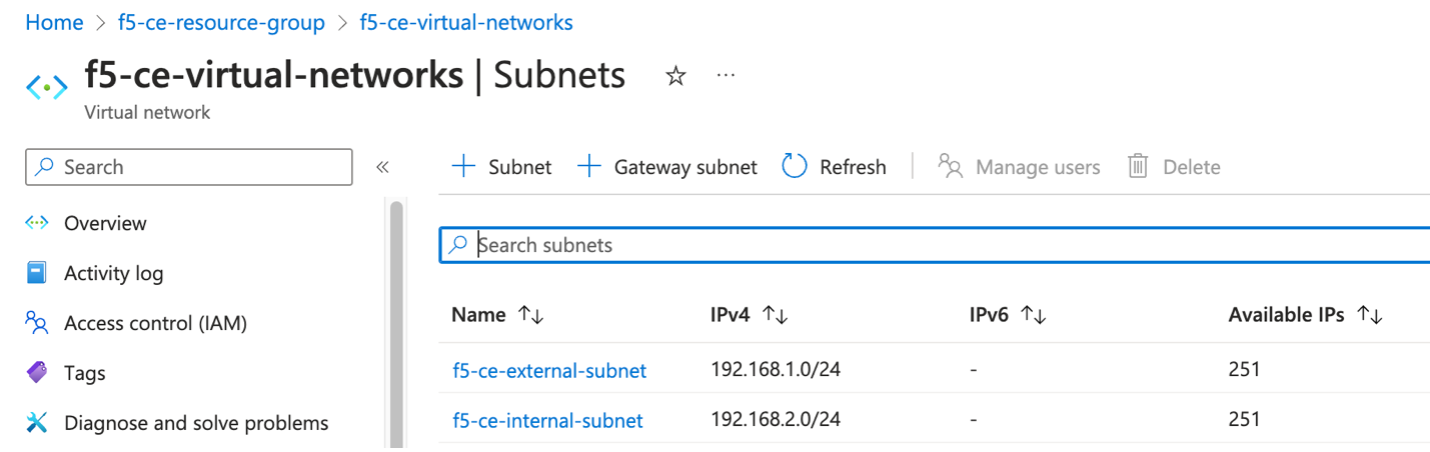

Figure: Existing Virtual Networks
Create Site Token
Create a site token or use an existing token. If you are configuring a multi-node site, use the same token for all nodes. To create the token, see the Create Site Token guide.
Modify the User Data File

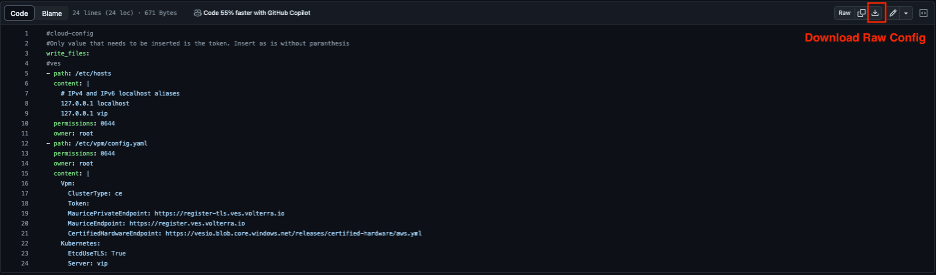

Download the raw .yml
file to your machine and input the value of the site token into the Token
field. See GitHub User Data File for more information. Afterwards, save the file on your machine as you will need it for the user data when creating the F5 CE virtual machine.

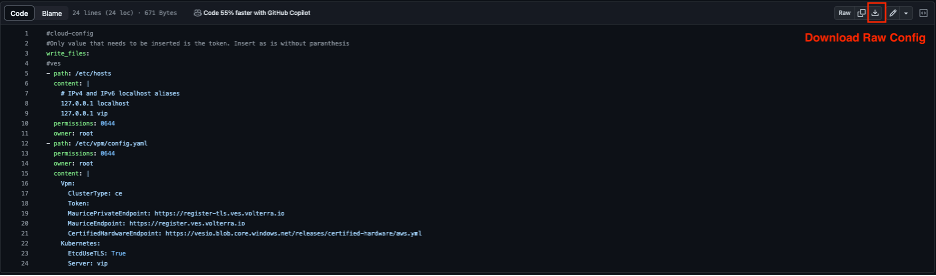

Figure: Raw YAML File
#cloud-config
#Only values that need to be inserted are token and site name. Insert as is without parenthesis
write_files:
- path: /etc/hosts
content: |
# IPv4 and IPv6 localhost aliases
127.0.0.1 localhost
127.0.0.1 vip
permissions: 0644
owner: root
- path: /etc/vpm/config.yaml
permissions: 0644
owner: root
content: |
Vpm:
ClusterType: ce
ClusterName: #### TO BE REPLACED BY THE F5XC SECURE MESH SITE NAME ####
Token: #### TO BE REPLACED BY F5XC API TOKEN ####
MauricePrivateEndpoint: https://register-tls.ves.volterra.io
MauriceEndpoint: https://register.ves.volterra.io
CertifiedHardwareEndpoint: https://vesio.blob.core.windows.net/releases/certified-hardware/azure.yml
Kubernetes:
EtcdUseTLS: True
Server: vip
CloudProvider: disabled
Deploy Multi-Node Site
Follow these steps to create a three-node Secure Mesh Site.
Create Public IP Addresses

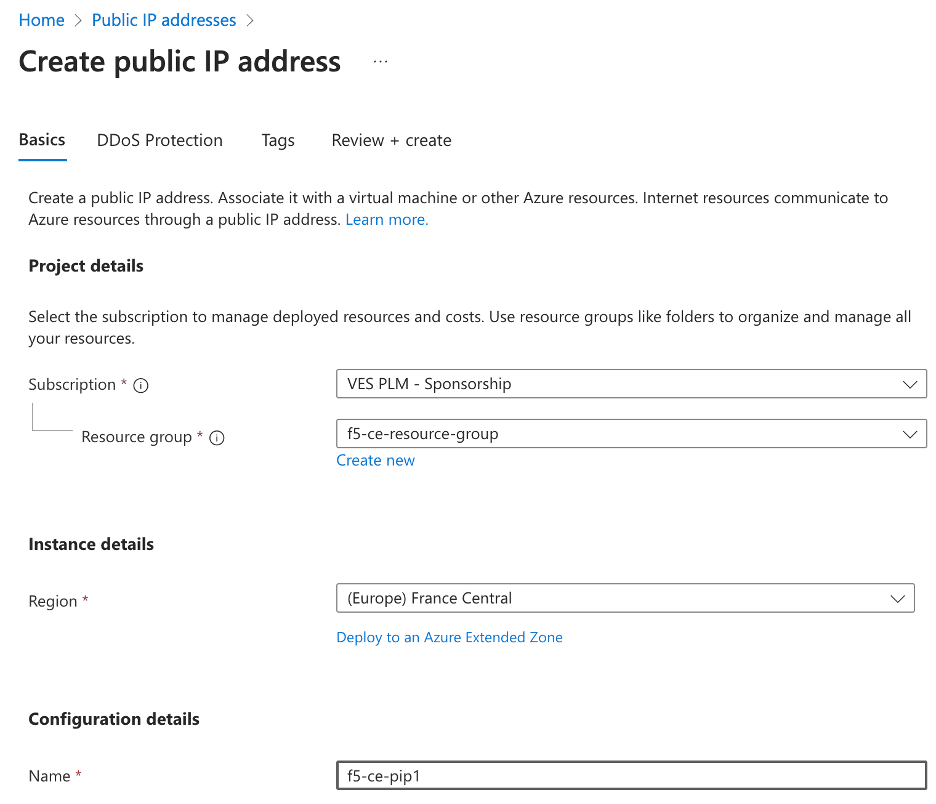

In Azure Console, create public IP addresses. You will need to create three public IP addresses since three nodes are being deployed for the CE site.

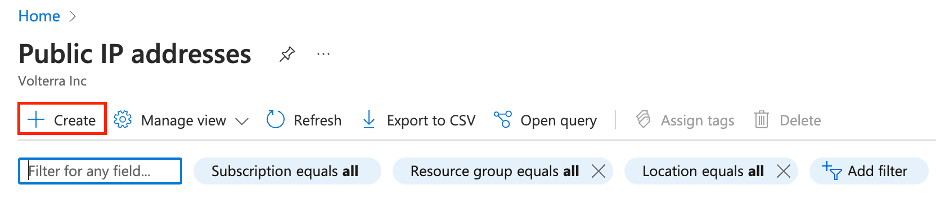

- Navigate to the
Public IP addresses
creation page and clickCreate
.
Figure: Create Public IP
-
Under
Configuration details
, in theName
field, enter a name for the Public IP. -
Leave the remaining options with their default values.
Figure: Create Public IP
-
Click
Review + create
. -
After validation passes, click
Create
. -
Repeat the above steps to create
f5-ce-pip2
andf5-ce-pip3
public IP addresses for nodes two and three.
Create the CE Virtual Machines
Create the F5 CE VM instances using the previously created parameters. It is recommended that you create a table and fill it with the information prior to deploying the CE instance.
See table below for example parameters and explanations used for this procedure.
Parameter | Value | Notes |
---|---|---|
Name | f5-ce-node1 , f5-ce-node2 , f5-ce-node3 | Names of CE node VM instances. |
Region | France-central | Name of Azure region in which site is deployed. |
Image Name | Volterra VoltMesh and VoltStack Node Free Plan | Located in Azure Marketplace. |
Certified Hardware Name | azure-byol-multi-nic-voltmesh | This is the certified hardware name. |
Instance Type | Standard_D3_v2 | Minimum instance requirements: 4 vCPUs, 14 GB RAM, 80 GB storage for Mesh nodes, and 100 GB storage for App Stack. Recommended instance types are Standard_D3_v2, Standard_D4_v2, and Standard_D5_v2. |
Resource Group | f5-ce-resource-group | Created in Azure Console. |
SLO Subnet ID | f5-ce-external-subnet | Existing subnet. |
SLI Subnet ID | f5-ce-internal-subnet | Existing subnet. |
Key Pair | f5-ce-keypair | Key pair created in Azure Console. |
Security Groups | f5-ce-external-security-group | Name of security group created in Azure Console. |
Public IP Addresses | f5-ce-pip1 , f5-ce-pip2 , f5-ce-pip3 | IP addresses created in Azure Console. |
Site Name | f5-ce-demo | Equals ves-io-site-name value. |
Token | Confidential. Value varies. | Value for site token ID generated in F5 Console. |
Storage | 45 GiB for Mesh site/100 GiB for App Stack recommended. | Minimum disk space required. |
Step 1: Create new virtual machine.
- In Azure Console, within your resource group, click
Create
.

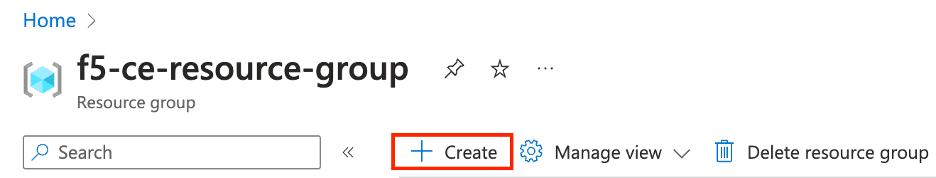

Figure: Create VM
-

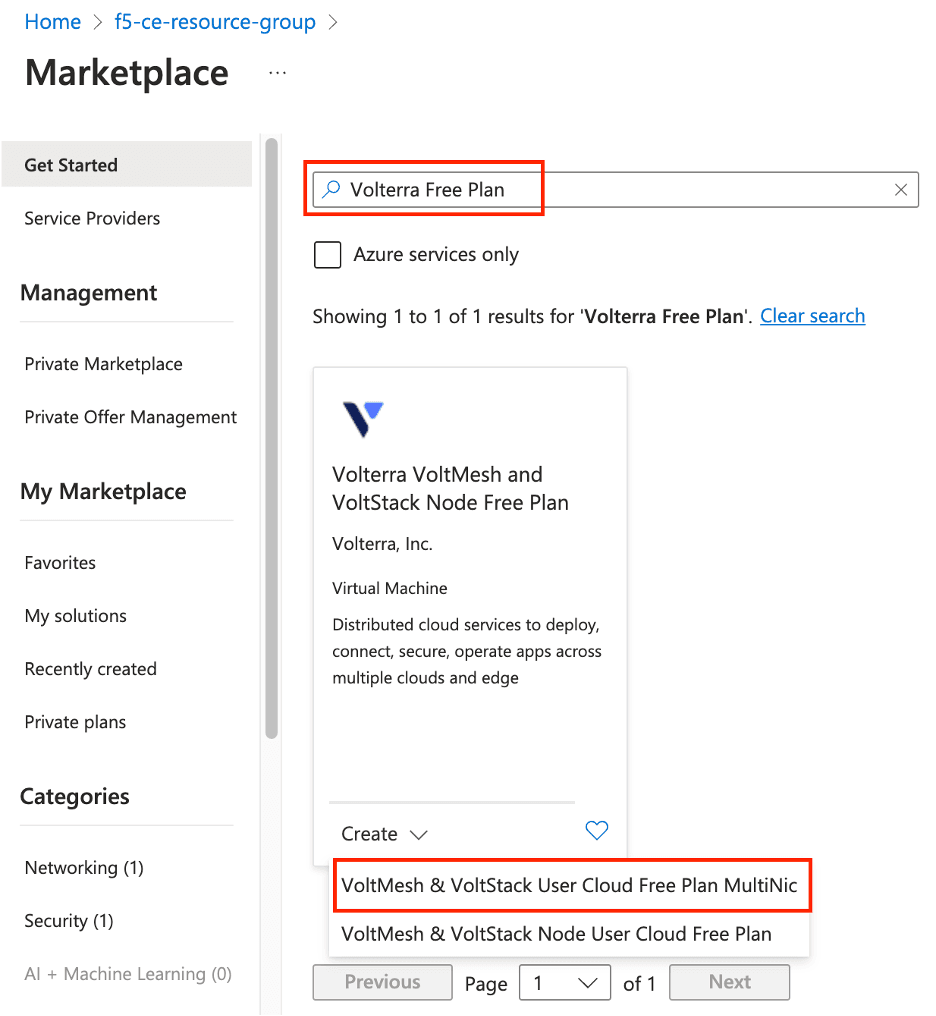

Use the search bar to locate the right CE image. You can search for "Volterra Free Plan." This procedure uses the image for Volterra VoltMesh and VoltStack Node Free Plan. This plan image corresponds to the
azure-byol-multi-nic-voltmesh
certified hardware. -
After you find the image, click
Create
.
Figure: Select VM Image
Step 2: Configure new virtual machine.
-

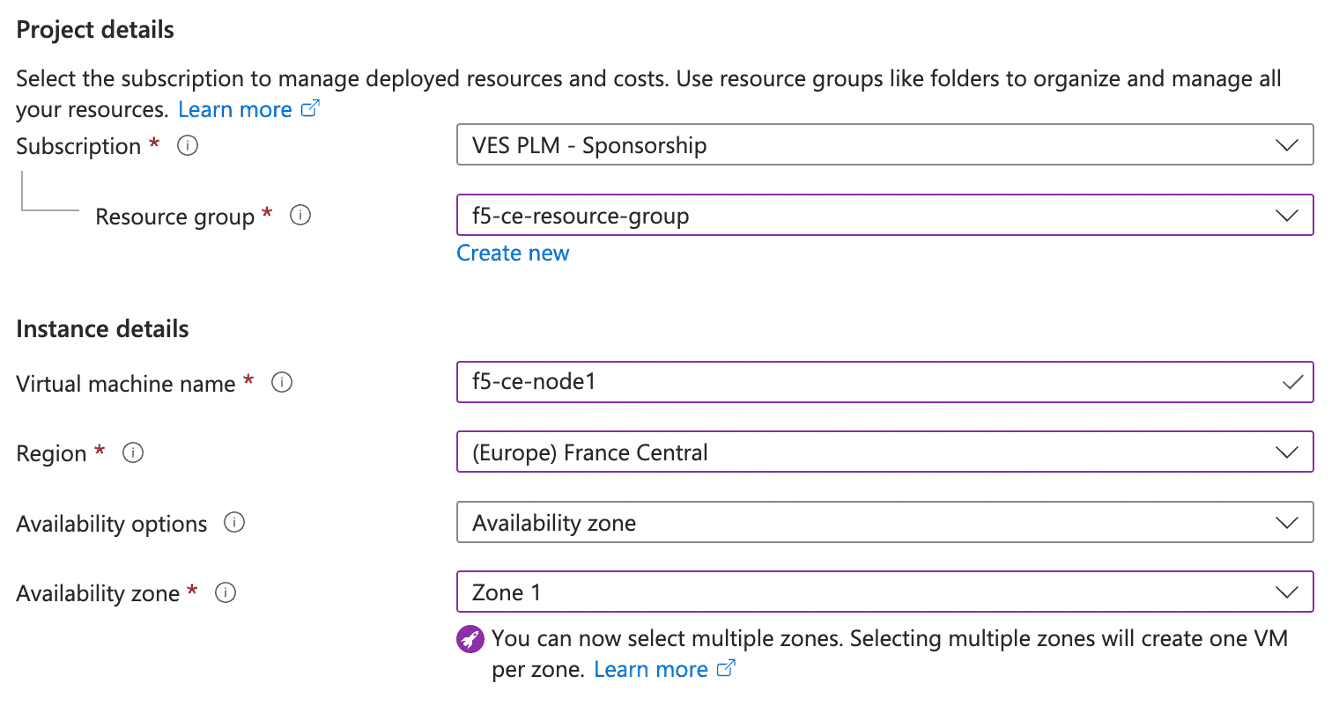

Enter a VM name.
-
Ensure the correct region and availability zone are selected.

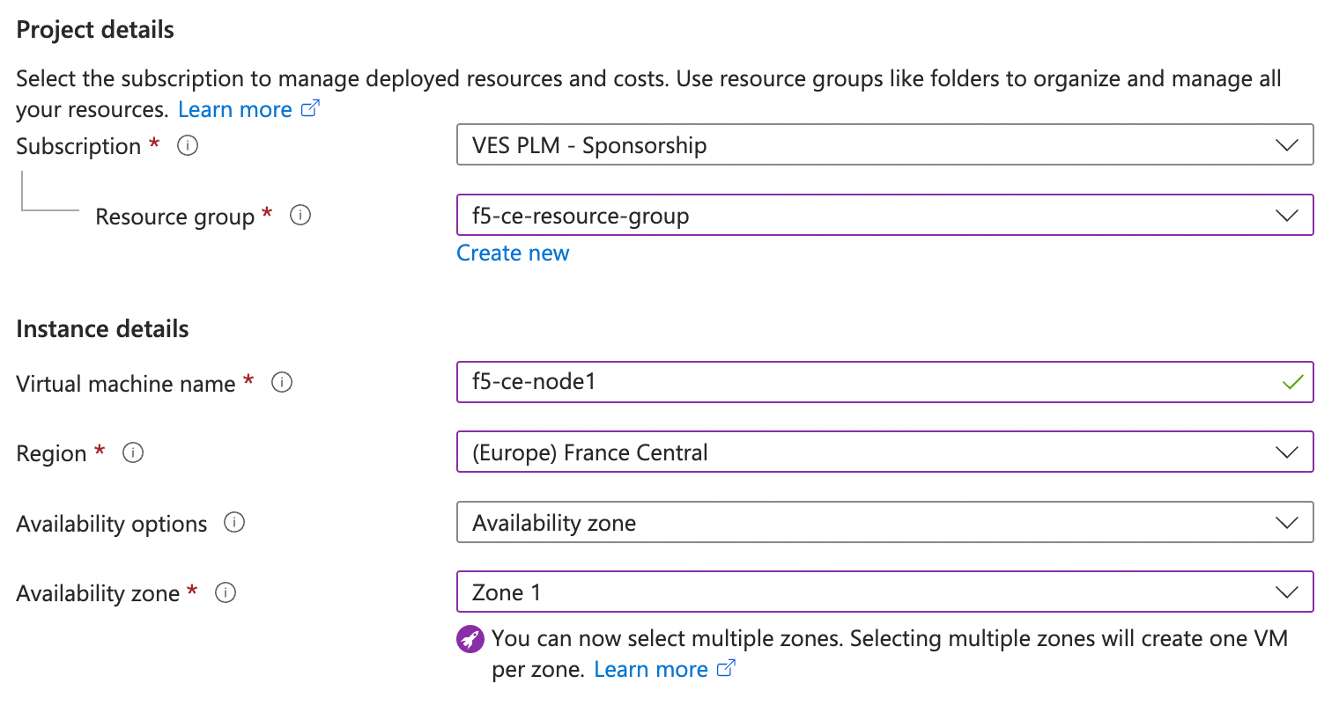

Figure: Configure VM

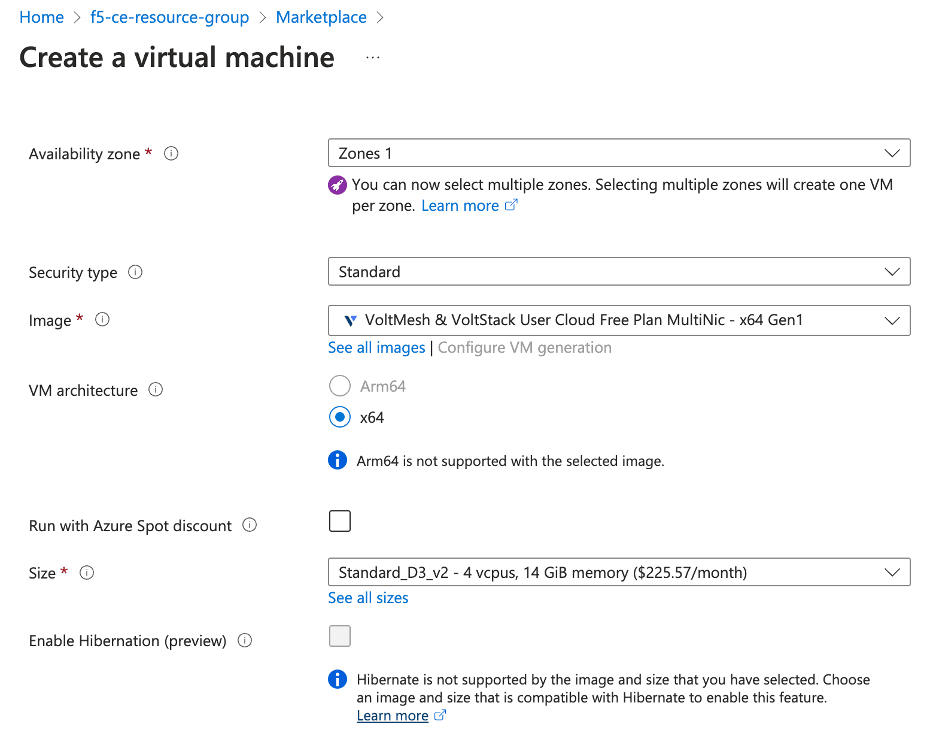

- From the
Size
menu, choose the instance type. This procedure usesStandard_D3_v2
as an example. This instance type is the minimum required to deploy an F5 CE Site to Azure cloud.

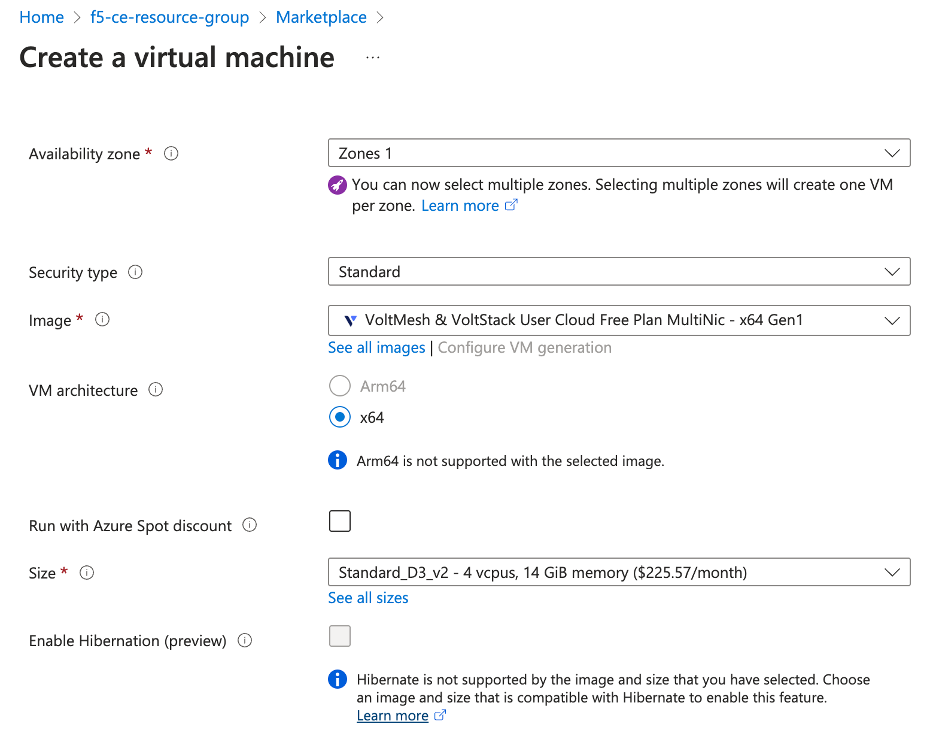

Figure: Configure VM Instance Type
-

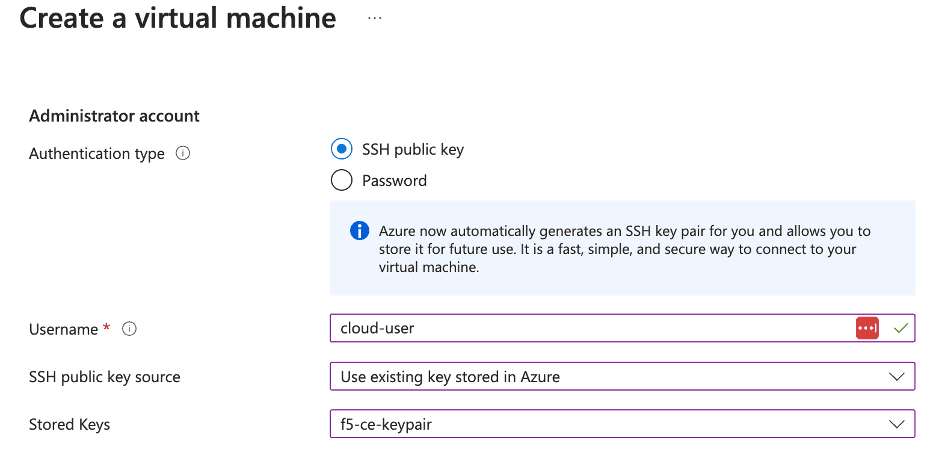

From the
SSH public key source
menu, assign the previously created SSH key pair. -
In the
Username
field, Entercloud-user
as the default user to SSH log into the CE instance.
Figure: Configure VM Username
-
Click
Next:Disk
. -
From the
OS disk size
menu, select128 GiB (E10)
.
Step 3: Configure virtual machine networking.
-
Click
Next:Networking
. -

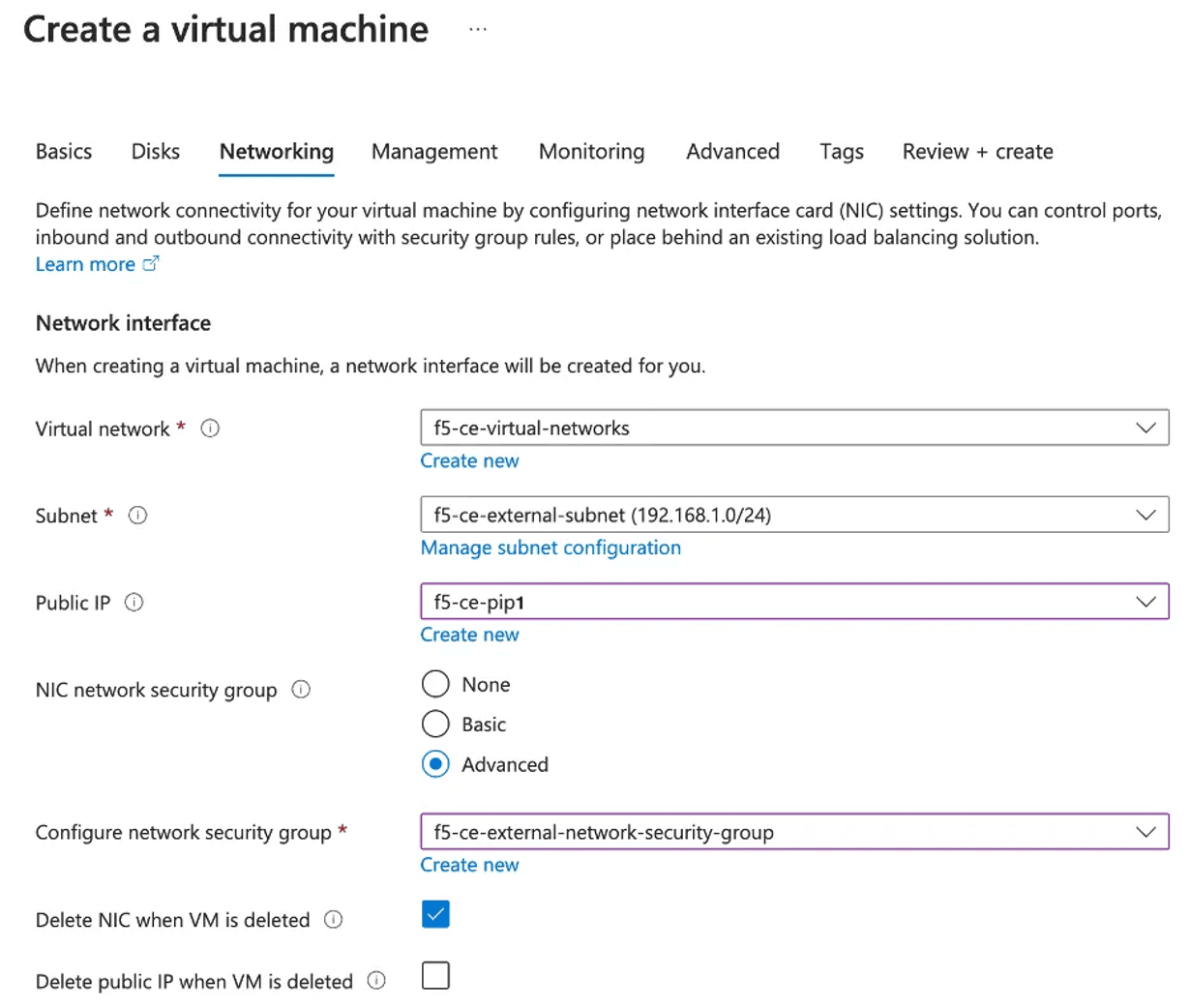

Ensure the following parameters for network interface configuration:
-
From the
Virtual network
menu, select the network. -
From the
Subnet
menu, select the external interface.
-
Important: You cannot create/assign the internal interface to the virtual machine in this step. It will be added at a later step.
-
From the
Public IP
menu, select the IP previously created. -
For the
NIC network security group
option, selectAdvanced
. This option is needed so that you are able to select the network security group. -
From the
Configure network security group
menu, select the security group previously created. -
Select the
Delete NIC when VM is deleted
option.
Figure: Configure VM Networking
Step 4: Configure advanced settings.
-
Click the
Advanced
tab to skip theManagement
andMonitoring
configuration. -
In the
Custom data
field, copy and paste the user data file information (which includes the site token).

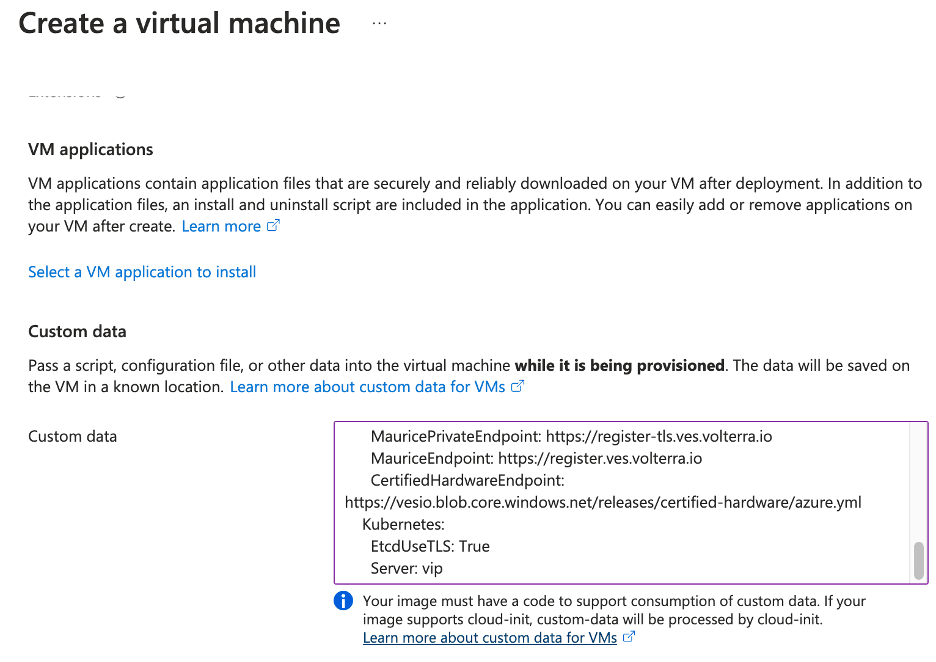

Figure: User Data
Step 5: Complete VM creation.
Click on Review + create
. After validation process completes successfully, click Create
.
Step 6: Track VM deployment progress.
You can track deployment progress by connecting to your instance's public IP on port 65500. It may take a few minutes for the web interface to appear.
The default username is admin
and the default password is Volterra123
. You will be required to change the default password on your first login attempt.
The CE will show in Approval
state. This means that the CE is awaiting registration approval from F5 Console. Before approving registration, you need to add a second interface to the CE site.

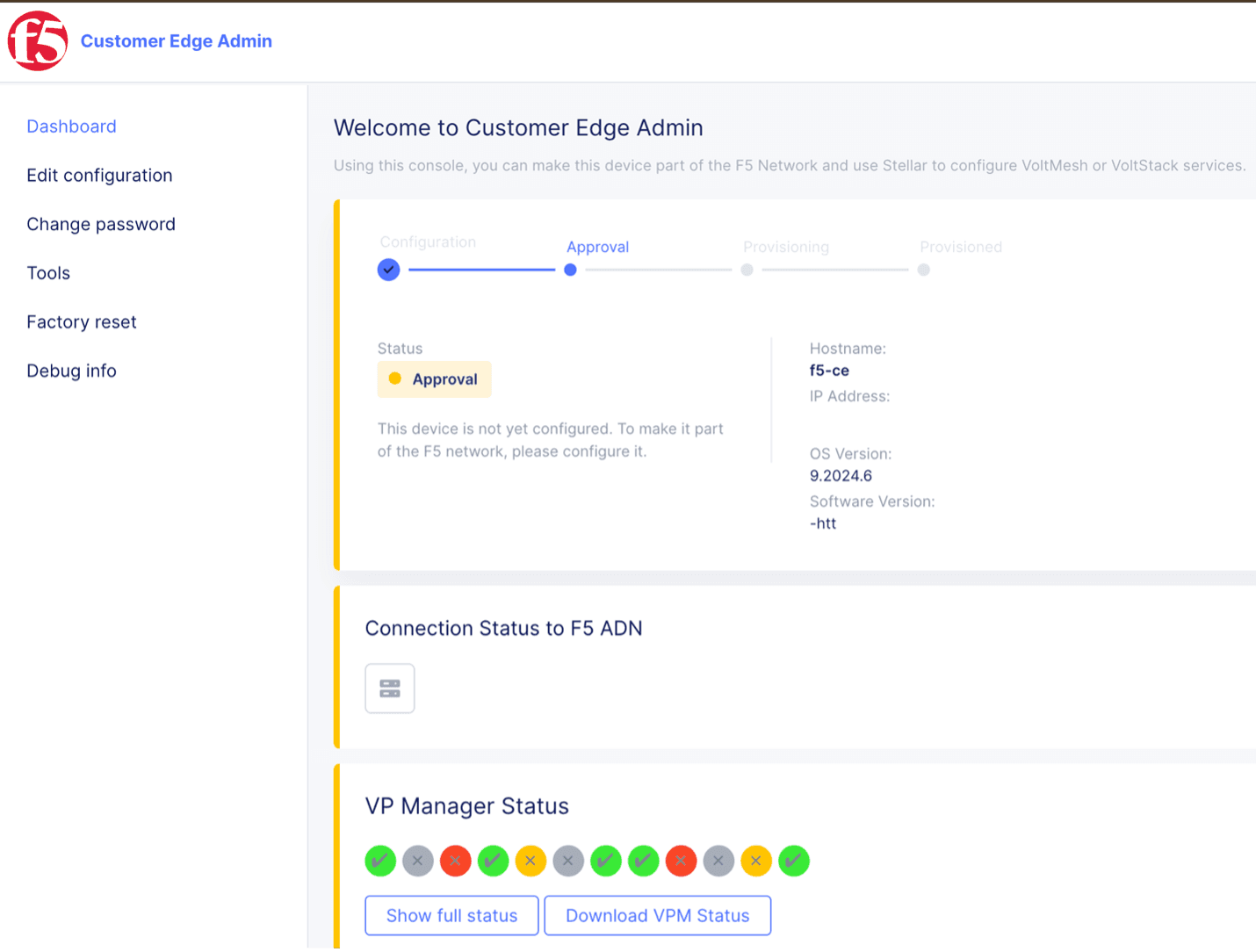

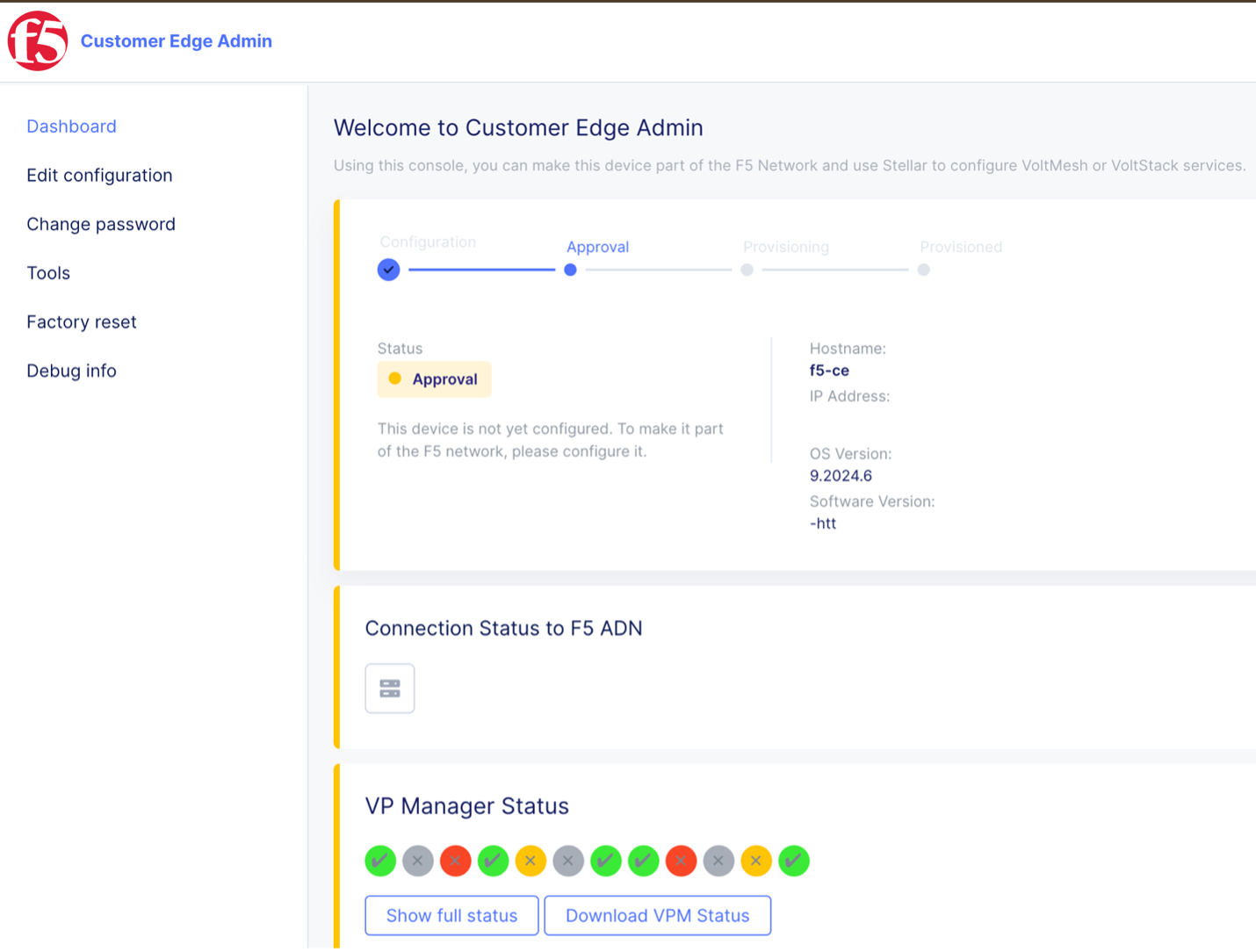

Figure: Site Local UI
Step 7: Create VM instances for nodes two and three.
-
Repeat above steps 1-6 to deploy
f5-ce-node2
andf5-ce-node3
in AZ 2 and 3, respectively. -
Ensure you associate the correct public IP address with each node.
Add Second Interface to Multi-Node Site
-

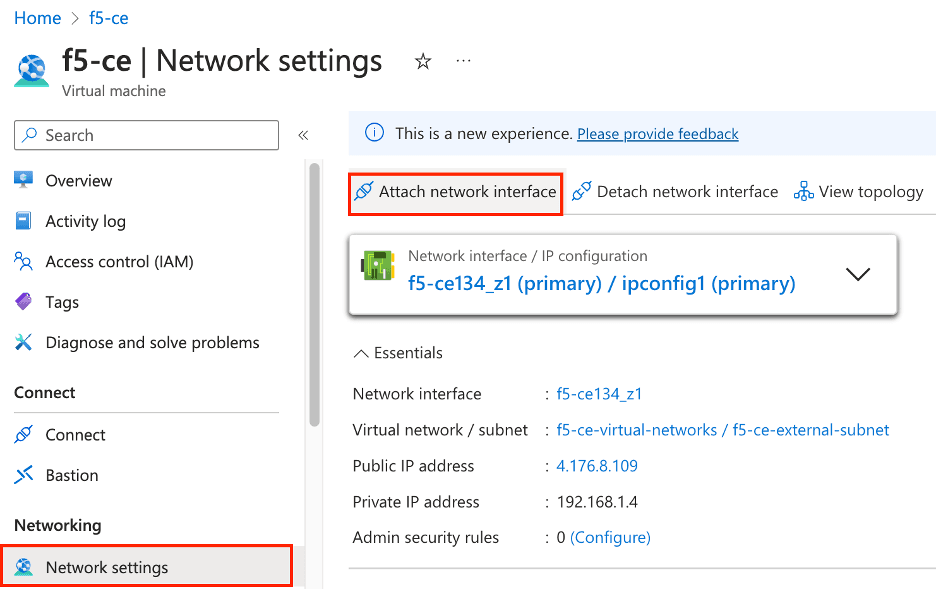

In Azure portal, select your VM and click
Stop
. -

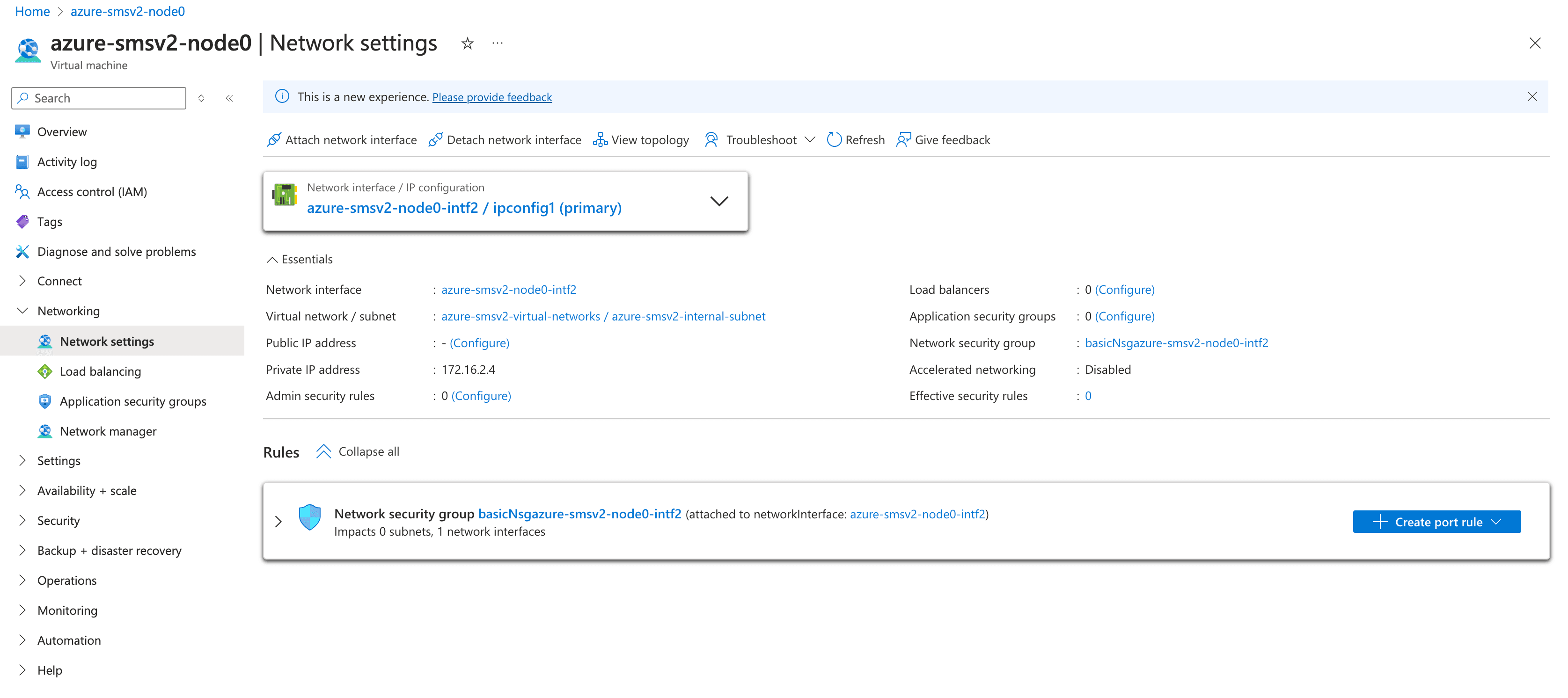

After the VM stops, click
Network settings
. Then clickAttach network interface
.

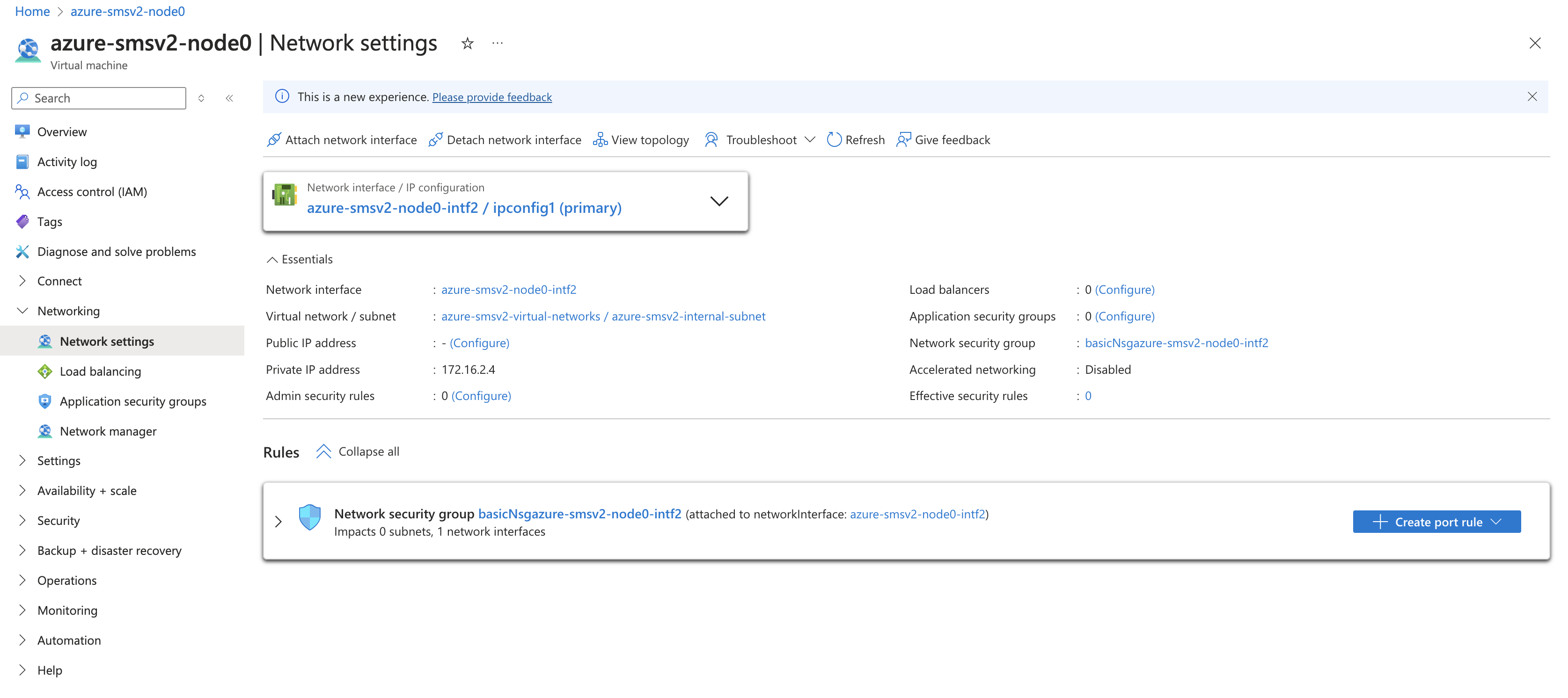

Figure: Add Second Interface

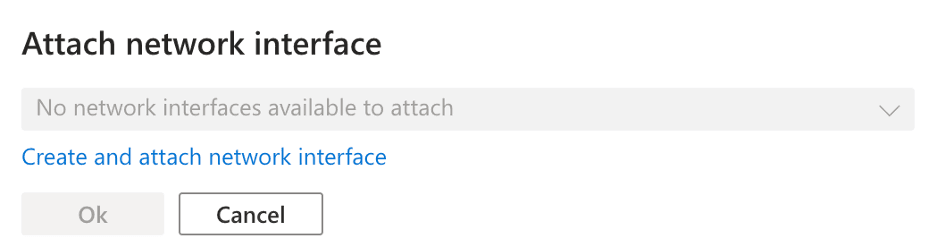

- Click
Create and attach network interface
.
Figure: Add Second Interface
-
Select the resource group previously created for this VM.
-
In the
Name
field, enter a new name for this second interface. -
In the
Subnet
field, enter a new name for this interface. Make sure to reference that this is an internal interface since the external interface was previously created.

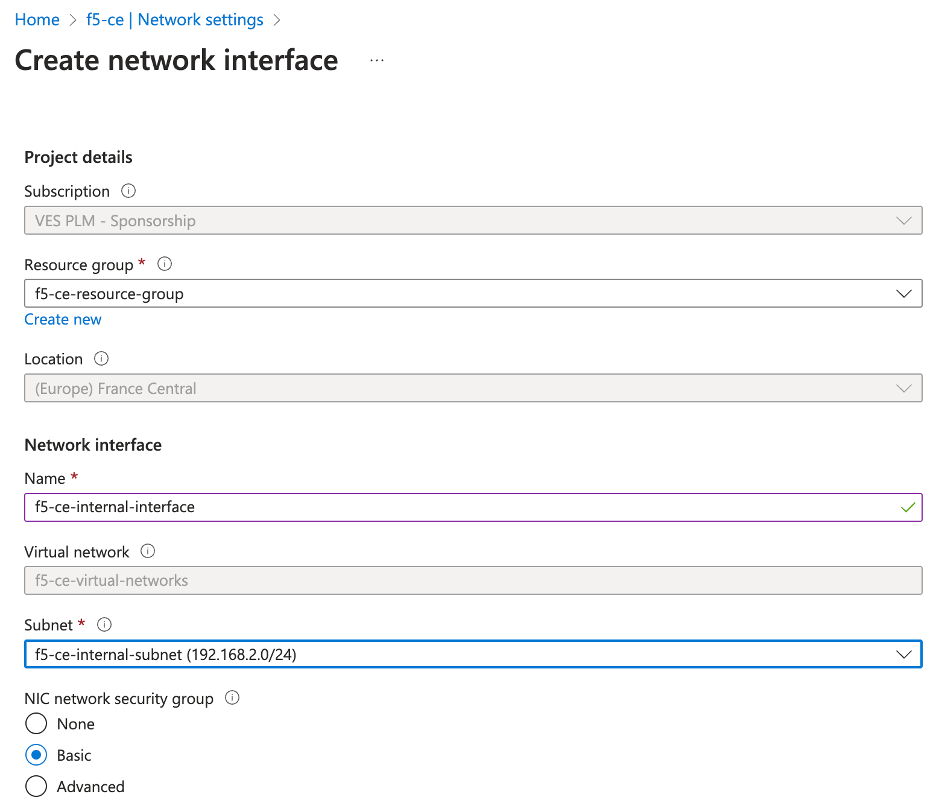

Figure: Add Second Interface
-
Click
Create
. -
After the second interface is attached to your VM, restart the VM.
-
Connect to the CE's local UI to verify that the second interface was properly configured.

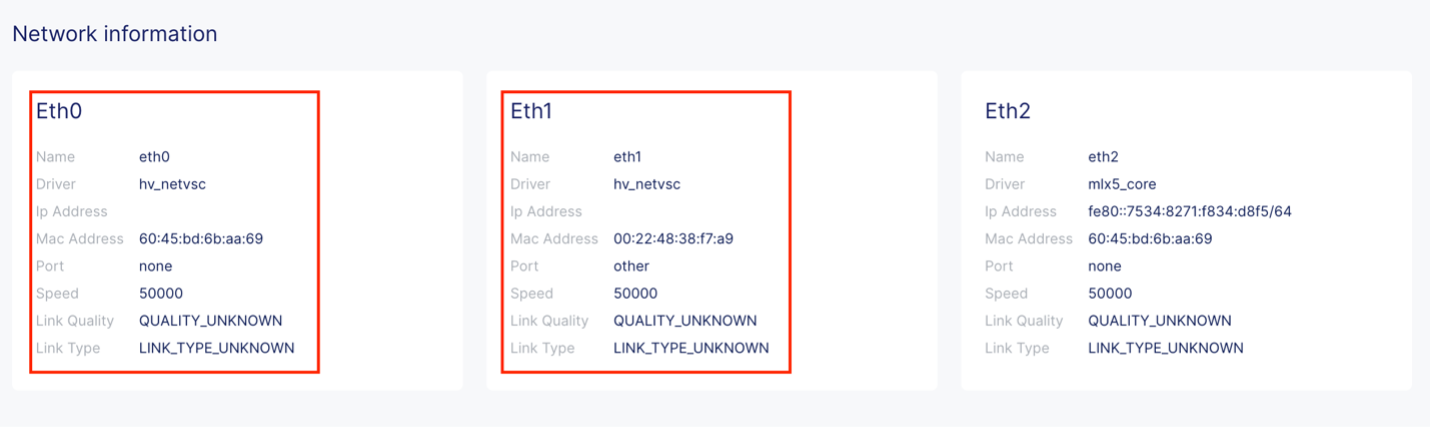

Figure: CE Site Local UI
- Repeat above steps to add second interface for
f5-ce-node2
andf5-ce-node3
.
Deploy Single-Node Site
Follow these steps to create a single-node Secure Mesh Site.
Create Public IP Address
In Azure Console, create a public IP address. You will need to create one public IP address since only one node is being deployed for the CE site.
- Navigate to the
Public IP addresses
creation page and clickCreate
.
Figure: Create Public IP
-
Under
Configuration details
, in theName
field, enter a name for the Public IP. -
Leave the remaining options with their default values.
Figure: Create Public IP
-
Click
Review + create
. -
After validation passes, click
Create
.
Create the CE Virtual Machine
Create the F5 CE VM instance using the previously created parameters. It is recommended that you create a table and fill it with the information prior to deploying the CE instance.
See table below for example parameters and explanations used for this procedure.
Parameter | Value | Notes |
---|---|---|
Name | f5-ce | Name of CE node VM instance. |
Region | France-central | Name of Azure region in which site is deployed. |
Image Name | Volterra VoltMesh and VoltStack Node Free Plan | Located in Azure Marketplace. |
Certified Hardware Name | azure-byol-multi-nic-voltmesh | This is the certified hardware name. |
Instance Type | Standard_D3_v2 | Minimum instance requirements: 4 vCPUs, 14 GB RAM, 80 GB storage for Mesh nodes, and 100 GB storage for App Stack. Recommended instance types are Standard_D3_v2, Standard_D4_v2, and Standard_D5_v2. |
Resource Group | f5-ce-resource-group | Created in Azure Console. |
SLO Subnet ID | f5-ce-external-subnet | Existing subnet. |
SLI Subnet ID | f5-ce-internal-subnet | Existing subnet. |
Key Pair | f5-ce-keypair | Key pair created in Azure Console. |
Security Groups | f5-ce-external-security-group | Name of security group created in Azure Console. |
Public IP Address | f5-ce-pip | IP address created in Azure Console. |
Site Name | f5-ce-demo | Equals ves-io-site-name value. |
Token | Confidential. Value varies. | Value for site token ID generated in F5 Console. |
Storage | 45 GiB for Mesh site/100 GiB for App Stack recommended. | Minimum disk space required. |
Step 1: Create new virtual machine.
- In Azure Console, within your resource group, click
Create
.
Figure: Create VM
-
Use the search bar to locate the right CE image. You can search for "Volterra Free Plan." This procedure uses the image for Volterra VoltMesh and VoltStack Node Free Plan. This plan image corresponds to the
azure-byol-multi-nic-voltmesh
certified hardware. -
After you find the image, click
Create
.
Figure: Select VM Image
Step 2: Configure new virtual machine.
-
Enter a VM name.
-
Ensure the correct region and availability zone are selected.
Figure: Configure VM
- From the
Size
menu, choose the instance type. This procedure usesStandard_D3_v2
as an example. This instance type is the minimum required to deploy an F5 CE Site to Azure cloud.
Figure: Configure VM Instance Type
-
From the
SSH public key source
menu, assign the previously created SSH key pair. -
In the
Username
field, Entercloud-user
as the default user to SSH log into the CE instance.
Figure: Configure VM Username
-
Click
Next:Disk
. -
From the
OS disk size
menu, select128 GiB (E10)
.
Step 3: Configure virtual machine networking.
-
Click
Next:Networking
. -
Ensure the following parameters for network interface configuration:
-
From the
Virtual network
menu, select the network. -
From the
Subnet
menu, select the external interface.
-
Important: You cannot create/assign the internal interface to the virtual machine in this step. It will be added at a later step.
-
From the
Public IP
menu, select the IP previously created. -
For the
NIC network security group
option, selectAdvanced
. This option is needed so that you are able to select the network security group. -
From the
Configure network security group
menu, select the security group previously created. -
Select the
Delete NIC when VM is deleted
option.
Figure: Configure VM Networking
Step 4: Configure advanced settings.
-
Click the
Advanced
tab to skip theManagement
andMonitoring
configuration. -
In the
Custom data
field, copy and paste the user data file information (which includes the site token).
Figure: User Data
Step 5: Complete VM creation.
Click on Review + create
. After validation process completes successfully, click Create
.
Step 6: Track VM deployment progress.
You can track deployment progress by connecting to your instance's public IP on port 65500. It may take a few minutes for the web interface to appear.
The default username is admin
and the default password is Volterra123
. You will be required to change the default password on your first login attempt.
The CE will show in Approval
state. This means that the CE is awaiting registration approval from F5 Console. Before approving registration, you need to add a second interface to the CE site.
Figure: Site Local UI
Add Second Interface to Single-Node Site
-
In Azure portal, select your VM and click
Stop
. -
After the VM stops, click
Network settings
. Then clickAttach network interface
.
Figure: Add Second Interface
- Click
Create and attach network interface
.
Figure: Add Second Interface
-
Select the resource group previously created for this VM.
-
In the
Name
field, enter a new name for this second interface. -
In the
Subnet
field, enter a new name for this interface. Make sure to reference that this is an internal interface since the external interface was previously created.
Figure: Add Second Interface
-
Click
Create
. -
After the second interface is attached to your VM, restart the VM.
-
Connect to the CE's local UI to verify that the second interface was properly configured.
Figure: CE Site Local UI
Create and Register Site
Follow the Create Secure Mesh Site documentation to create a Secure Mesh Site object and register the nodes to the site.
Additional Settings for Application Traffic Flow to Work
For services like network connectivity, application connectivity, and delivery to work correctly, you need to enable additional settings for Azure CE nodes. You need to enable the IP forwarding
setting on each NIC of the Azure CE node.
-
In Azure portal, navigate to
Network settings
for the CE node. -
Click the NIC for the CE node.
Figure: Node NIC Settings

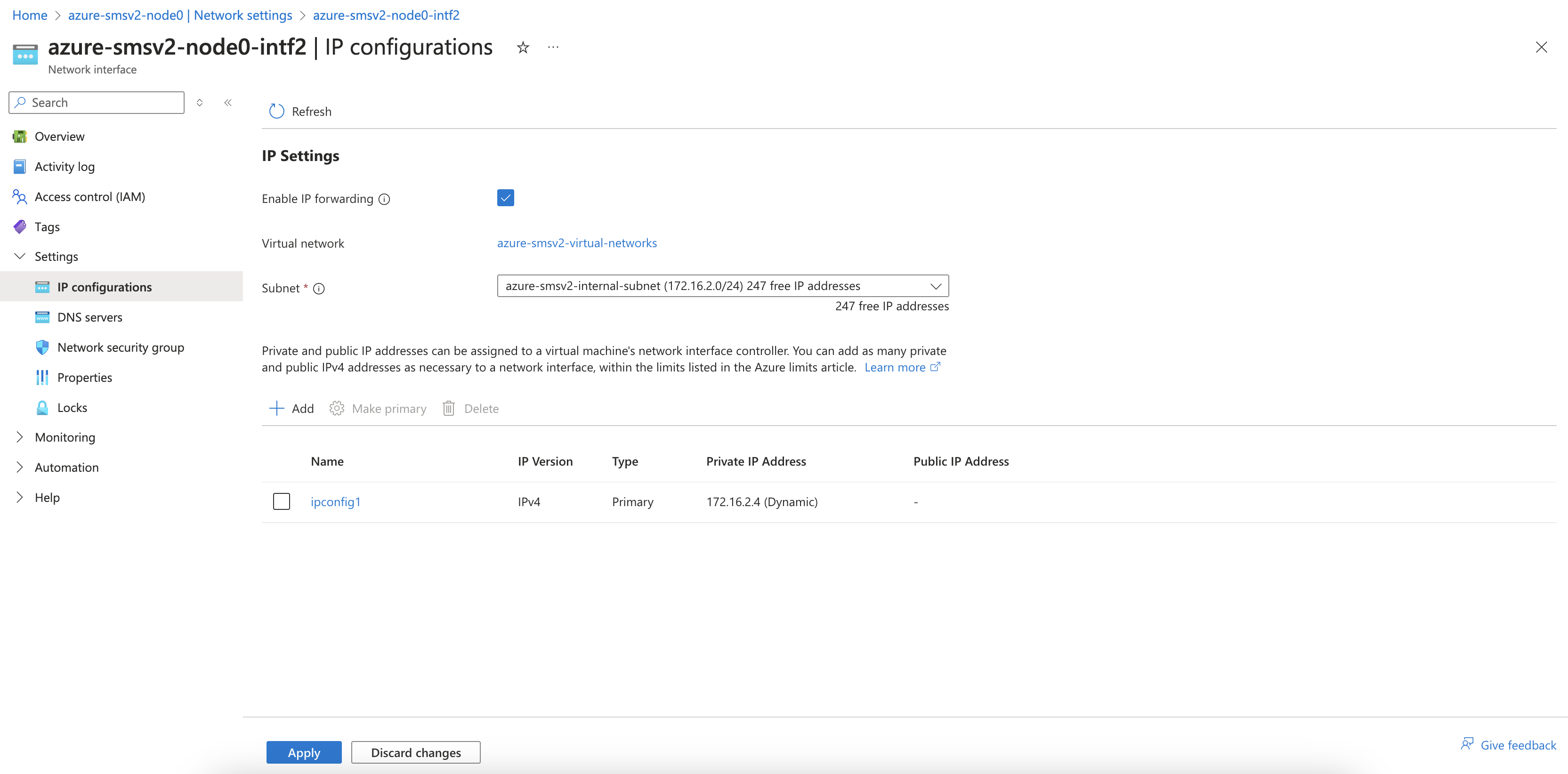

Select Settings
> IP configurations
and enable the Enable IP forwarding
checkbox.
Figure: Enable IP Forwarding
Troubleshooting
For troubleshooting and opening a support case, see the Troubleshooting Manual Site Deployment Registration Issues guide. It provides step-by-step instructions to debug and resolve the issues that may arise due to Distributed Cloud published Terraform errors, networking and security misconfiguration, or CE internal process issues. The guide also provides instructions for contacting the F5 Distributed Cloud Support Team if you are unable to resolve the issue.
Concepts
References
On this page:
- Objective
- Site Types and Scenarios
- Considerations for Sites Behind NAT Gateway
- Prerequisites
- Procedure
- Create External Network Security Group
- Create SSH Key Pairs
- Existing Resource Group Details
- Create Site Token
- Modify the User Data File
- Deploy Multi-Node Site
- Create Public IP Addresses
- Create the CE Virtual Machines
- Add Second Interface to Multi-Node Site
- Deploy Single-Node Site
- Create Public IP Address
- Create the CE Virtual Machine
- Add Second Interface to Single-Node Site
- Create and Register Site
- Additional Settings for Application Traffic Flow to Work
- Troubleshooting
- Concepts
- References
