Create KVM Site
Objective
F5® Distributed Cloud Services support site deployment for a Kernel-based Virtual Machine (KVM) with libvirt. This document explains how to perform Distributed Cloud Services node installation on a server using a KVM with libvirt and to perform site registration on F5® Distributed Cloud Console (Console).
The following is a sample topology for the hypervisor and guest machine setup. The sample shows three guest virtual machines installed with F5 Distributed Cloud Services Site software running on the hypervisor host.
Only one virtual machine is required. However, if you require a high-availability (HA) deployment, you must deploy three VMs.
Important: Each virtual machine (VM) must have the same cluster name and a unique hostname.

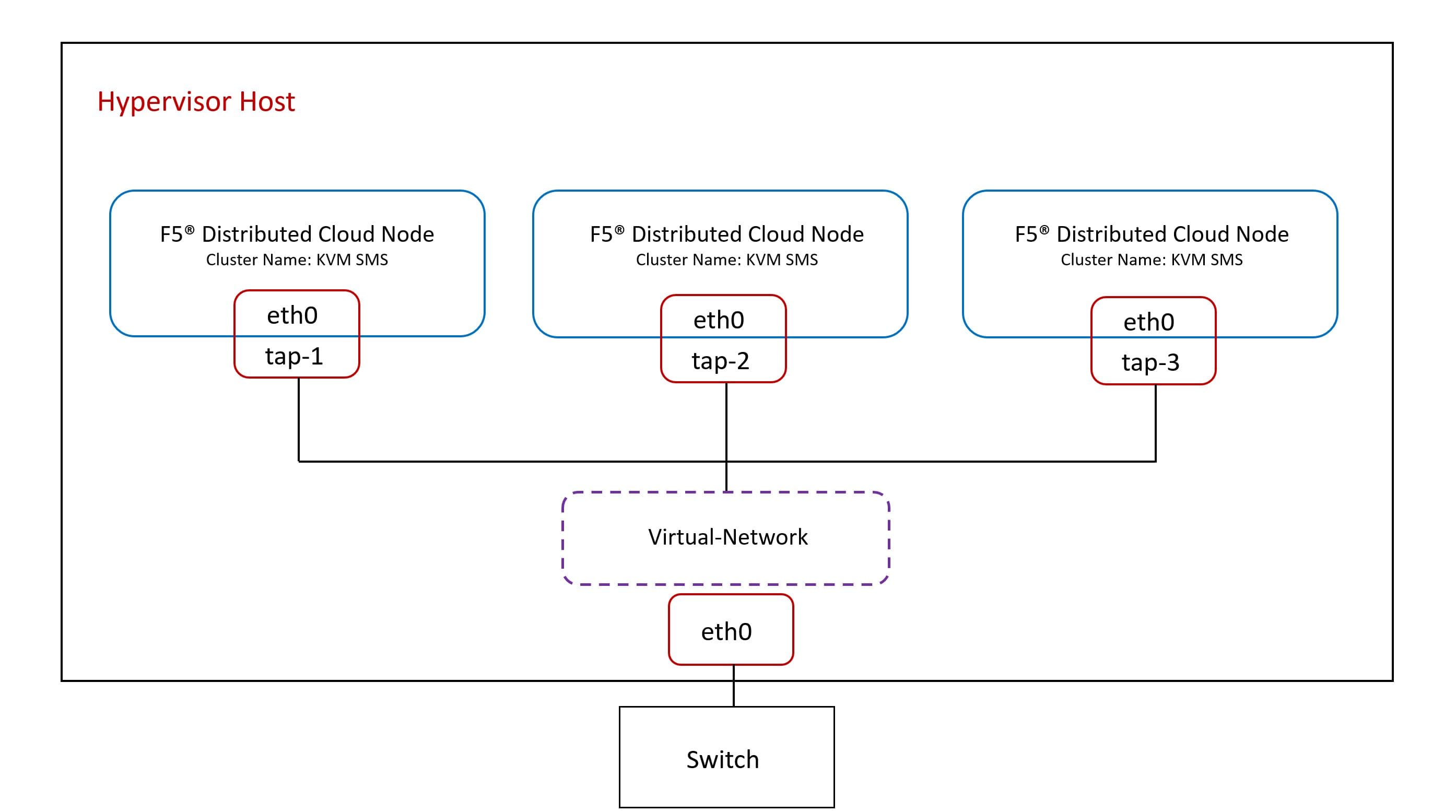

Figure: Hypervisor Topology
There are three ways to deploy a Secure Mesh Site on KVM. Review the prerequisites and then see the following sections for information:
- Deploy a Secure Mesh Site with an ISO Image
- Deploy a Secure Mesh Site with a QCOW2 Image
- Deploy a Secure Mesh Site Using Terraform Automation (QCOW2)
Prerequisites
-
A Distributed Cloud Services Account. If you do not have an account, see Create an Account.
-
A server supporting hardware virtualization. The KVM only works if the server CPU has hardware virtualization support (Intel VT or AMD-V).
-
KVM installed and running.
-
At least one interface with Internet access. Distributed Cloud Services Node Zero-Touch Provisioning requires Internet connectivity to the Distributed Cloud Console.
-
A KVM image file. Click here to download.
-
Resources required per node: Minimum 4 vCPUs and 14 GB RAM. 80 GB is the minimum amount required for storage. However, to deploy an F5 Distributed Cloud App Stack Site, F5 recommends a minimum of 100 GB of storage. For a full listing of the resources required, see the Customer Edge Site Sizing Reference guide. All the nodes in a given CE Site should have the same resources regarding the compute, memory, and disk storage. When deploying in cloud environments, these nodes should use the same instance flavor.
-
Allow traffic from and to the Distributed Cloud public IP addresses to your network and allowlist related domain names. See Firewall and Proxy Server Allowlist Reference guide for the list of IP addresses and domain names.
-
To ensure intra-cluster communication checks, you must enable Internet Control Message Protocol (ICMP) between the Customer Edge (CE) nodes on the Site Local Outside (SLO) interfaces.
Important: After you deploy the CE Site, the IP address for the SLO interface cannot be changed. Also, the MAC address cannot be changed.
- By proceeding with the installation, download and/or access and use, as applicable, of the Distributed Cloud Services software, and/or Distributed Cloud Services platform, you acknowledge that you have read, understand, and agree to be bound by this agreement.
Note: The following procedures are based on
virt-install
packages. You can also usevirt-manager
using the same parameters.
Create Secure Mesh Site
Before you deploy a single-node or multi-node site (for HA) on KVM, you must create a site in the F5 Distributed Cloud Console. For information, see Create Secure Mesh Site.
When you create your site, make sure to use the following settings:
Name
: The cluster name. For HA deployments, each node must have the same cluster name.Hostname
: A unique hostname for each site. To configure an HA deployment, each site must have a different hostname.Generic Server Certified Hardware
: For single interface deployments, set tokvm-voltmesh
. For two-interface (OUTSIDE, INSIDE) deployments, set tokvm-regular-nic-voltmesh
.
Important: When you create a Secure Mesh Site in the Distributed Cloud Console, you must also create a site token. You use that same site token later when you deploy the Secure Mesh Site on KVM.
Deploy a Secure Mesh Site with an ISO Image
To deploy a Secure Mesh Site from the ISO image you downloaded from F5, you must complete the following high-level steps:
- Spawn a virtual machine (VM) to host the Secure Mesh Site.
- Install the Red Hat Linux 9 (RHEL9) operating system (OS) on the VM.
- Provision Distributed Cloud configuration.
- Register the site and complete Distributed Cloud configuration.
Spawn a VM
To spawn a VM from an ISO image that you downloaded from F5, enter the following commands.
% qemu-img create /var/lib/libvirt/images/kvm-sms.qcow2 45G
% virt-install \
--name kvm-sms \
--vcpus 4 \
--memory 14336 \
--network network=default,model=virtio \
--disk path=/var/lib/libvirt/images/kvm-sms.qcow2,bus=virtio,cache=none,size=45 \
--cdrom /var/lib/libvirt/images/RHEL-9.2024.11-Installer.iso \
--accelerate \
--os-variant rhl9 \
--virt-type kvm \
--noautoconsole \
--graphics vnc
Depending on how you want to deploy your site, you can also consider the following actions:
- To deploy a site with two interfaces (
OUTSIDE
,INSIDE
), add another network section. - To build an HA cluster, spawn two additional VMs.
Install the RHEL9 Operating System
The following steps explain how to install the RHEL9 OS on your VM with the ISO image that you downloaded from F5.
Step 1: Install RHEL9.
Connect to a VNC console and complete the following steps to select the language and disk. To connect, type: virsh vncdisplay kvm-sms
.
For KVM deployments, you must select VDA
as the disk type. You specify disk size when you spawn the VM.

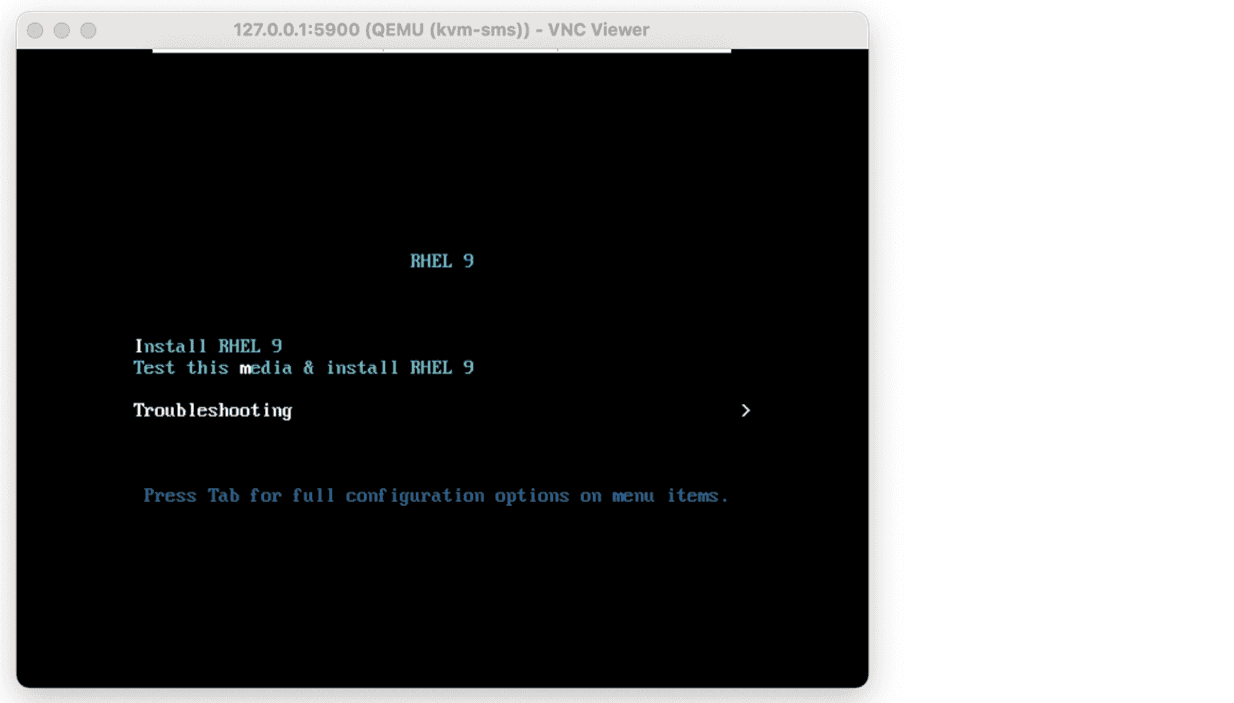

Figure: VNC console

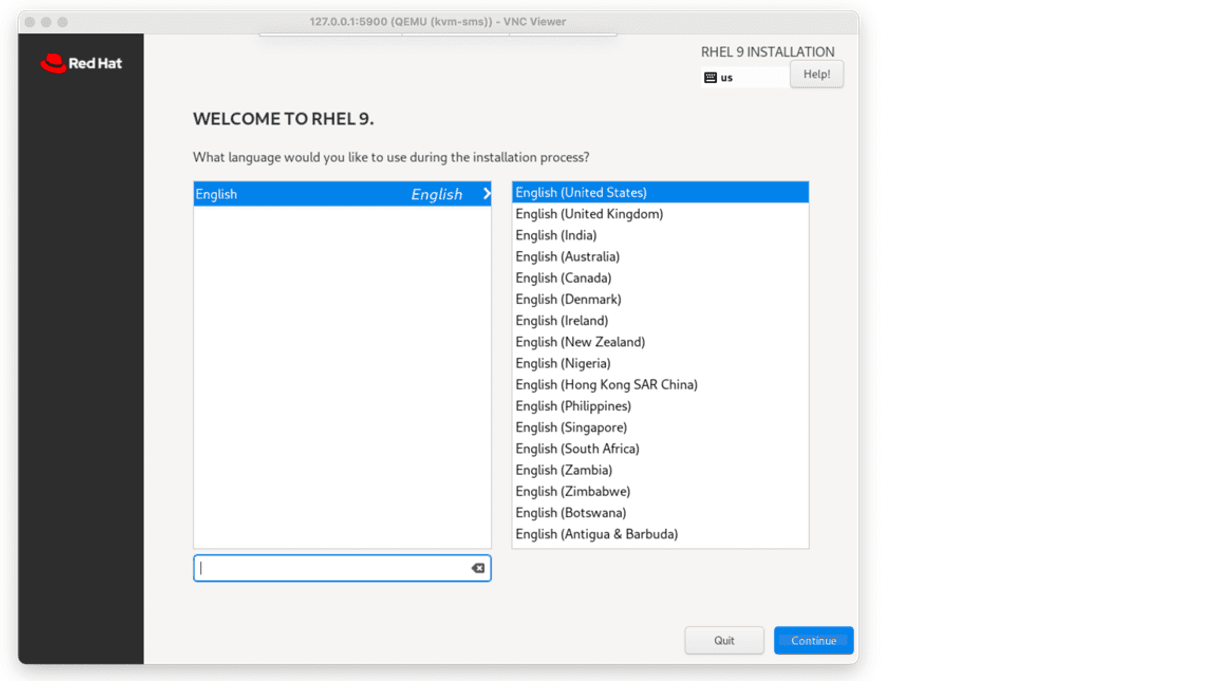

Select the language you want to use.
Figure: Language selection
Select the disk where you want to deploy the RHEL9.

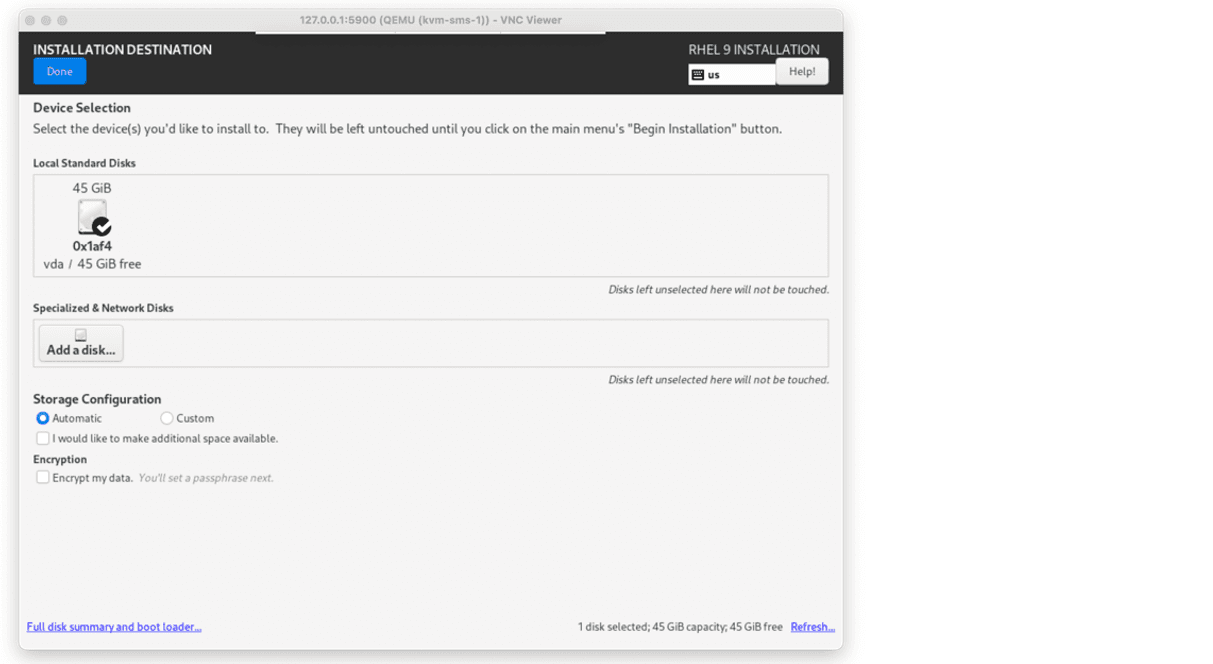

Figure: Disk selection
Review your configuration settings.

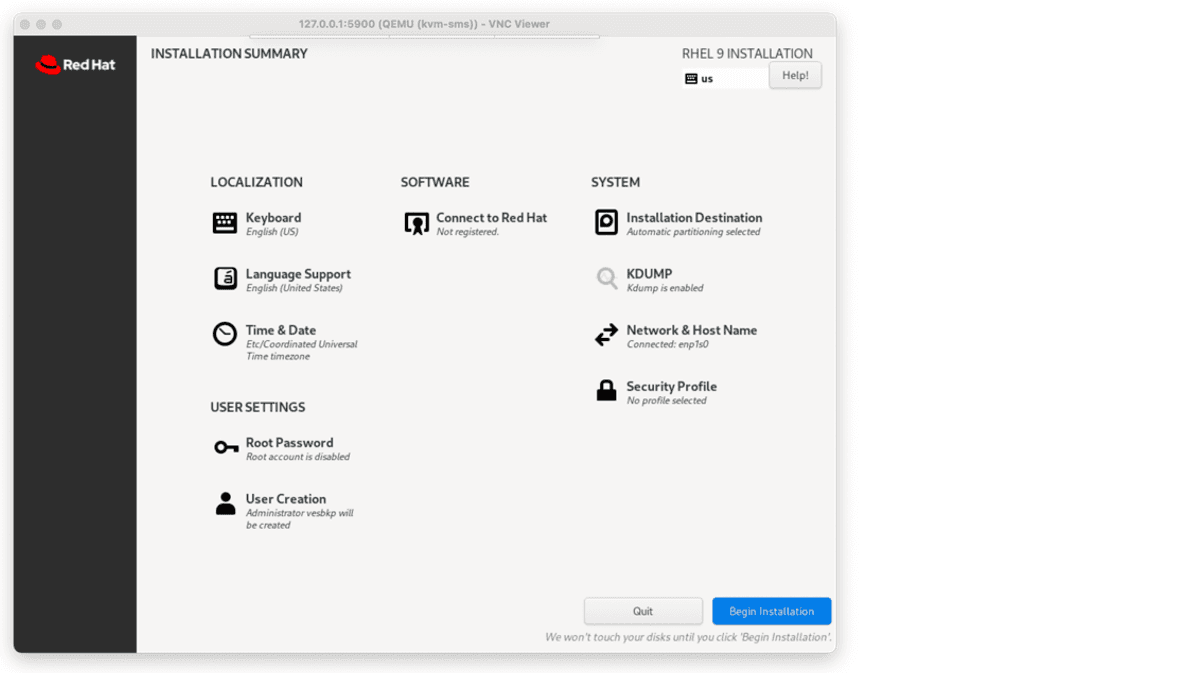

Figure: Configuration settings
Complete the installation.

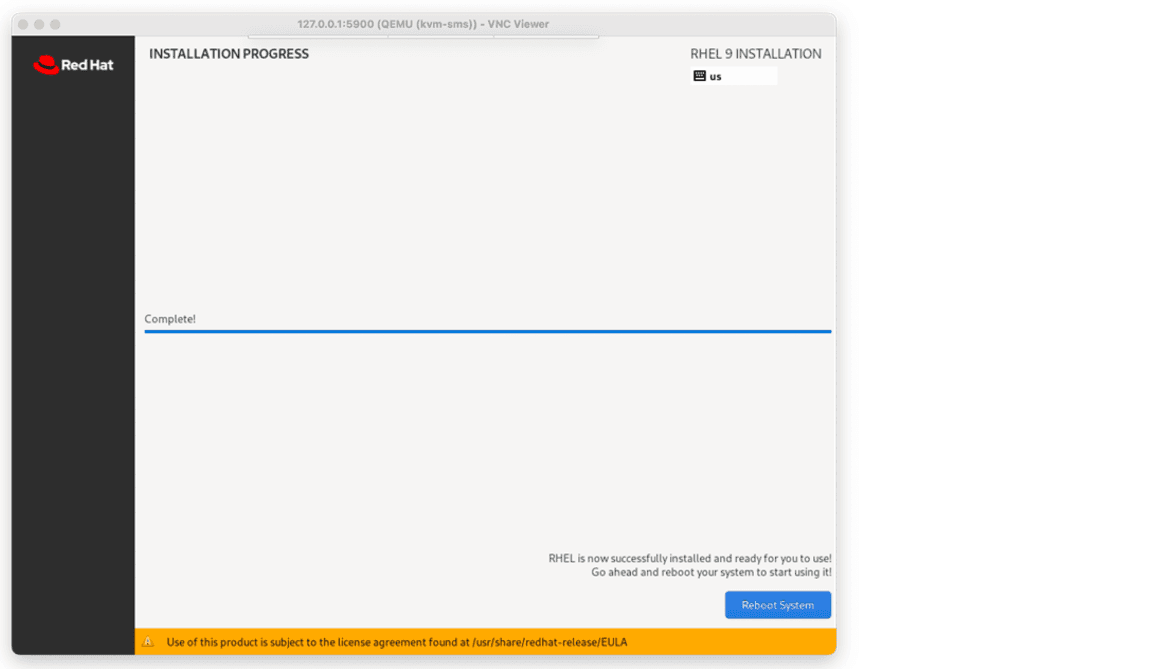

Figure: Installation progress
Step 2: Restart the VM.
After the VM reboots, you must restart the VM.
To restart the VM, type: virsh start kvm-sms
.
Important: If you are configuring an HA deployment, you must restart all of the nodes in the HA cluster.
Note: After you reboot the VM, it takes a few minutes to prepare the site shell. Wait a few minutes before you start provisioning Distributed Cloud configuration.
Provision Distributed Cloud Configuration
Step 1: Connect to the VM.
Do one of the following to connect to the VM:
To connect to the VM through a console window:
- Open a console window and type
virsh console kvm-sms
: - When prompted, enter the following information:
- Username:
admin
- Default password:
Volterra123
- Username:
To connect to the VM using SSH:
- From a command prompt, type
virsh domifaddr kvm-sms
. - Type
ssh admin@192.168.122.9
.

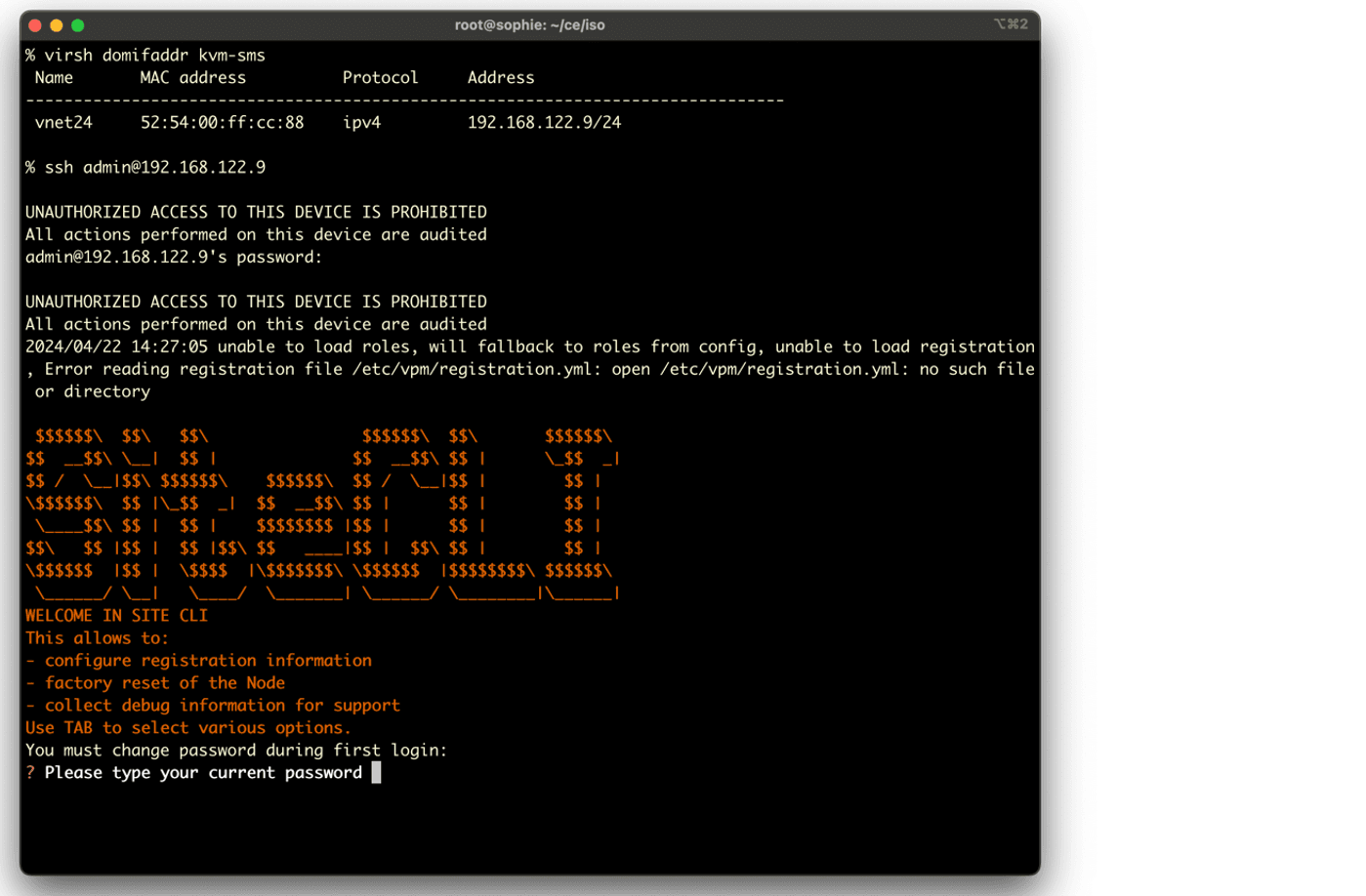

Step 2: Change the VM admin password.
The first time you connect to the VM, you are prompted to change the KVM Secure Mesh Site admin
password.
Figure: Change password
Step 3: Configure KVM Secure Mesh Site network.
To configure the KVM Secure Mesh Site network, enter the required configuration information.

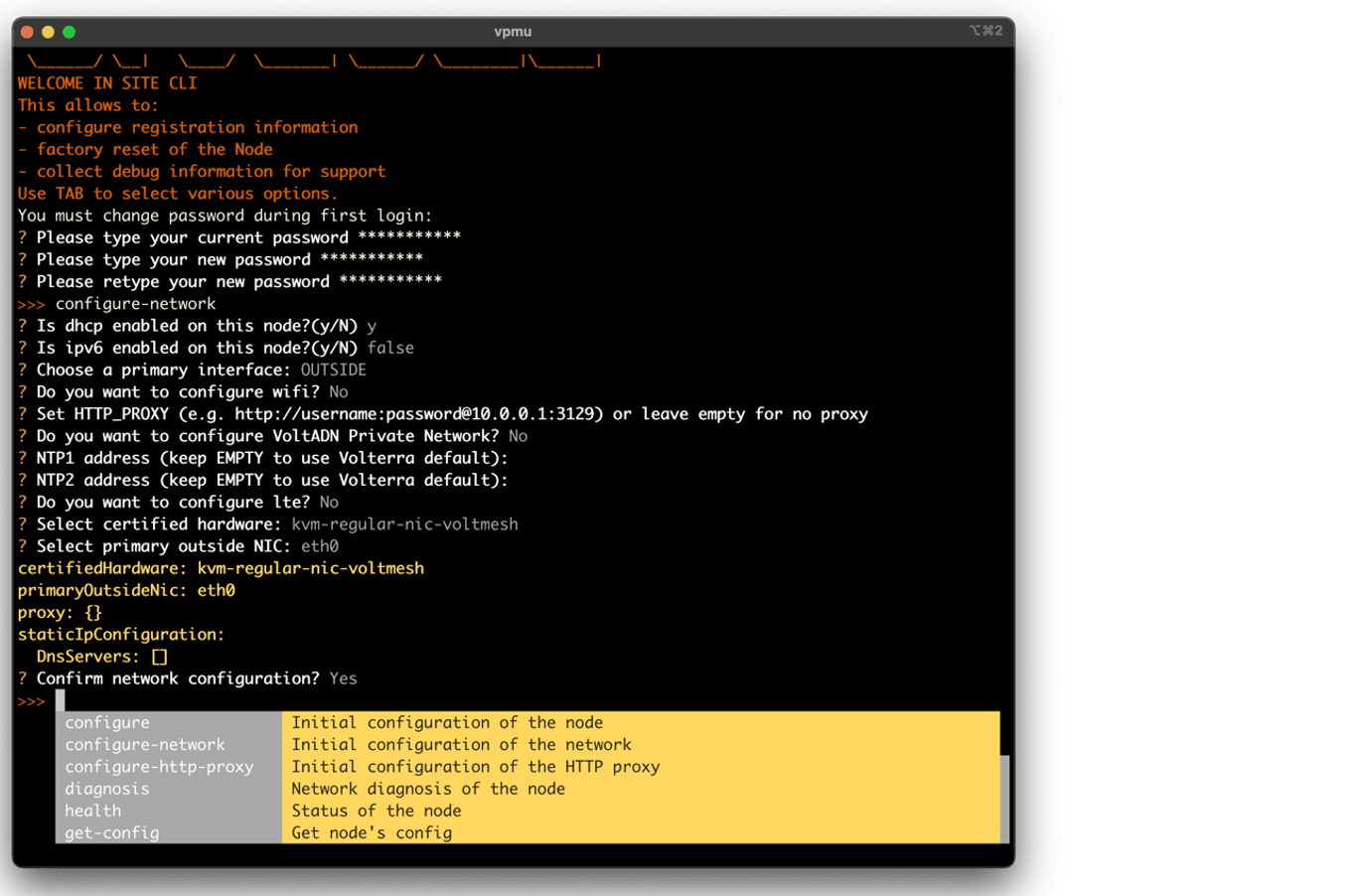

Figure: Configuration information
After you provide the required network configuration information, the system automatically reboots.
Step 4: Configure KVM Secure Mesh Site deployment parameters.
Configure KVM Secure Mesh Site deployment parameters.
Important: You must use the same
cluster name
,hostname
andcertified hardware
parameter values and the same site token that you used when you added the Secure Mesh Site in the Distributed Cloud Console.

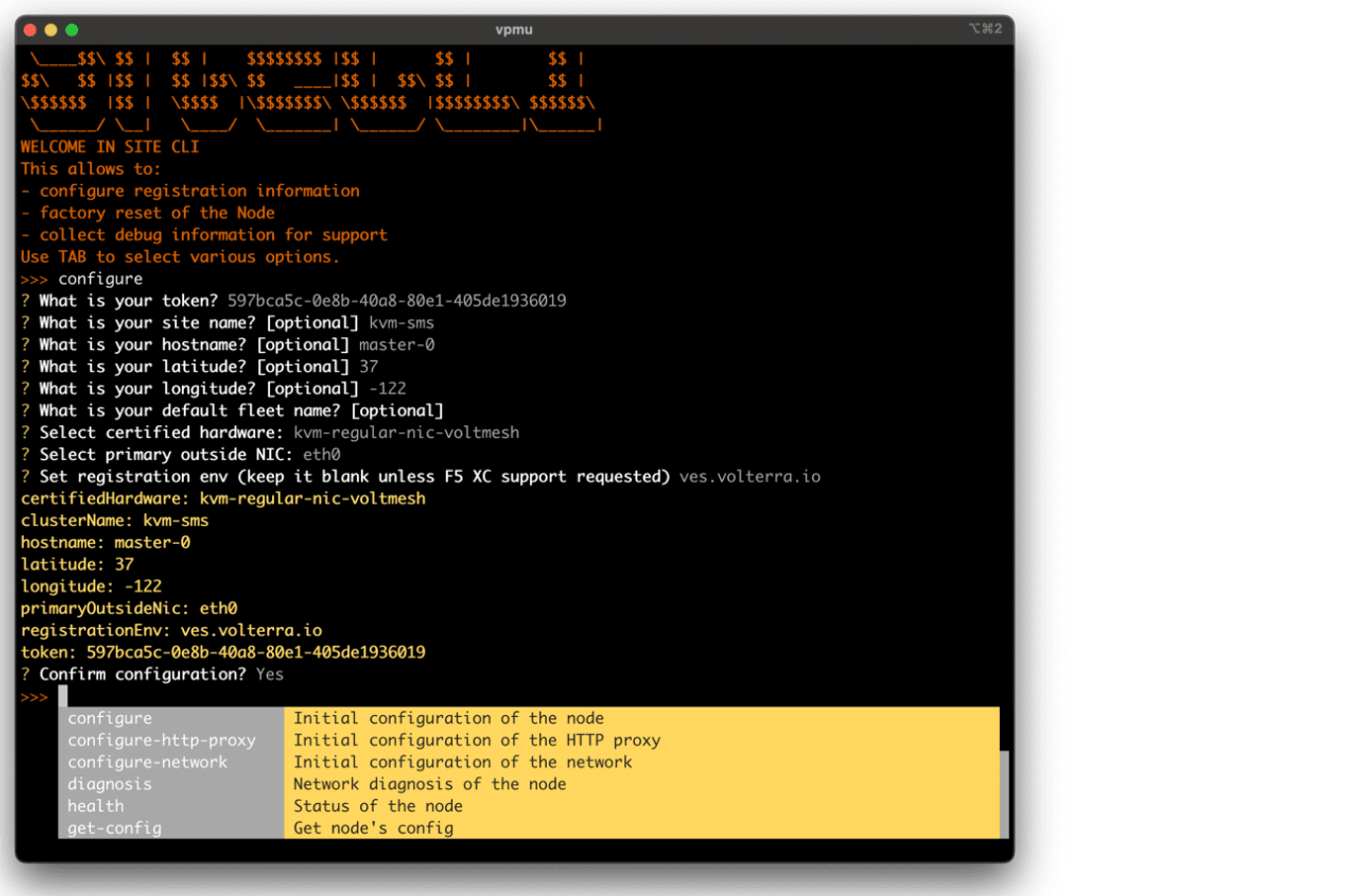

Figure: KVM Secure Mesh Site deployment parameters
Step 5: Register the site and complete Distributed Cloud configuration.
After you spawn the VM and deploy a Secure Mesh Site, see Register the Site to finish Distributed Cloud configuration.
Deploy a Secure Mesh Site with a QCOW2 Image
To deploy a Secure Mesh Site from a QCOW2 image, you must complete the following high-level steps:
- Spawn a VM to host the Secure Mesh Site.
- Register the site and complete Distributed Cloud configuration.
Templates for building files can be found under these links. This repository is publicly available.
- https://github.com/f5devcentral/f5-xc-kvm-ce/blob/main/terraform/cloudinit/user-data.tpl
- https://github.com/f5devcentral/f5-xc-kvm-ce/blob/main/terraform/cloudinit/meta-data.tpl
Before you begin, you must edit the following variables in user-data.tpl
to match your entries in your Secure Mesh Site:
cluster-name
host-name
latitude
andlongitude
xc-environment-api-endpoint
: You must set this toves.volterra.io
certified-hw
: For single interface deployments, replacecertified-hw
withkvm-voltmesh
. For two-interface (OUTSIDE, INSIDE) deployments, replacecertified-hw
withkvm-regular-nic-voltmesh
.
Step 1: Spawn a VM to host the Secure Mesh Site.
To spawn a VM from a QCOW2 image, enter the following commands.
% genisoimage -output cloud-init.iso -volid cidata -joliet -rock user-data meta-data
% cp rhel-9.2024.6-20240216073447.qcow2 /var/lib/libvirt/images/kvm-sms.qcow2
% virt-install \
--name kvm-sms \
--vcpus 4 \
--memory 14336 \
--network network=default,model=virtio \
--disk /var/lib/libvirt/images/kvm-sms.qcow2,device=disk,bus=virtio,format=qcow2 \
--disk cloud-init.iso,device=cdrom \
--import \
--os-variant rhl9 \
--virt-type kvm \
--accelerate \
--noautoconsole \
--graphics none
Step 2: Register the site and complete Distributed Cloud configuration.
After you spawn the VM and deploy a Secure Mesh Site, see Register the Site to finish Distributed Cloud configuration.
Deploy a Secure Mesh Site Using Terraform Automation (QCOW2)
This is the recommended way to deploy a KVM Secure Mesh Site. View the README file for deployment information: https://github.com/f5devcentral/f5-xc-kvm-ce.
The repository includes all automation needed to deploy a KVM Secure Site Mesh with one terraform apply command.
Register the Site
After the Distributed Cloud Services Node is installed, it must be registered as a site in the Distributed Cloud Console.
Note: The USB allowlist is enabled by default. If you change a USB device, such as a keyboard after registration, the device no longer functions.
Single-Node Site Registration
Step 1: Navigate to the site registration page.
-
Log in to the Distributed Cloud Console.
-
Click
Multi-Cloud Network Connect
. -
Click
Manage
>Site Management
>Registrations
.
Step 2: Complete site registration.
-
Under
Pending Registrations
, find the name of your node and click the blue checkmark. -
In the form that appears, fill in all required fields with the asterisk symbol (
*
). -
If you did not previously, enter a latitude value and a longitude value.
-
Enter other configuration information, if needed.
-
Click
Save and Exit
.
Step 3: Check site status and health.
It might take a few minutes for the site registration information to update.
-
Click
Sites
and then click on your site name. -
Click the
Dashboard
tab and verify the following information:-
The
Update Status
field has aSuccessful
value for theOperating System
section. -
The
Update Status
field has aSuccessful
value for theF5 Software Status
section. -
The
Tunnel status
andControl Plane
fields under theConnectivity
section haveUp
values.
-
Multi-Node Site (HA) Registration
Step 1: Navigate to the site registration page.
-
Log into Console.
-
Click
Multi-Cloud Network Connect
. -
Click
Manage
>Site Management
>Registrations
.
Step 2: Accept the registration requests.
-
Under
Pending Registrations
, find the name of each node and then click the blue checkmark to accept the registration requests from each of your nodes. -
Enter the same values for the following parameters for all the registration requests:
-
In the
Cluster name
field, enter a name for the cluster. Make sure that all master nodes have the same name. -
In the
Cluster size
field, enter3
. Ensure that all master nodes have the same cluster size.
-
-
Enter all mandatory fields marked with the asterisk (
*
) character.
Step 3: Check site status and health.
It might take a few minutes for the site health and connectivity score information to update.
-
Click
Sites
and then click on each of your site names. -
Click the
Dashboard
tab and verify the following information:-
The
Update Status
field has aSuccessful
value for theOperating System
section. -
The
Update Status
field has aSuccessful
value for theF5 Software Status
section. -
The
Tunnel status
andControl Plane
fields under theConnectivity
section haveUp
values.
-
Access Site Local UI
After you create and register your site, you can access its local user interface (UI) to perform certain configuration and management functions. For more information, see Access Site Local User Interface.
