Roles
Overview
This guide provides an overview of Role-based Access Control (RBAC) for F5 Distributed Cloud Services and includes instructions for managing roles. RBAC helps define and enforce user permissions within the platform.
Refer to the Role-based Access Control Concepts section for a comprehensive understanding of RBAC terms and concepts.
Prerequisites
A valid F5 Console Account is required. If you do not have an account, see Getting Started with Console.
View Roles, Groups and API Groups
You can view predefined roles policy rules, groups and various API groups information in the F5® Distributed Cloud Console.
Step 1: Log into F5 Distributed Cloud Console, view in-built roles policies.
- Open F5 Distributed Cloud Console homepage, select
Administration
box.

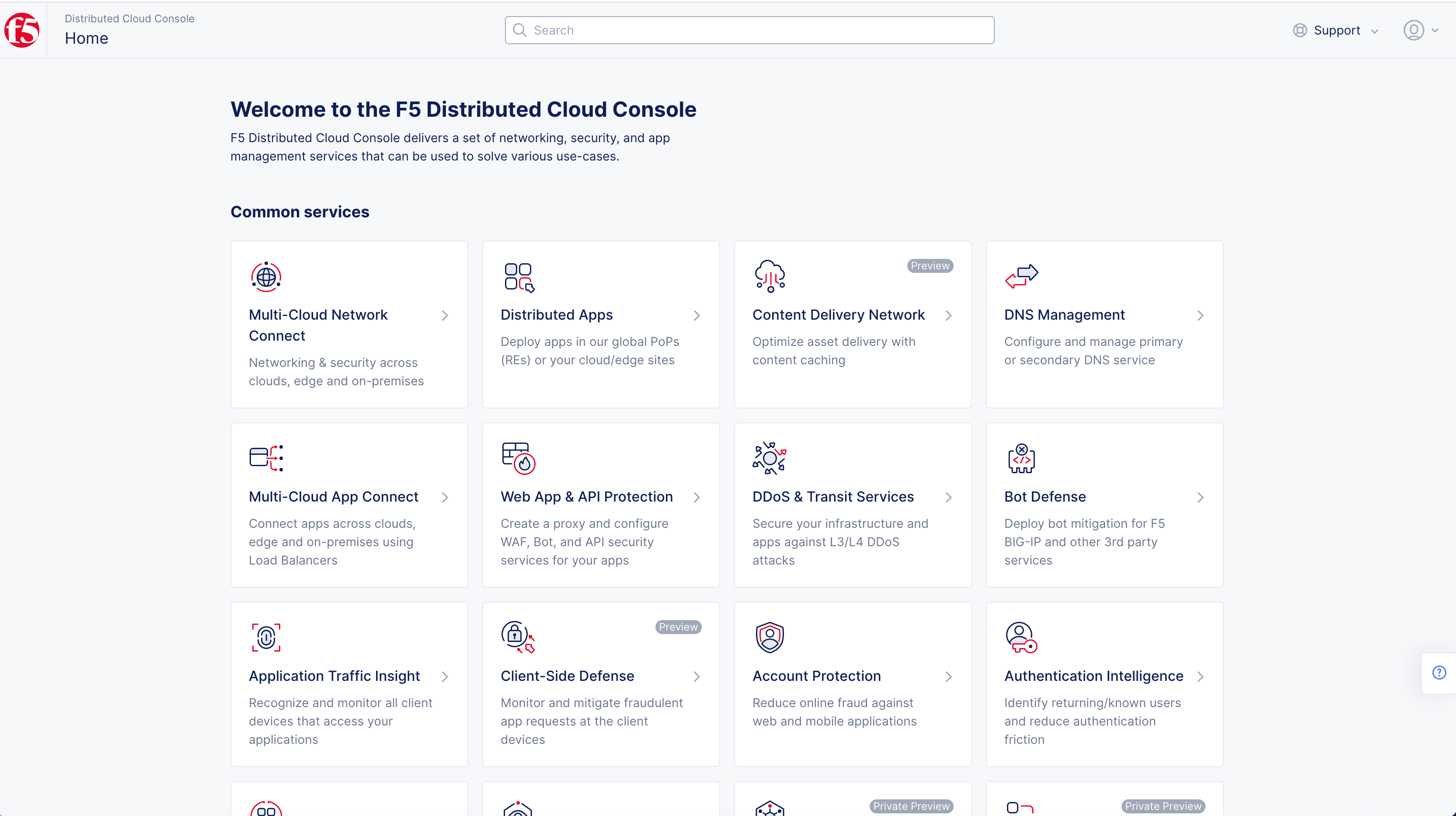

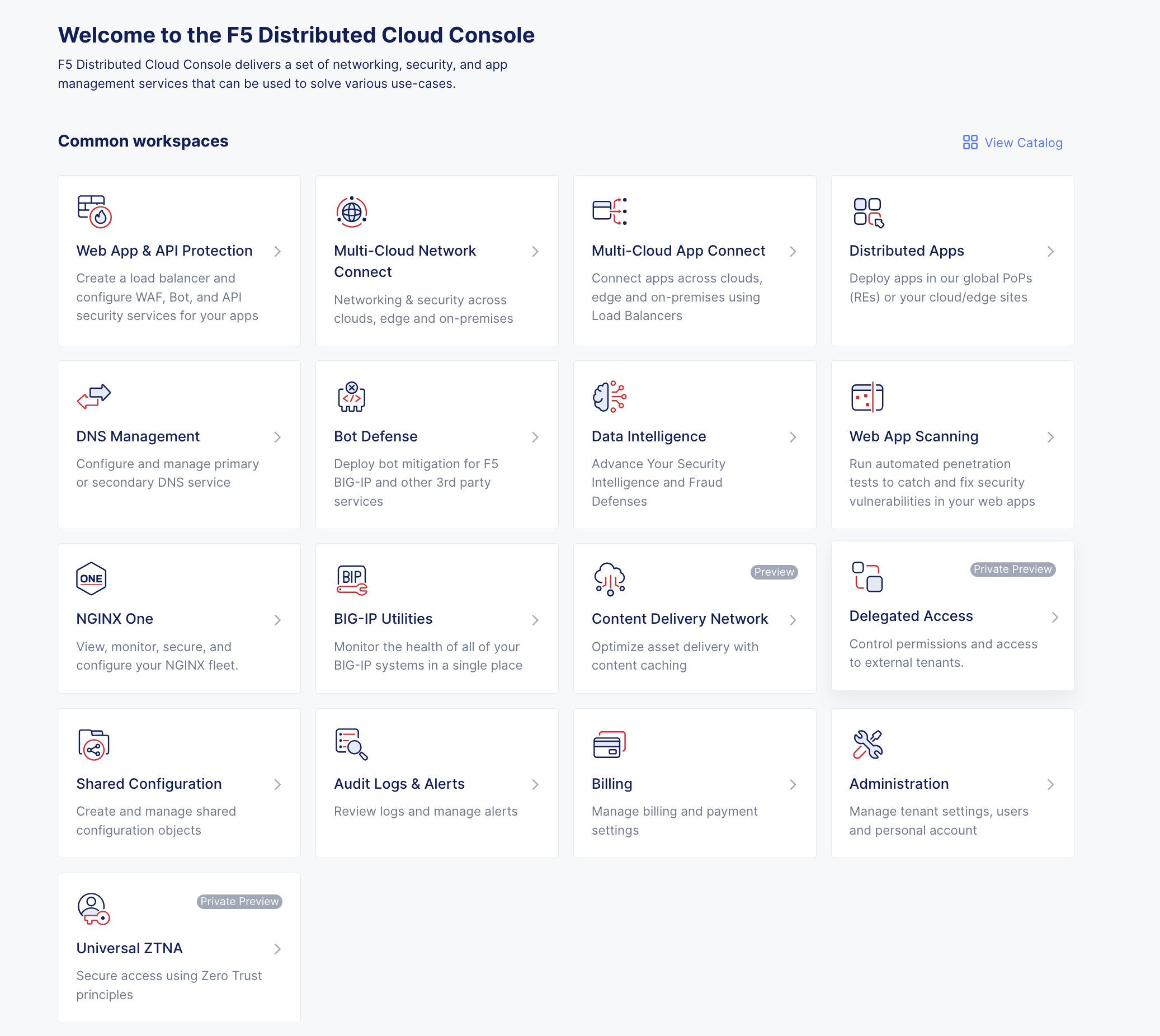

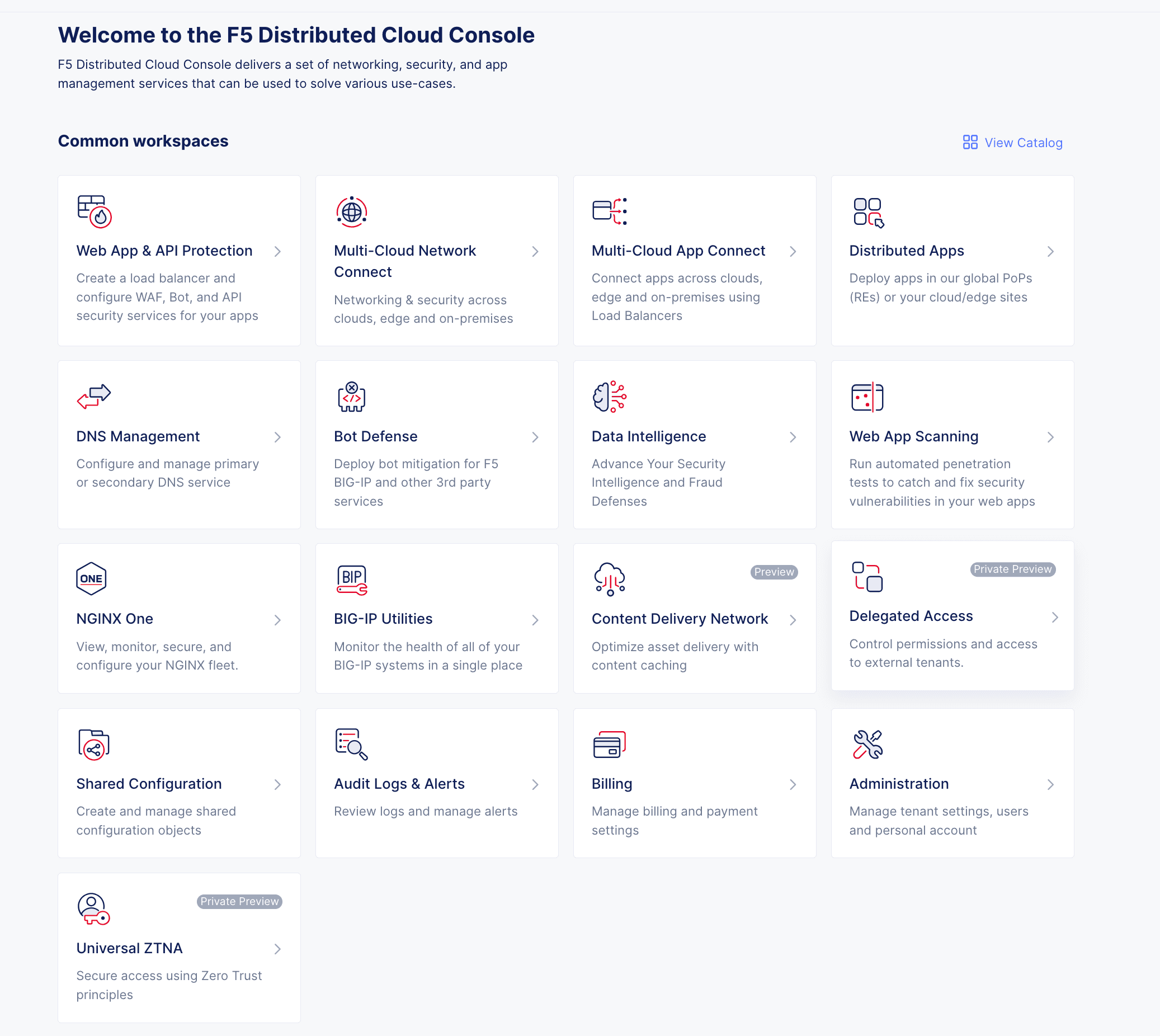

Figure: Homepage
-
Select
IAM
in left column menu > selectRoles
. -
Select
>
for any policy from the displayed list to view the policy information in JSON format.

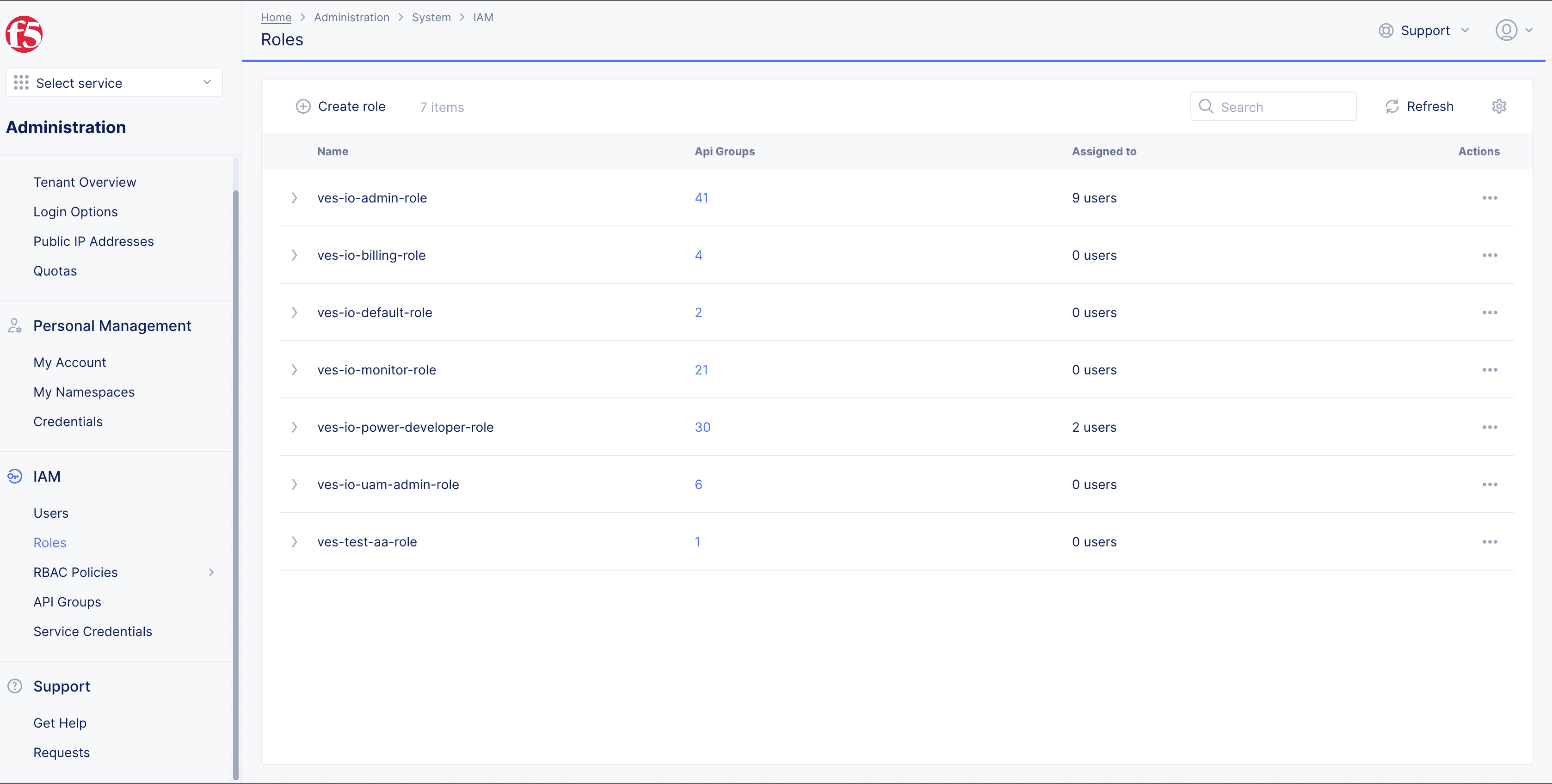

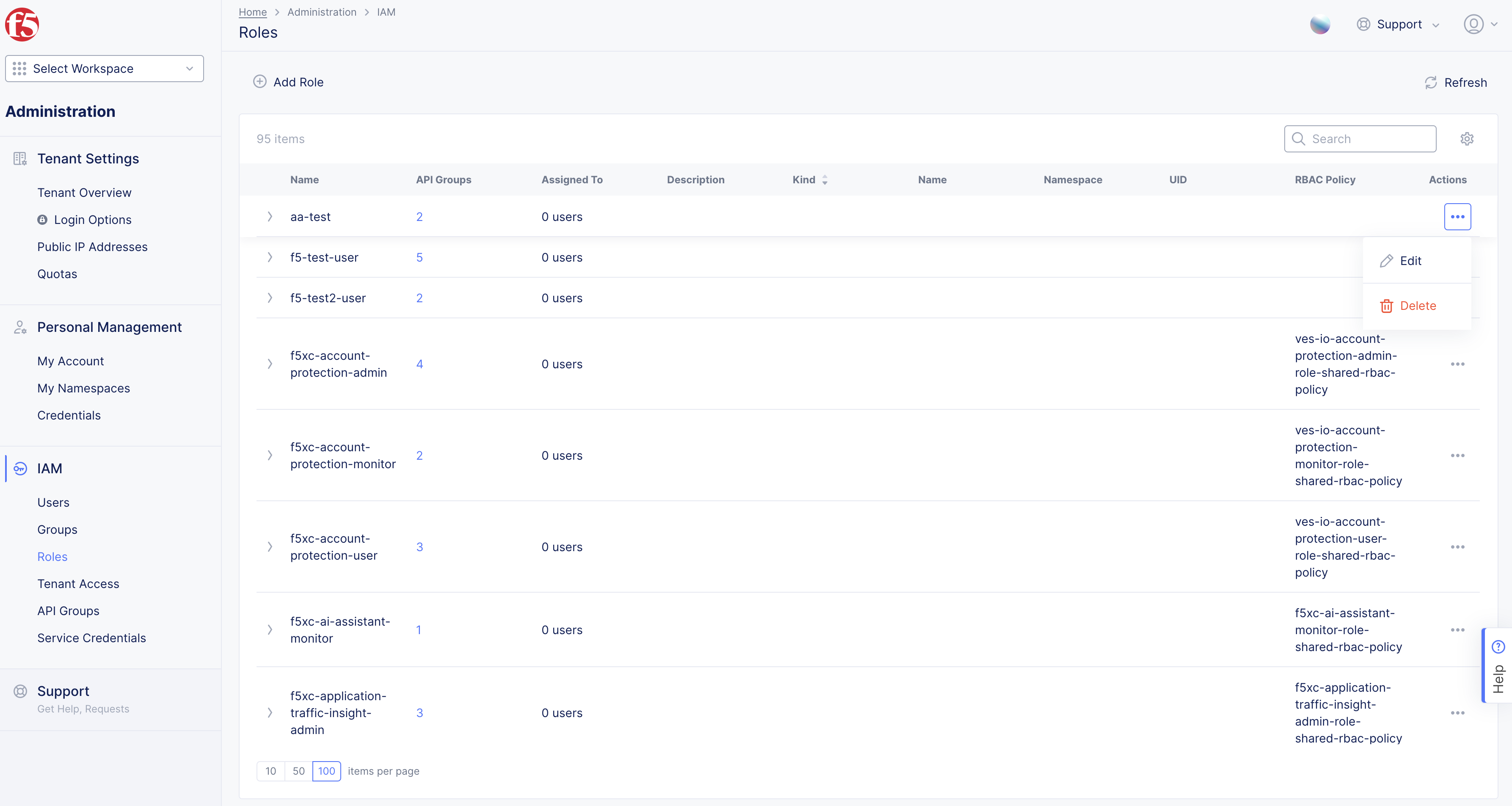

Figure: Open Roles

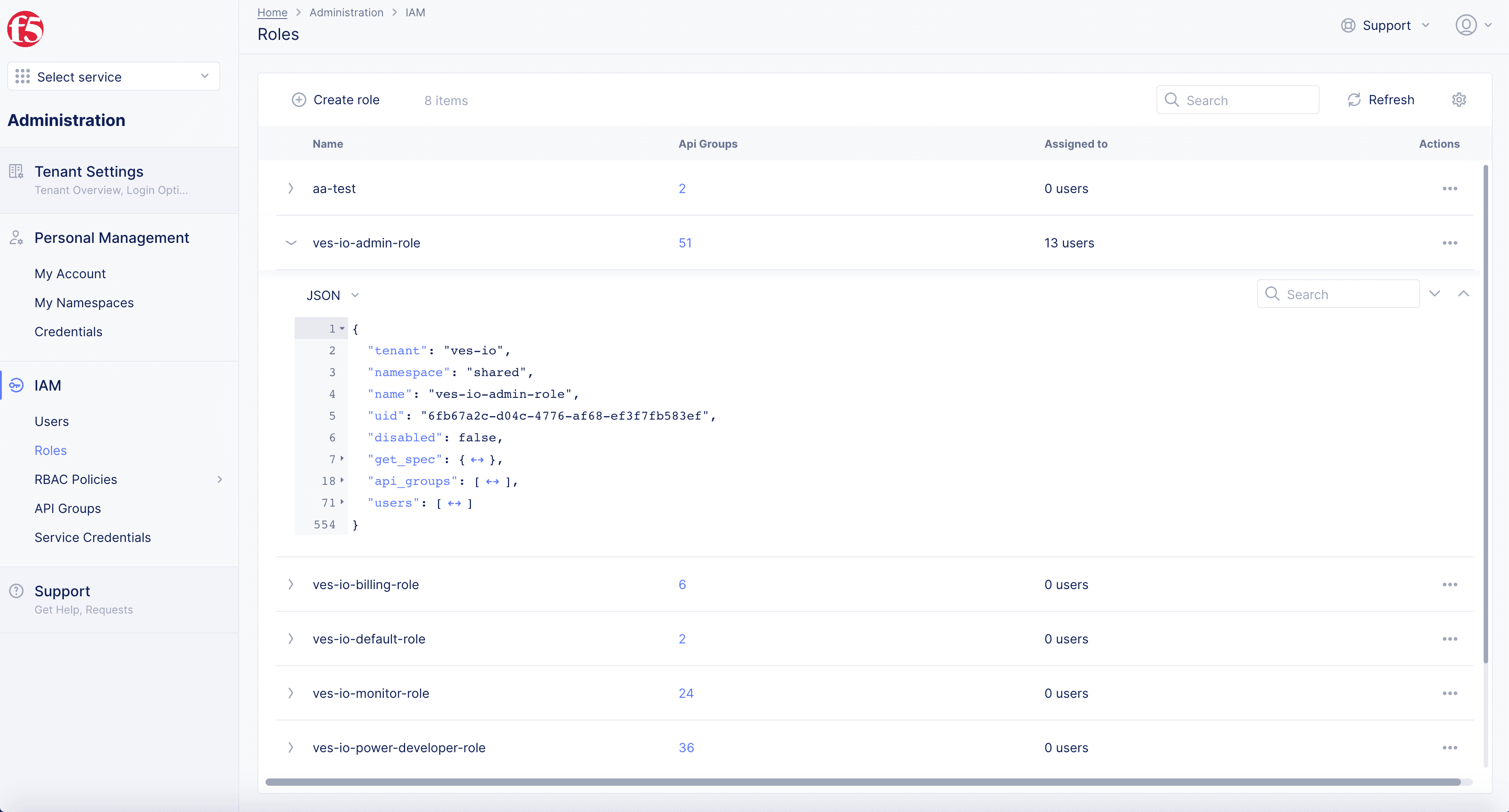

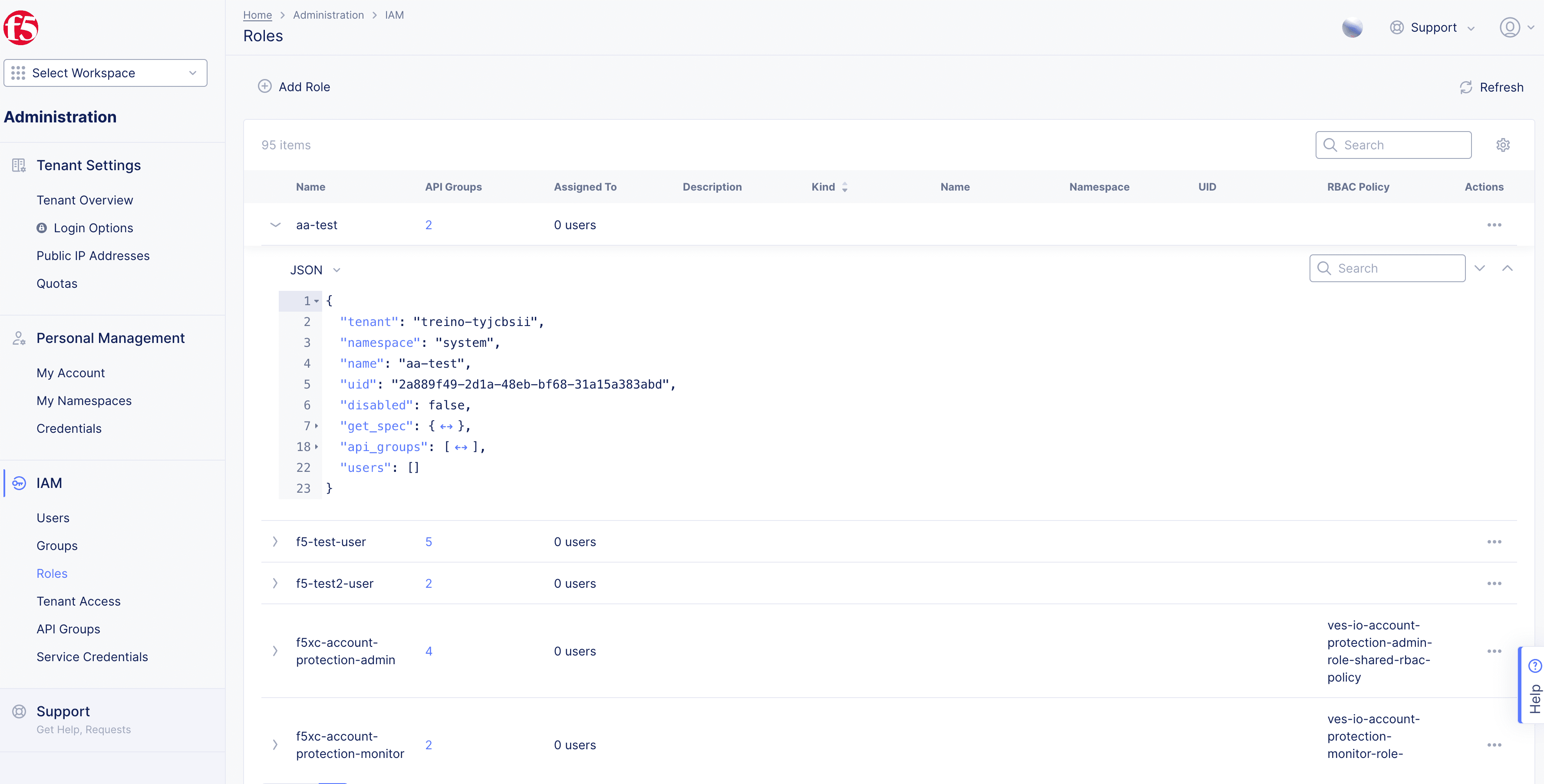

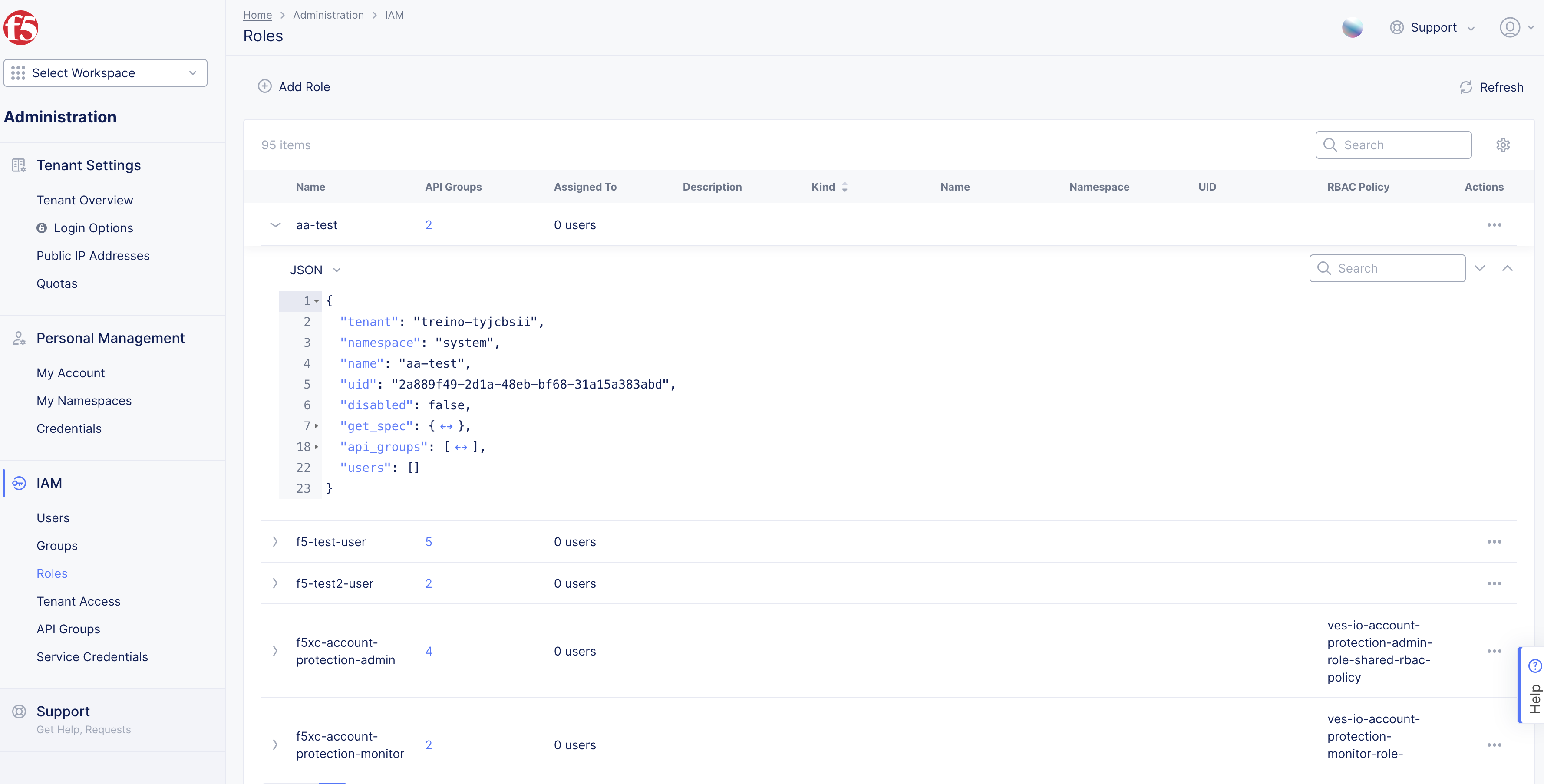

Figure: In-built RBAC Policy Rules
Note: The
api_groups
field in the displayed information shows the API groups associated with the rule.
Step 2: View API Groups.
-
Select
...
(ellipsis) icon, or the linked number underAPI Groups
column to view or edit. -
Select
>
for any group from the displayed list to view the group information in JSON format.

Figure: API Group Information
Note: The
elements
field in the displayed information shows the APIs associated with the group.
Step 3: View APIs Associated with API Group.
-
Select
...
(ellipsis) icon inActions
column. -
Select
Edit
.

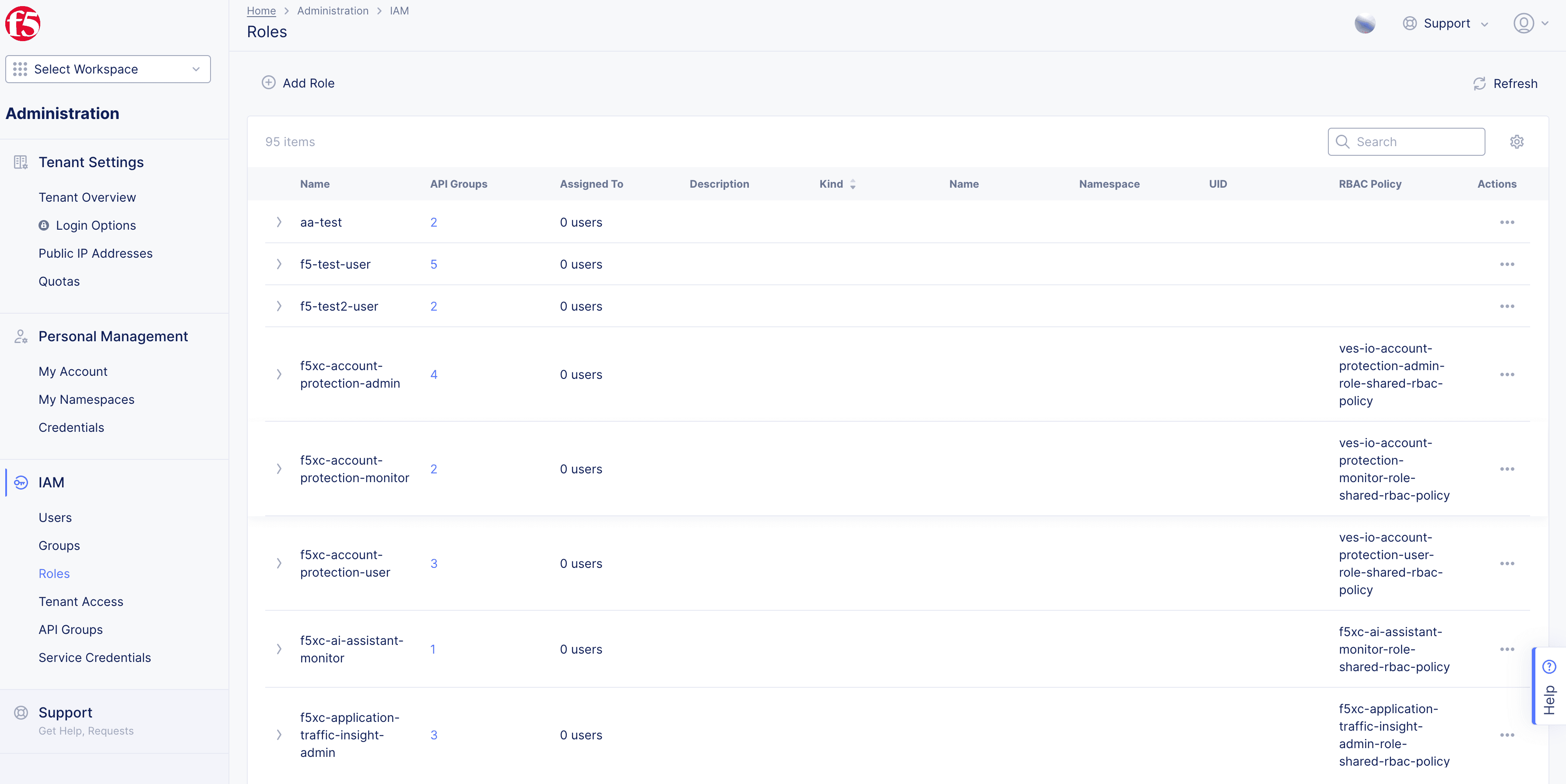

Figure: API Group List
- Select
Elements
column linked number to view APIs in another window.

Figure: API Group List
- Review API
Elements
in this window forPath Ranges
.

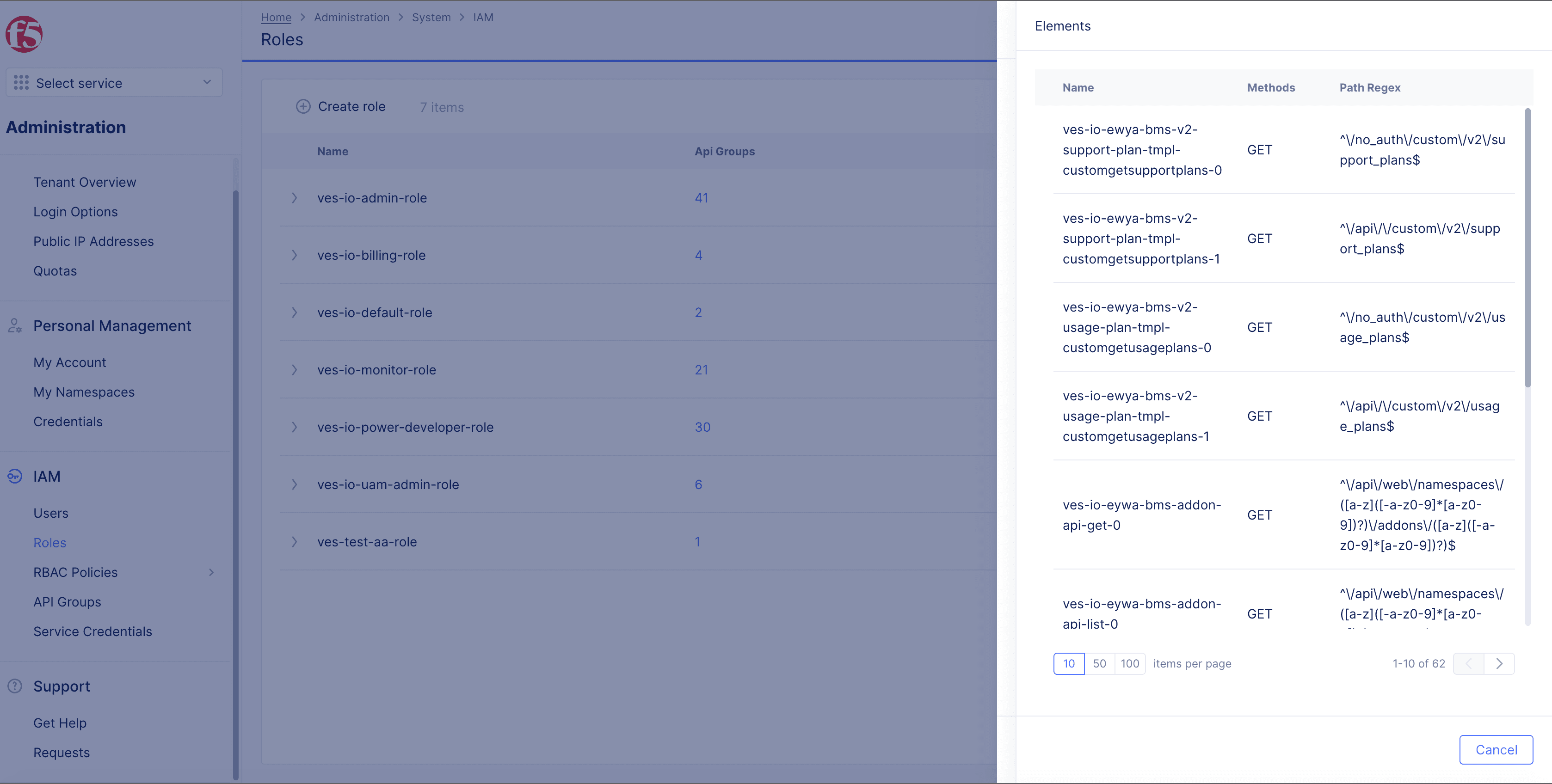

Figure: API Group Elements
Note: Roles are assigned to namespace,
Shared
applies to all services except system and application.System
andApplication
are restricted as they are management namespaces for development, SeCops, etc. and not everyone needs or is allowed to access these areas of the console.
Add Role
Follow these steps to add role and assign API groups to it:
Note: At least one API group must be assigned during role creation.
Step 1: Navigate to the Roles Configuration and Open Roles Creation Form.
-
On the
F5 Distributed Cloud Console
homepage, click theAdministration
box. -
From the left menu, select
IAM
. -
Select
Roles
>+ Add Role
.

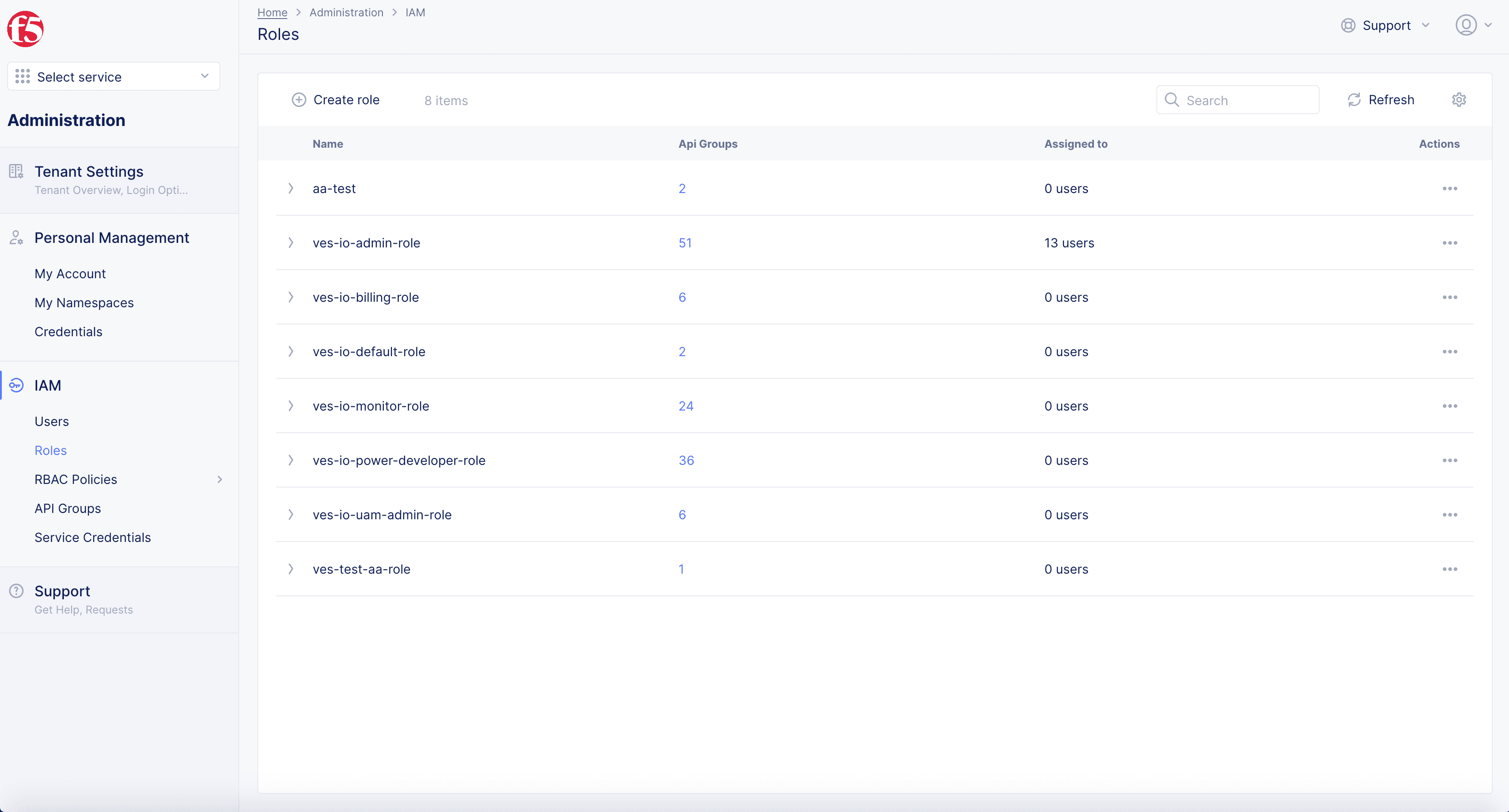

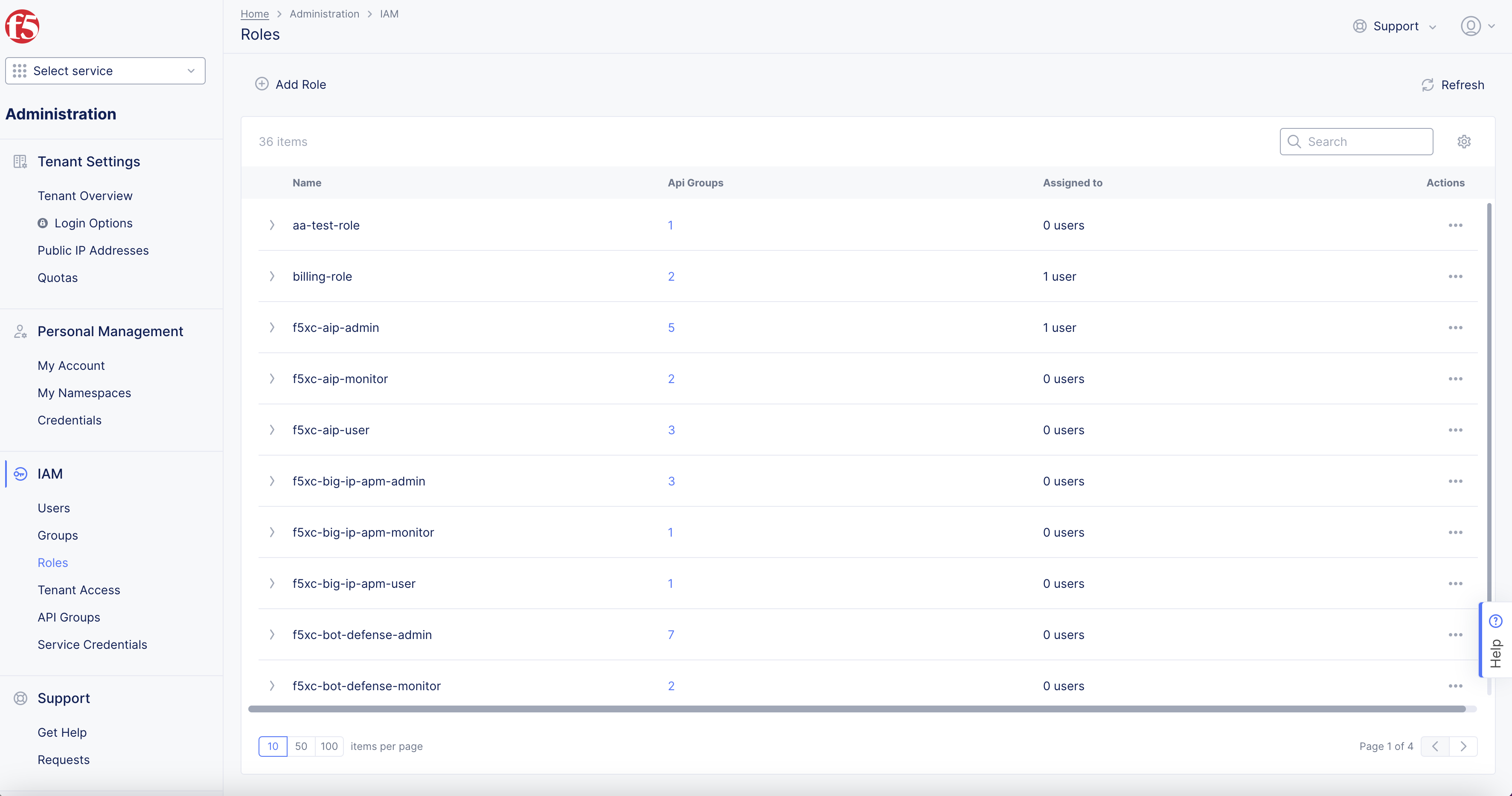

Figure: Navigate to Roles
Step 2: Select API Groups for the Role.
Role creation requires you to select API groups
.
- Enter
Name
in Role Name box in pop-up window.
Note: When naming your custom role, follow the
RFC 1035
naming convention. You can use lowercase letters (a-z), numbers (0-9), and hyphens (-). The first two characters MUST be lowercase letters (a-z). Example: aa-role2-k8s.
- Click
+ Allowed API Groups
.
Note: Roles are assigned to namespaces. The "Shared" namespace applies to all services except system and application namespaces. "System" and "Application" namespaces are restricted, as they are used for management purposes (e.g., development, SeCops), and access to these areas is not required or permitted for everyone.
- Select the
Allowed API Groups
by checking box.
Note: Adding objects to a namespace after role creation does not automatically grant role access, you must manually add it.
- Click
Save
button to assign the selected API groups to the role.
Note: Select the value under the
Elements
column to view the list of APIs that are part of the associated group.
Step 3: Add Additional Allowed API Groups
.
-
Select the
Allowed API Groups
by checking box. -
Select
Save
button to create the role.
Note: Role cannot be created without selecting
+ Allowed API Groups
.

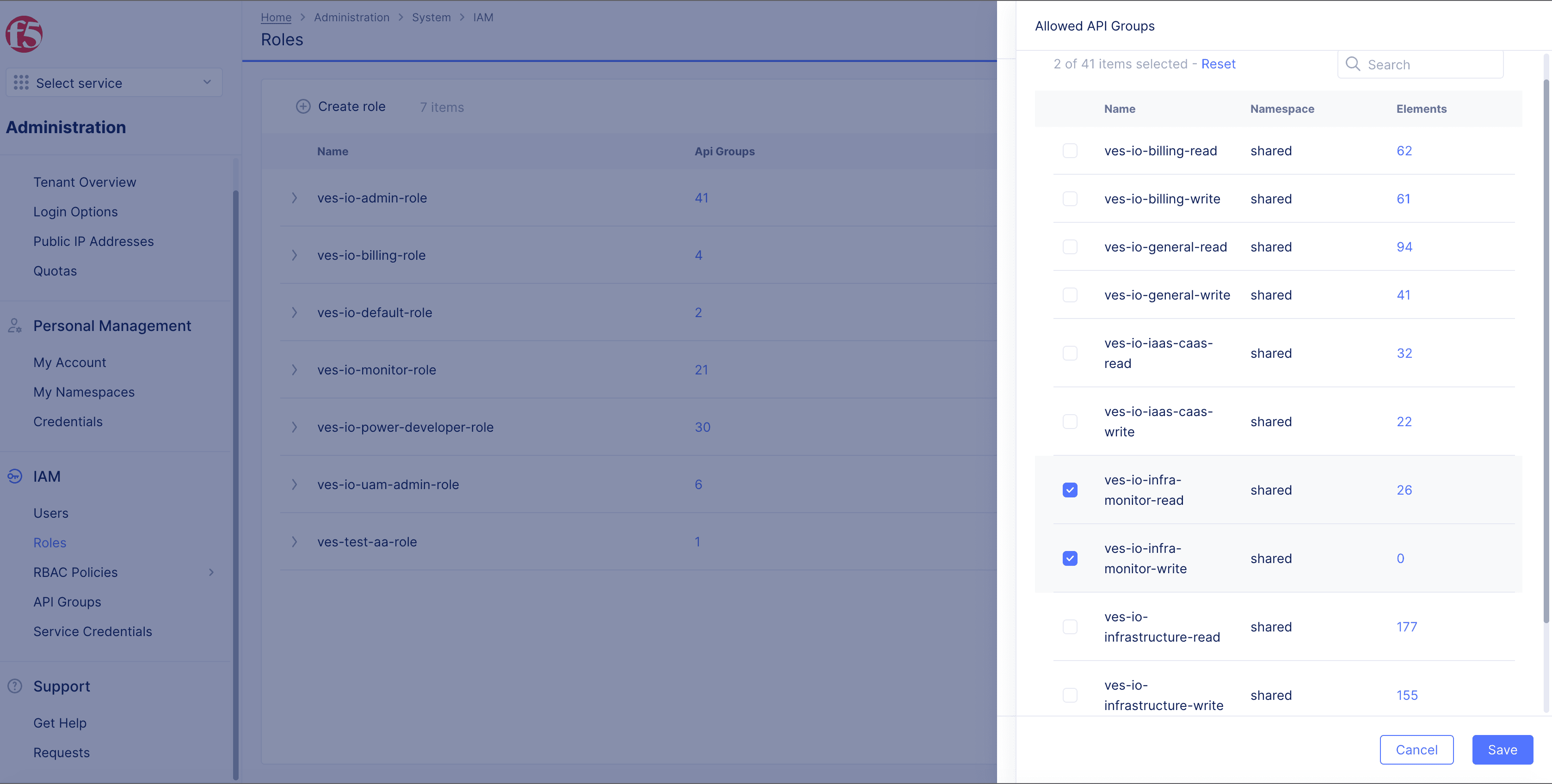

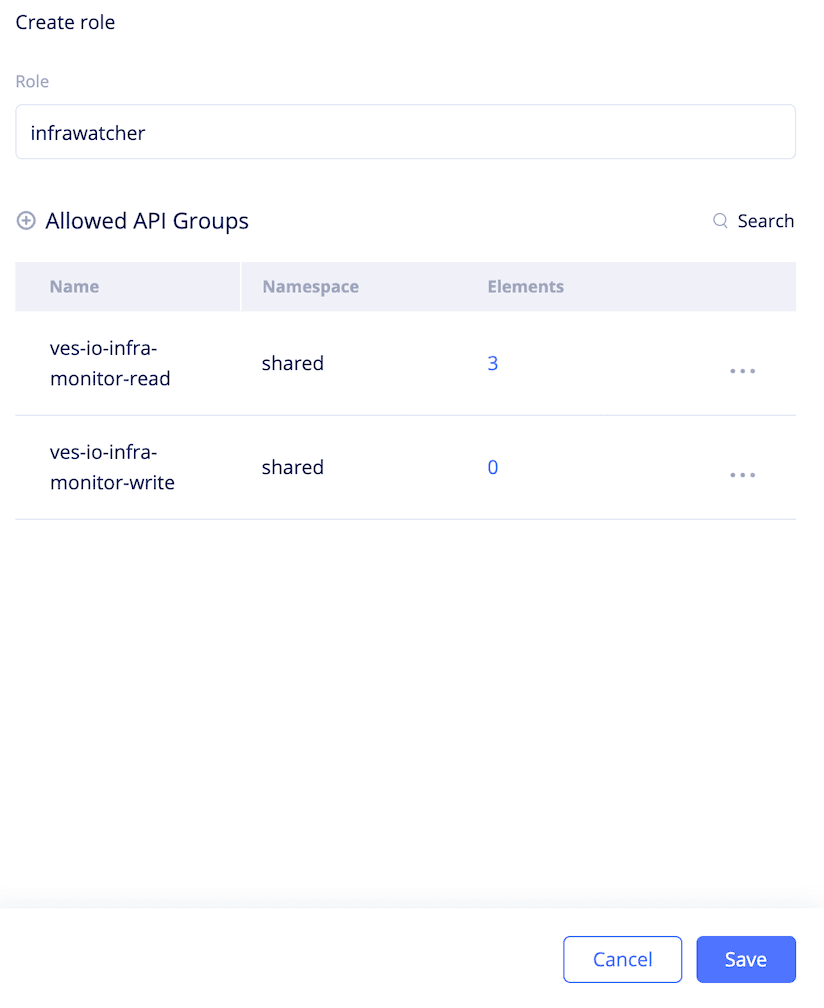

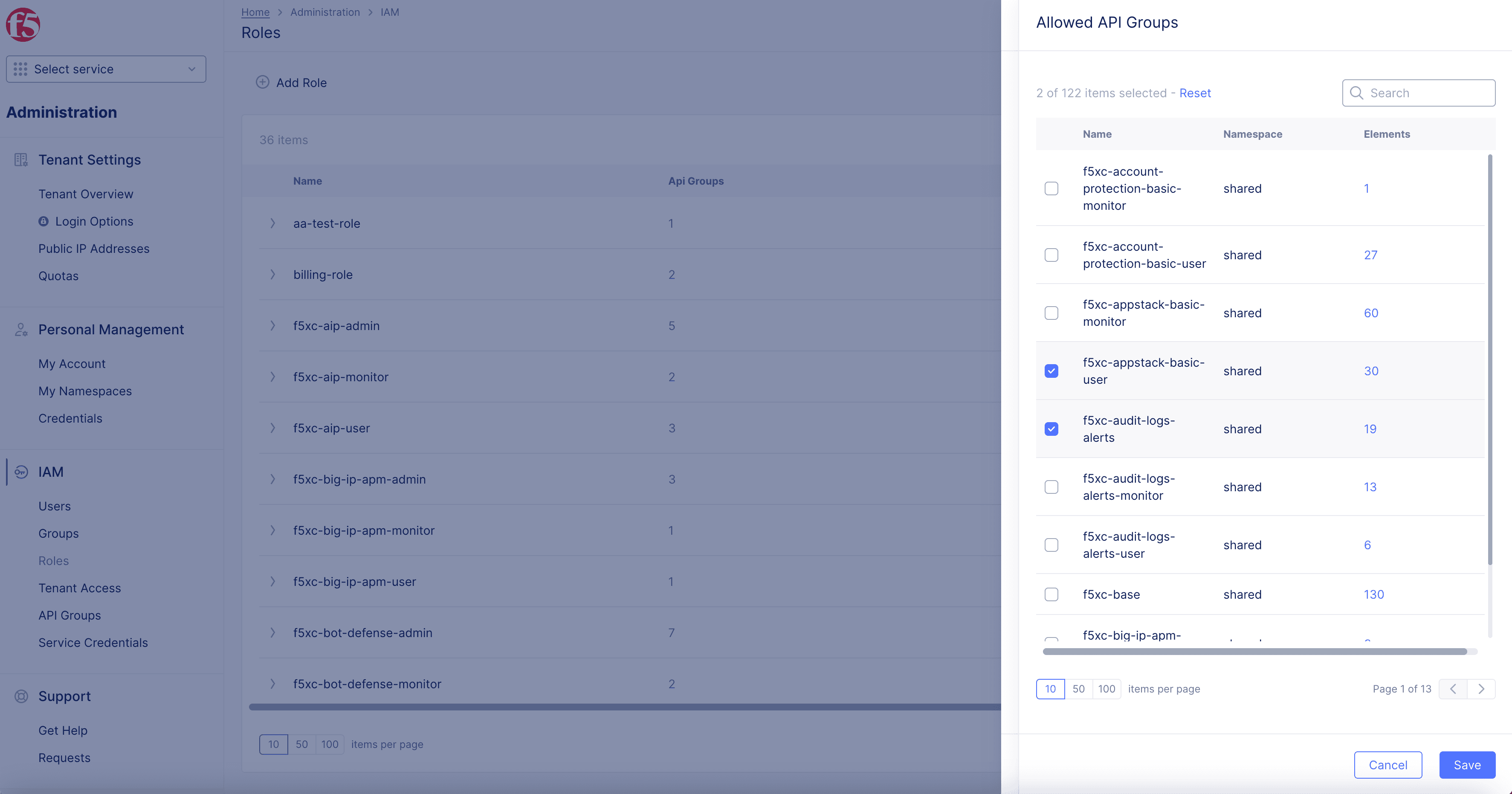

Figure: API Group Selection
Step 4: Add Additional Role Access.
Note: When you add objects to a namespace, role access is not granted automatically, you must assign it manually.
Editing a Role in Administration
:
-
Go to
IAM
>Roles
. -
Select the
Role
you want to edit. -
Click the ... (ellipsis) icon and choose the
Edit
option. -
Click the
+ Allowed API Groups
button. -
Check boxes of
Name
,Namespace
, andElements
rows that you want to grant access to for the role.
Note: Roles are assigned to namespaces. "Shared" applies to all services except for system and application namespaces. "System" and "Application" namespaces are restricted, as they are used for management purposes (e.g., development, SeCops), and not everyone requires or is allowed to access these areas of the console.
-
Click the
>
button to view more options on subsequent pages. -
Click
Save
button to update the role access.

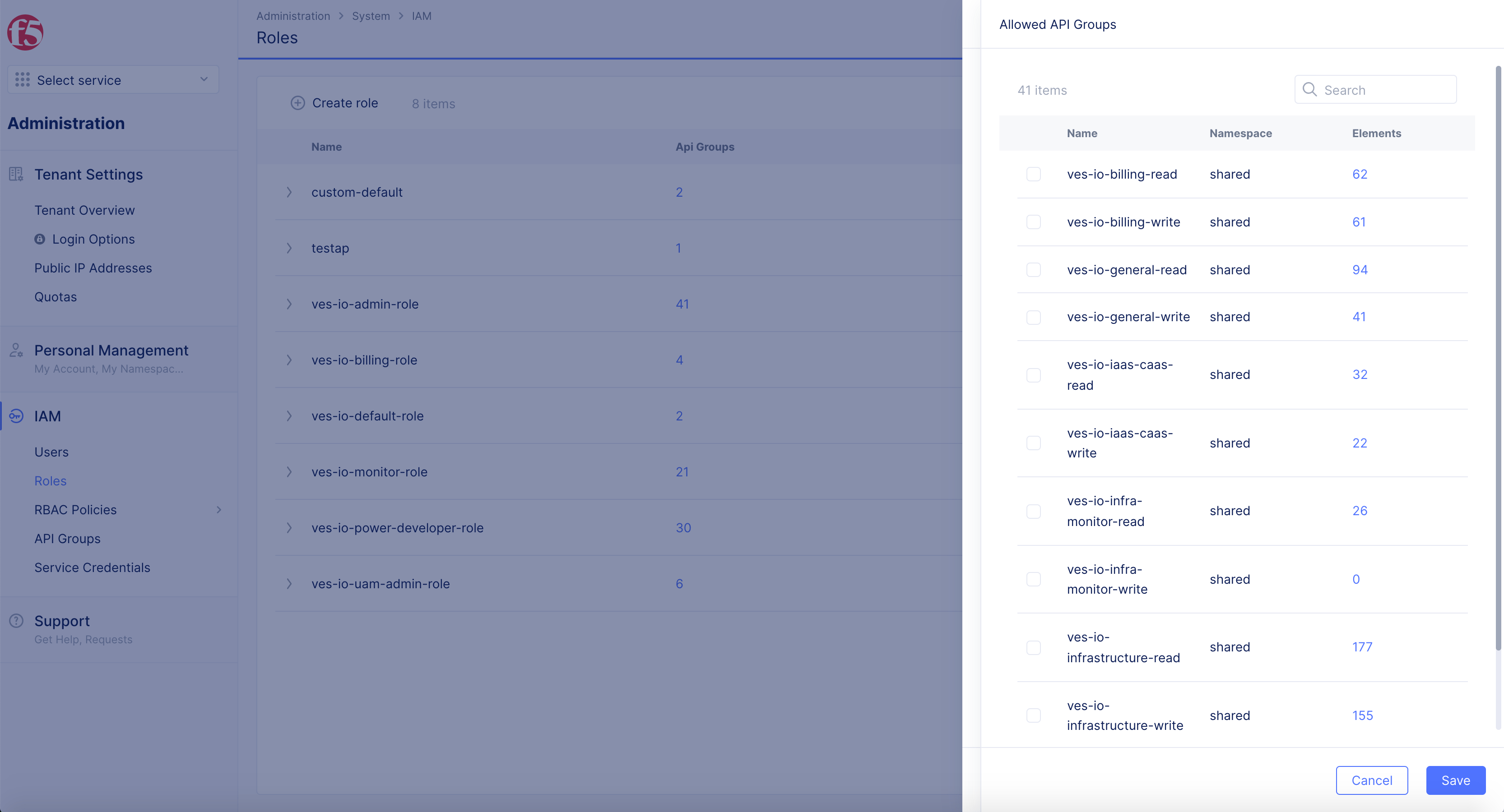

Figure: API Group Selection
Create Tenant-Level Role Policies
F5 Distributed Cloud Services provides the ability to control Console access through Role policies. Tenants can raise service request, and provide list of RBAC policies to apply to platform access.
Role policy rules are the same as service policy rules. For example, tenant can request to enable a rule to allow or deny access based on parameters such as source IP address, ASN, country, etc. See Service Policy API for more information.
When this tenant-level role policy is enabled, it is prioritized over any user-defined and shared role policies.
See Raise Support Request for instructions on how to raise support requests.
