Configure Client-Side Defense

Published April 5, 2023 | Last modified April 13, 2026

This guide provides instructions about how to enable Client-Side Defense (CSD) and how to apply it to your web applications using F5 Distributed Cloud Console. For more information about CSD, see About Client-Side Defense.

Prerequisites

A valid F5 Distributed Cloud Console Account. If you do not have an account, see Getting Started with Distributed Cloud Console.

Enable CSD

To enable CSD on Distributed Cloud Console, do the following:

From the Distributed Cloud Console homepage, select Client-Side Defense.
In the Client-Side Defense screen that appears, select Enable Client-Side Defense.

CSD is now enabled and ready for use.

Add a domain for CSD protection

After you enable CSD in the Distributed Cloud Console, add the root domain for all domains where you want to apply CSD protection:

Note: You can add up to 100 domains per namespace. If you need to add additional domains, contact your F5 account team.

In CSD, go to Manage > Configuration.
Select Add domain to protect. The Domain to protect screen appears.
In the Domain to protect screen, enter the root domain you want to protect and select Add Domain to Protect.

The domain you added now appears in the list of domains to protect.

Injecting the CSD JS on your web pages

After you add the domains on which to apply CSD protection, you must inject the CSD JavaScript on the web pages in the domain. F5 recommends injecting the CSD JavaScript on all web pages in the domain to maximize CSD protection.

Note: You can also use BIG-IP to inject the CSD JavaScript in your website pages. For information, see https://techdocs.f5.com/en-us/bigip-17-1-0/big-ip-dcs-client-side-defense-implementation.html.

To inject the CSD JavaScript on web pages:

In the CSD dashboard, go to Configuration.
Select How to Inject JS. The How to Inject JS screen appears.
Follow the instructions for injecting the CSD JavaScript in the How to Inject JS screen.

Verifying your email on the Alert Receiver

When you enable CSD, CSD automatically creates an Alert Receiver using the email address you entered for your account on Distributed Cloud Console. CSD also automatically creates an Alert Policy and adds a CSD alerts group to this policy. To ensure that you receive alerts when CSD detects suspicious activity, you need to verify your email on the Alert Receiver.

To verify your email on the Alert Receiver:

In the System namespace, in the left navigation pane, go to Manage > Alerts Management > Alert Receivers.
In the Alert Receivers screen, find the client-side-defense-receiver row and in its Actions column select the icon with three dots. A pop-up menu appears.
Select Verify Email, and then select Send email to send the verification email.
After you receive the email, return to the Alert Receivers screen.
Find the client-side-defense-receiver row and in its Actions column select the icon with three dots. A pop-up window appears.
Select Enter verification code, enter the verification from the email, and then select Verify receiver.

There is no CSD-specific alert receiver configuration. For information about how to create and configure Alert Receivers and Alert Policies, see Alerts - Email & SMS.

Alerts Reference

CSD JavaScript monitors and collects the payload on end-user browsers. The payload is sent to F5 for threat analysis and evaluation. You can configure Distributed Cloud to notify you about the following alerts.

ClientSideDefenseSuspiciousDomain

Sample Scenario: Script exfiltrates data to two domains: magecart[.]net and googleanalytics[.]com.
Alerting Mechanism: Payload received is processed and evaluated against F5 proprietary domain classification machine learning service that categorizes magecart[.]net as high risk. An alert is visible on the dashboard (alerts landing page). Note that the system does not generate alerts for high-risk domains that are already part of a mitigation list or allow list.

ClientSideDefenseSensitiveFieldRead

Sample Scenario: Script reads two fields: credit_card and random_field.
Alerting Mechanism: Payload received is processed and evaluated against an F5 proprietary field classification algorithm that categorizes random_field as non-sensitive and credit_card field as sensitive. An alert is generated and can be accessed from the alerts landing page. Note that once a field is classified as sensitive, the system does not generate a new alert for the remaining lifecycle of the script, regardless of how many times it reads the same field. However, if a new field is identified, the system generates a new alert.

Security Header Monitoring Process (ClientSideDefenseHttpHeaderCompromised, ClientSideDefenseHttpHeaderModified)

CSD tracks and collects security header information directly from your web server.

Data Collection and Processing
- Source: Data collection occurs across multiple browser sessions belonging to different end-users from the same customer.
- Cycles: This collected data is processed in discrete, sequential processing cycles (or periods).
Alerting Mechanism
- Criteria: Criteria for CSD to issue a "modified" or "compromised" alert is based on a continuous comparison process.
- Baseline Establishment: In any given cycle, the collected and persisted security header data is established as the current baseline.
Comparison and Detection: In the subsequent cycle, the newly received data is compared against this established baseline.
Dynamic Baseline: The baseline is dynamic; it continuously "moves ahead." The data from the current cycle becomes the new baseline for the next comparison, ensuring continuous monitoring against the most recent state.

VesClientSideDefenseNewScriptsDetected

Sample Scenario: CSD JS tracks a webpage called Webpage abc[.]com for a period of time. A new script is now actively executing code (either legitimate, for example, a customer deployed a new webpage version to production, or injected script by extensions, or other CDN compromised supply chain attack).
Alerting Mechanism: While processing the payload in next cycle, the system identifies this new behavior and raises an alert, which you can access in the alerts landing page.

VesClientSideDefenseScriptNetworkBehaviorChanged

Sample Scenario: A script that is either active or inactive on a webpage starts exfiltrating data to the domain google[.]com.
Alerting Mechanism: This alert is only generated if the script changes its course of action and starts to exfiltrate data to external domains (regardless of the domain's risk level). Note that the system generates an alert only if it finds that the script previously had zero recorded network interactions or exfiltrations and only recently began exfiltrating data. This alert is never generated again for the same script, even if its network interaction behavior changes subsequently (for example, network interaction count from 1 to 5, 5 to 10, 10 to 5, and so on).

VesClientSideDefenseScriptFormFieldReadBehaviorChanged

Sample Scenario: A script that is either active or inactive on a webpage starts reading form fields like credit_card, random_fields, and so on.
Alerting Mechanism: This alert is only generated if the script changes its course of action and starts reading form fields (regardless of the field sensitivity classification). Note that the system generates an alert only if it finds that the script previously had zero recorded form field reads, and only recently began reading data. This alert is never generated again for the same script, even if its field reading behavior changes subsequently (for example, form field read count from 1 to 5, 5 to 10, 10 to 5, and so on).

Testing the JS injection on your web pages

After you add domains for CSD protection and inject the CSD JavaScript on your web pages, you can test if the JavaScript injection was successful on a web page. Testing for the CSD JavaScript injection is not required, but F5 recommends performing this test to verify that your web pages are receiving CSD protection.

To test CSD JavaScript injection:

In CSD, go to Manage > Configuration.
Find the domain in the list that contains the web page that you want to test, and select Test JS Injection. The Test JS Injection screen appears.
In the Test JS Injection screen, paste the URL of the web page that you want to test and select Test JS Injection.

When the test finishes, the CSD dashboard displays a confirmation message indicating whether or not the CSD JavaScript was detected on the web page.

Using the CSD dashboard

Monitoring > Dashboard

The CSD Monitoring Dashboard page displays the suspicious network interactions with additional information for deciding whether to mitigate or allow a suspicious domain. When a web page with CSD protection is loaded on the end-user’s browser, scripts running on that webpage interact with other domains. The Suspicious Domains list displays a list of the domains that those scripts interact with and which CSD detected to be potentially malicious.

Monitoring > Script List

For your reference, Client-Side Defense lists all discovered JavaScript scripts for a page. The list provides an overview of which scripts interact with the different webpage elements. The Script List displays up to 100 location results.

To view the list, in the left navigation menu go to Monitoring > Script List.

Select a script to see the following information:

Script behaviors (new or otherwise) over time.
All network interactions for the script.
All form fields read by this script, up to 50 locations.

For information about script objects, see The Script Object - Detailed Information on Script Behavior.

Note that script behavior is not currently represented in the dashboard. Use the "Status" column on this page to track scripts that display suspicious behaviors. Scripts have one of the following statuses:

NA - No Action Needed: CSD did not find anything suspicious with this script.
Resolved - No Action Needed: CSD found some suspicious behaviors with this script that a user has already taken action on.
AN - Action Needed: CSD found some suspicious behaviors with the script that needs your attention.

To assist in demonstrating compliance with the Payment Card Industry Data Security Standard (PCI DSS) v4.0 Requirement 6.4.3, users can add comments containing written justifications for the specific utility of each script in the script list.

To add a script justification:

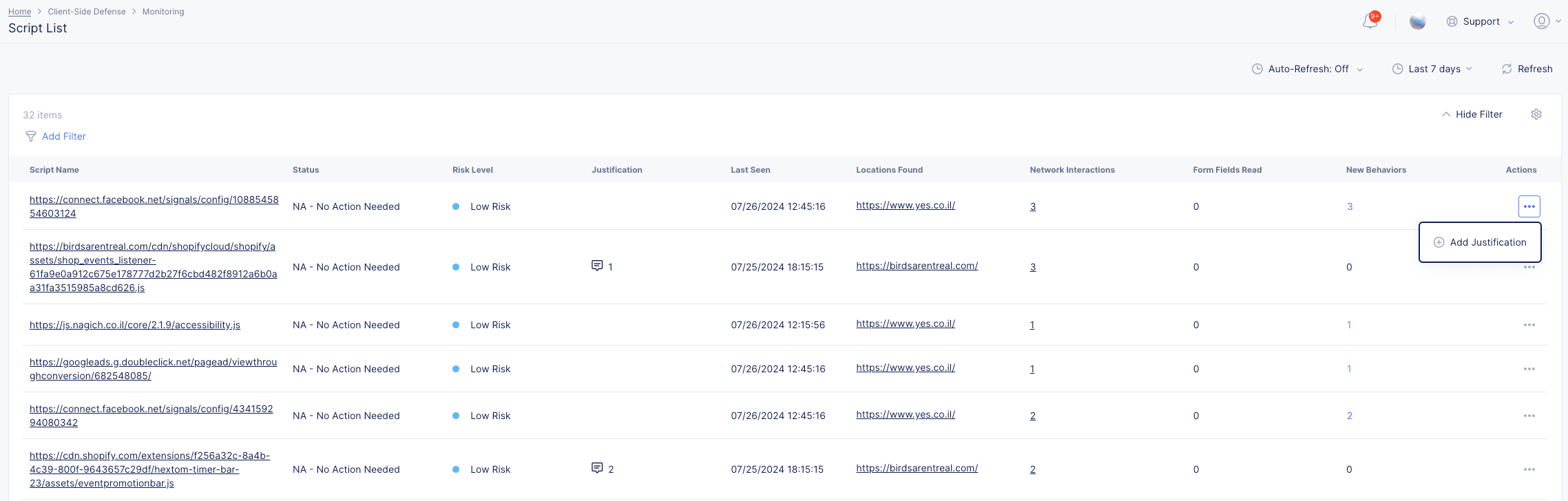

Go to the row of the script you would like to add a justification for and in its Actions column select the icon with three dots. A pop-up menu appears.
Select Add Justification
Figure: Add Justification Button
Add a justification in the text box and select Add
Figure: Justification Form Field

Monitoring > Network

The CSD Monitoring Network page displays several tabs for displaying holistic network data, which can assist you when deciding whether to mitigate or allow a suspicious domain:

All Domains: When a web page with CSD protection is loaded, scripts running on that web page interact with other domains. The All Domains list displays a list of the domains that those scripts interact with.
Mitigate List: Displays a list of domains that the user has assigned for mitigation. When a domain is assigned for mitigation, CSD blocks that domain and it cannot be accessed by any script running on the end-user's browser when accessing a CSD protected web page.
Allow List: Displays a list of domains that the user has decided don't need mitigation and are allowed free access.

The Network page displays up to 50 location results.

Monitoring > Form Fields

The CSD Monitoring Form Fields page displays a list of the form fields in your site that were read by scripts during the time period you select.

Form Field: The name of the form field.
Last Read Time: The last time the field was read by a script.
First Read Time: The first time the field was read by a script.
Associated Scripts: The scripts that read the field. Click to see the list of specific scripts.
Locations Found: The URLs where the fields are located. Click to see the list of specific locations.
Analysis: Whether the field is Sensitive or Not Sensitive and whether that was determined by the user or by the system.
Actions: Optionally, change the field analysis to Sensitive or Not Sensitive.

Manage > Configuration

Use the Configuration page to configure your web application for CSD protection. In CSD, select Manage > Configuration.

The page displays a list of your root domains that are configured for CSD protection. You can perform the following tasks:

Add domains for CSD protection. Select Add Domain to Protect.
Display instructions for injecting the CSD JS on web pages in a domain. Select How to Inject JS.
Test whether CSD successfully injects JS in a specific web page. For information, see Testing the JS injection on your web pages.
Schedule a CSD training session. Select Schedule a session.

Viewing suspicious domains

When CSD detects suspicious activity on a domain that has been configured for CSD protection, the user is alerted and that domain is added to the dashboard.

Filtering suspicious domains by location

You can filter the Suspicious Domains list according to a specific location or locations where CSD detected suspicious activity.

To filter the Suspicious Domains list by location:

In the upper-right of the page, select Select Page. A pop-up list appears.
Select one or more locations, and then select Apply.

The list now displays only those domains containing the locations you selected.

Adding a domain to the Mitigate List or Allow List

To add a domain to the Mitigate List or Allow List:

From the Client-Side Defense navigation panel, select Monitoring > Network.
Go to the Suspicious Domains list or All Domains list.
Go to the row for the relevant domain. In the Actions column, select the Action menu (...). A pop-up menu appears.
Select Add to Allow List/Add to Mitigate List.

Alternatively, you can add a domain directly from the Mitigation List or Allow List as follows:

In the Mitigation List or Allow List, select Add domain. A new screen appears.
Enter the domain name and then select Add Mitigated Domain or Add Allowed Domain.

After you add a domain to the Mitigate List or Allow List, you can delete it from the list by selecting the Action menu (...) in the Actions column, and then selecting Delete.

Viewing domain details

From the Suspicious Domains list or All Domains list, you can view the following domain information by selecting the domain from the list:

Reasons why this domain may be at risk
Risk score
Web pages on this domain with CSD protection
Scripts that are potentially networking with the domain

The Script Object - Detailed Information on Script Behavior

The three main components of a script object are displayed on the following tabs:

Overview: Captures behavior of the script over time.

It includes the following information:

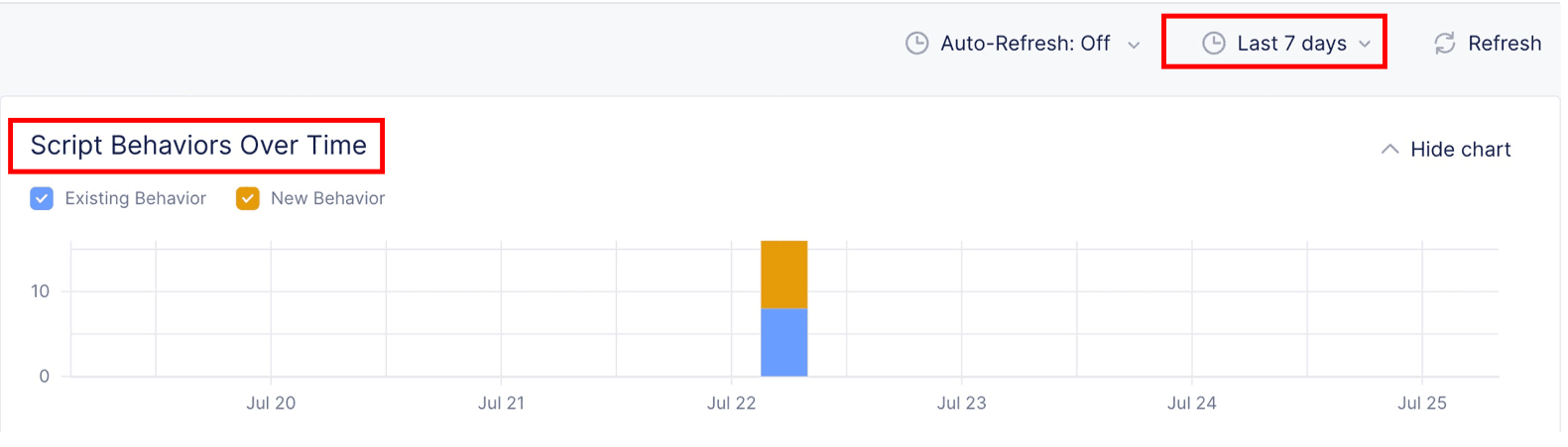

- Script Behaviors Over Time: A graphical representation of changes to the behavior of a script over time. You can configure the time frame and behaviors displayed in the chart.

  Figure: Script Behaviors Over Time
- New Behaviors Pane: Lists all new behaviors of this script during the selected time interval.
- All Behaviors Pane: Lists all behaviors of this script during the selected time interval.
Network: Captures all network interactions of a specific script.
Form Fields: Lists all form fields read by a specific script.

Note: To take action on the behaviors of the script, navigate to either the Network or Form Fields tab.Select either the Mitigation or Allow action. Based on the action you select, the status of the script changes to reflect whether the suspicious behavior is resolved.

Modifying the CSD JS for asynchronous loading

By default, the CSD JavaScript is configured to load synchronously and F5 highly recommends against changing this configuration. However, if there is a strong need, you can modify the CSD JavaScript to load asynchronously. To modify the CSD JavaScript for asynchronous loading, add async defer to the beginning of the script, as follows:

Change: <script src="https://us.gimp.zeronaught.com/js/example.js"></script>

To: <script async defer src="https://us.gimp.zeronaught.com/js/example.js"></script>

The CSD JavaScript should always be the first JavaScript or script to load on the web page to ensure that the CSD JavaScript can detect any malicious scripts running on the web page.

Script versioning by name change

When you release a new version of a script with an updated name and path, you receive redundant alerts for the updated script. To stop the redundant alerts, contact F5 Support for information about how to define regex expressions that represent your script.

Configure Client-Side Defense in Web App & API Protection

You can optionally enable and configure Client-Side Defense on one or more HTTP load balancers that you have configured in the F5 Distributed Cloud Console in either Web App & API Protection or Multi-Cloud App Connect.

Complete the following tasks to configure Client-Side Defense on an HTTP load balancer:

In Client-Side Defense, add the root domain for all the domains that you want to protect.
Enable Client-Side Defense on each HTTP load balancer on which you want to configure Client-Side Defense.
Configure the Client-Side Defense Policy on each HTTP load balancer on which you want to configure Client-Side Defense, which controls how you want Client-Side Defense to inject JavaScript tags in the HTTP pages in your application.

Client-Side Defense inserts JavaScript in your application to detect network requests and form field reads by malicious scripts that may attempt to exfiltrate PII data.

Before you Begin:

You must purchase Client-Side Defense. Contact your F5 Account Representative for assistance.
You must have an active F5 Distributed Cloud account. If you do not have an account, see Getting Started with Distributed Cloud Console.

Add a Root Domain to Protect with Client-Side Defense

Add the root domain for all domains you want to protect with Client-Side Defense.

From the Distributed Cloud Console Homepage, select Client-Side Defense.
From the navigation menu, select Manage > Configuration and then select Add Domain to Protect.
In the Root Domain field, enter the domain you want to protect. This should be the root of the pages where you inject JavaScript. Then select Add Domain to Protect to save the domain.

Figure: Protect a Root Domain

Enable Client-Side Defense on an HTTP Load Balancer

Enable and configure Client-Side Defense on one or more HTTP load balancers in Web App & API Protection.

Important: You must add the root domain you want to protect in Client-Side Defense before you can configure Client-Side Defense on your HTTP load balancer.

From the Distributed Cloud Console Homepage, select Web App & API Protection.
From the navigation menu, confirm that you selected the correct namespace.
Select Manage > Load Balancers > HTTP Load Balancers.
From the Actions column, select the Action (…) menu next to the load balancer where you want to configure Client-Side Defense and then select Manage Configuration.
Select Edit Configuration and then select Client-Side Defense.
From the Client-Side Defense drop-down menu, select Enable.
